Home >> Yugo >> 1992 >> Yugo L4-1300cc 1.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Specifications

Coolant Temperature Sensor/Switch (For Computer): Specifications

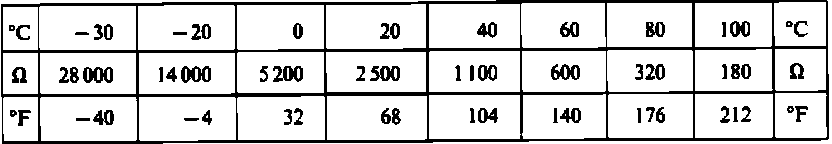

Fig. 8 Intake Air & Coolant Temperature Sensor Resistances:
