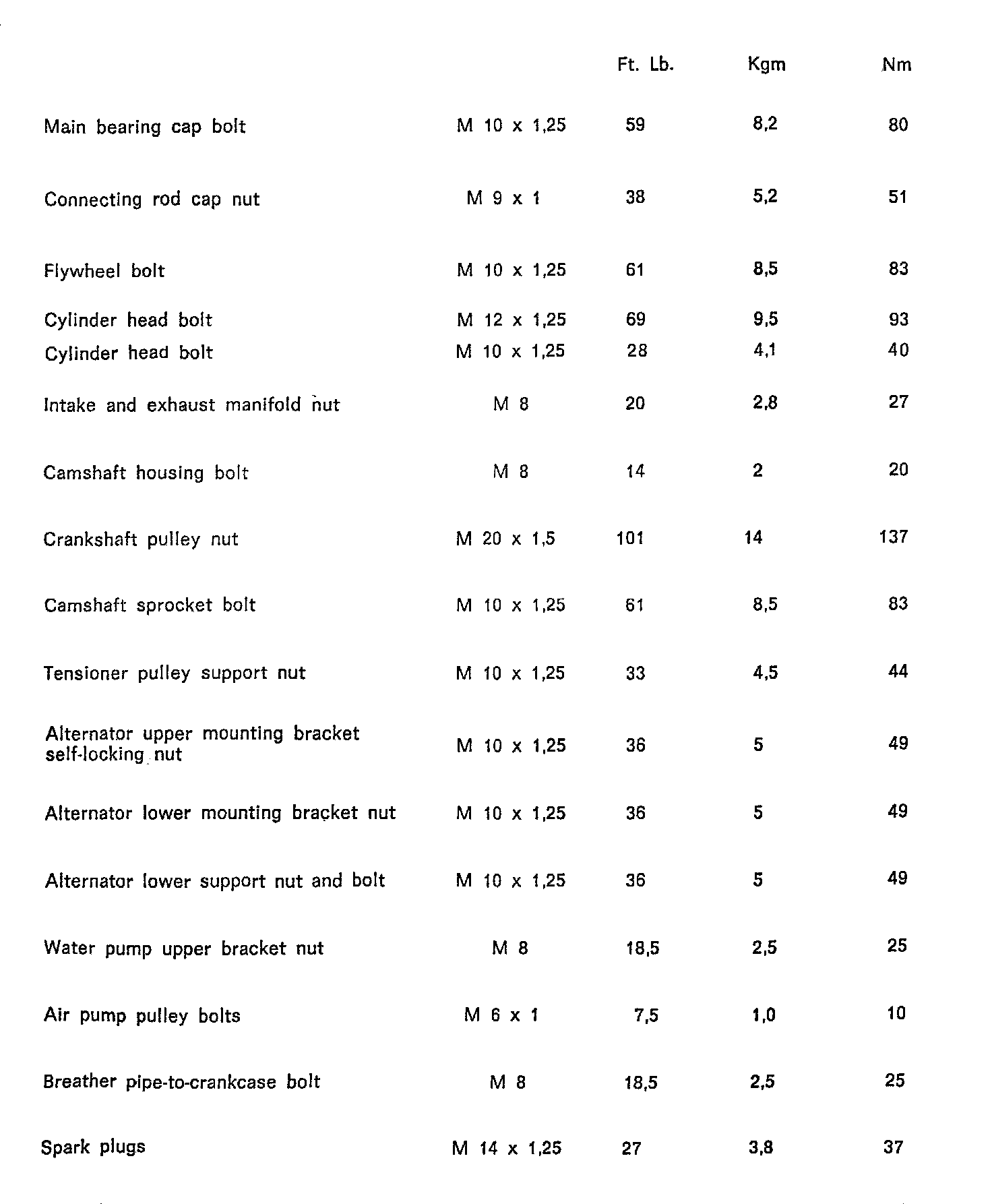

Engine Tightening Specification

Engine Tightening Specification





Cylinder Head Tightening Specification

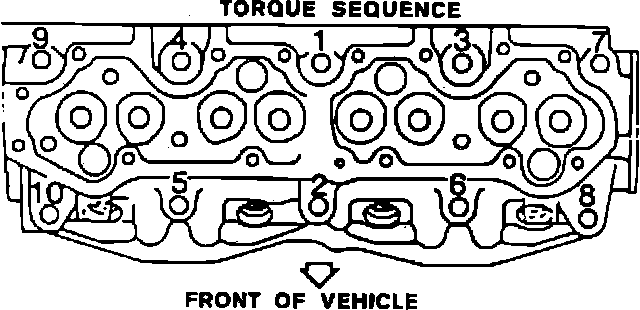

Fig. 4 Cylinder Head Bolt Tightening Sequence:

Tighten cylinder head bolts and nuts in sequence shown in Fig. 4. as follows:

a. First step, torque to approximately 15 ft. lbs.

b. Second step, torque to 30 ft. lbs.
