Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

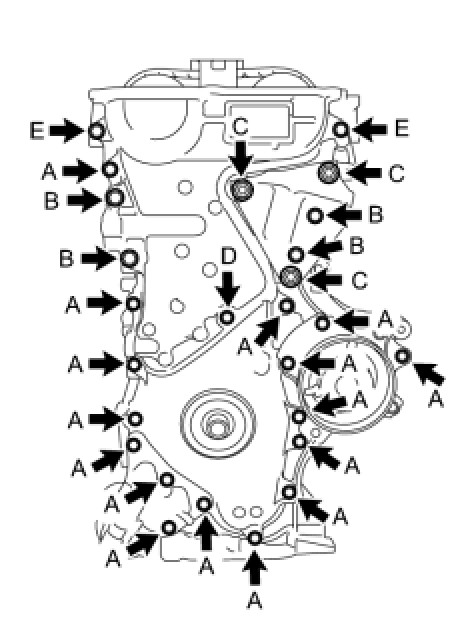

Temporarily install the timing chain cover sub-assembly with the 19 bolts.

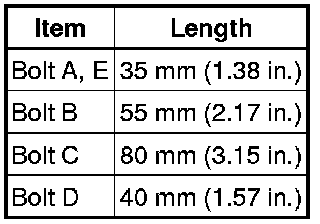

Bolt Length

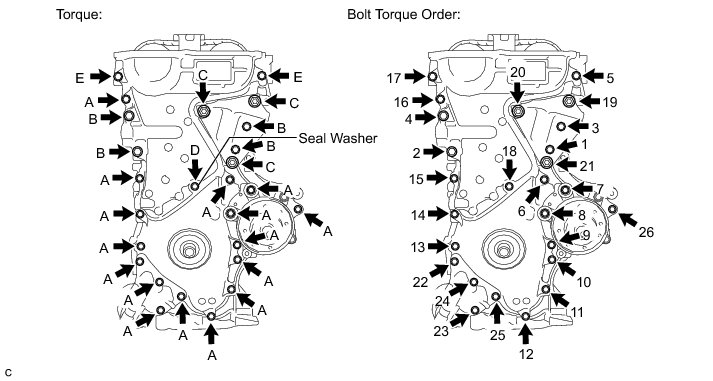

Fully tighten the timing chain cover sub-assembly with the 26 bolts as shown in the illustration.






Bolt A, E - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)

Bolt B, C - Torque 51 Nm (520 kgf-cm, 37 ft-lbf)

Bolt D - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
