Timing Component Alignment Marks: Locations

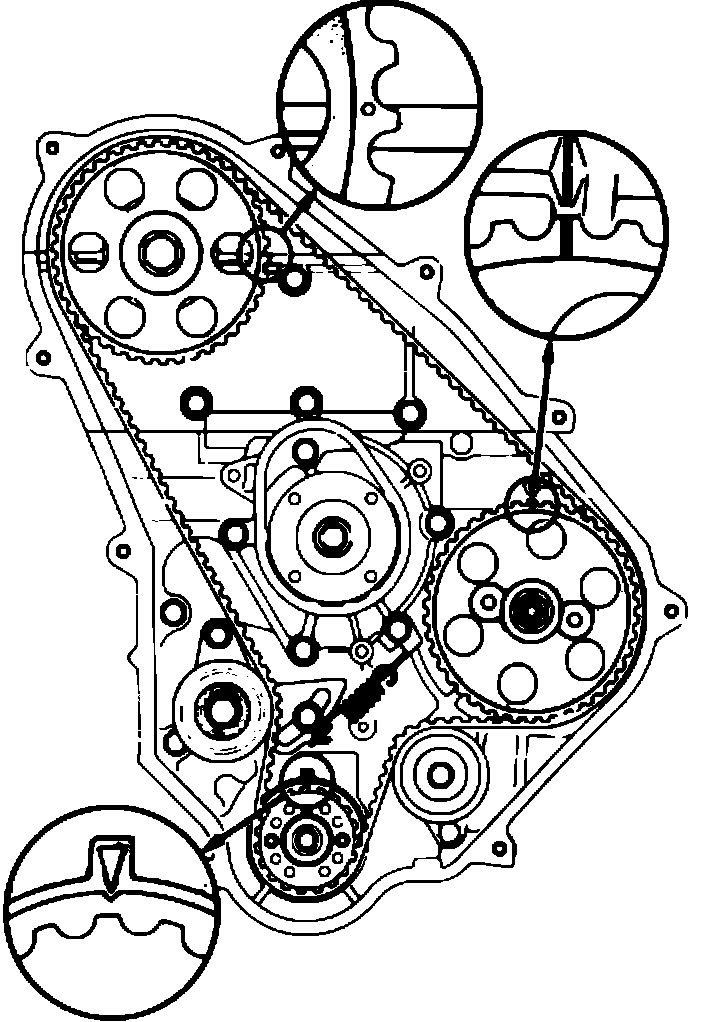

Fig. 13 Aligning timing marks on injection pump drive pulley, camshaft & crankshaft timing sprockets:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information: Service and Repair
