lemon-mirror
:
Home
>>
Suzuki
>>
2012
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment
Engine Compartment
A: Battery Cable / C: Engine Harness

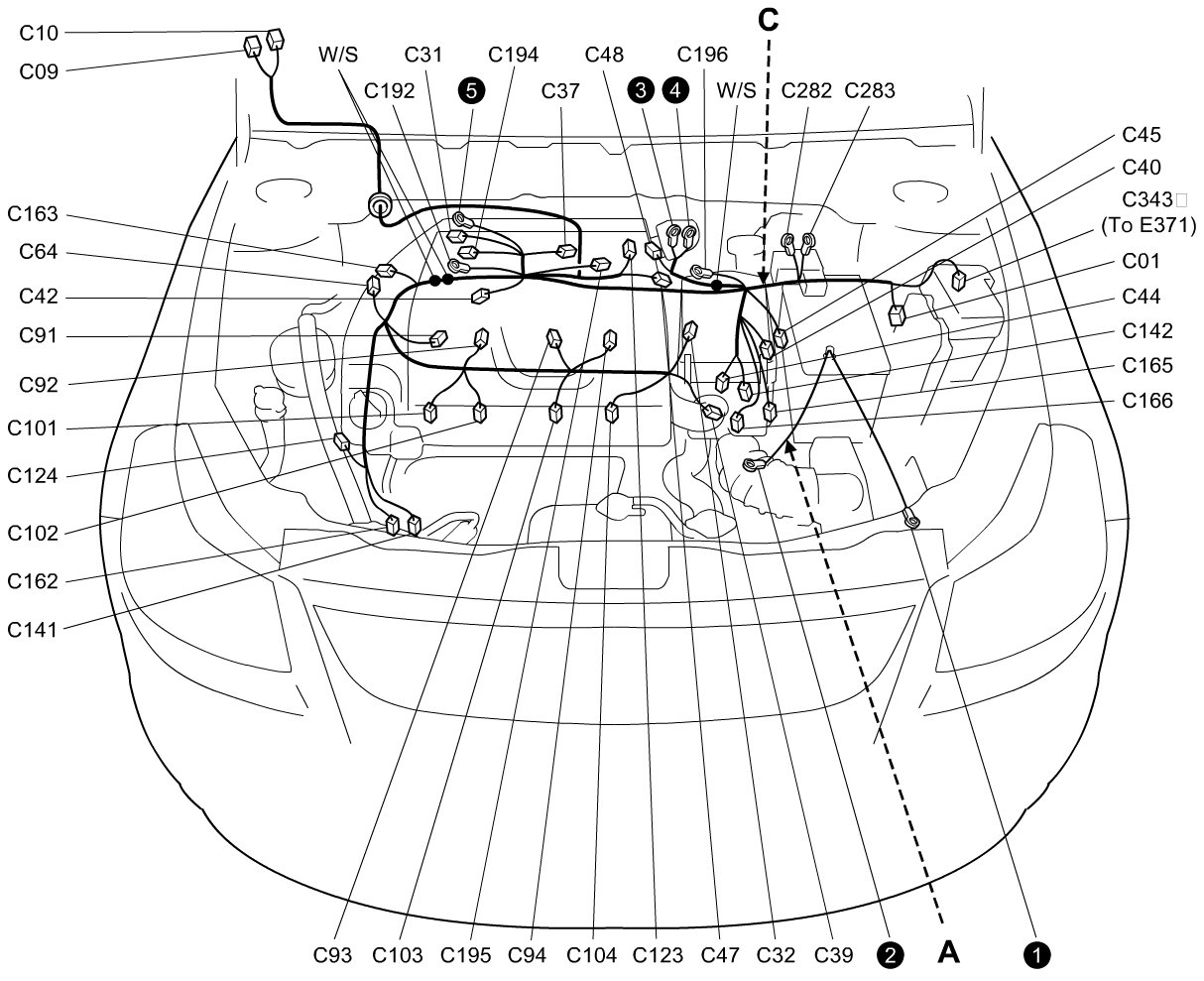

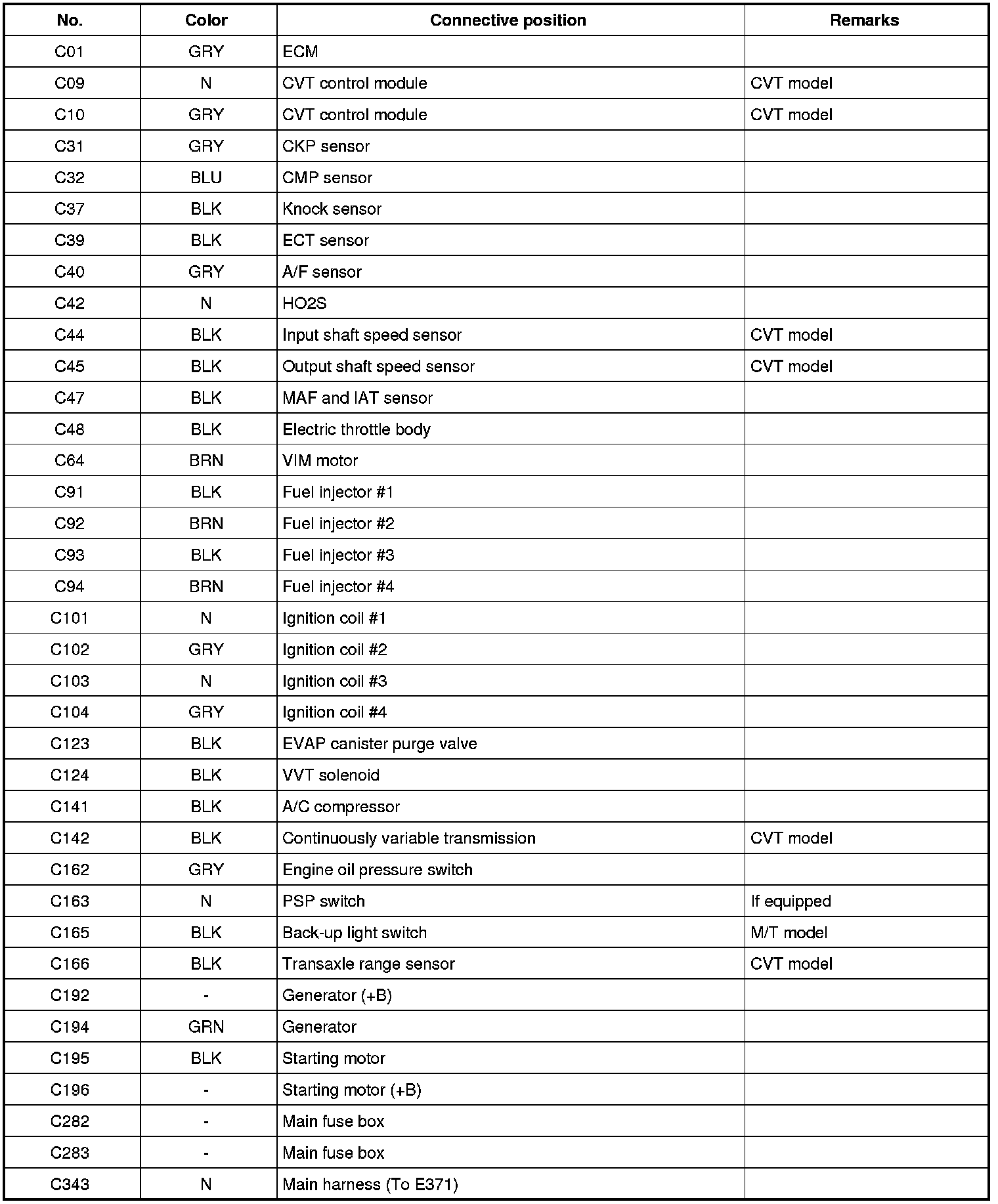

C: Engine Harness

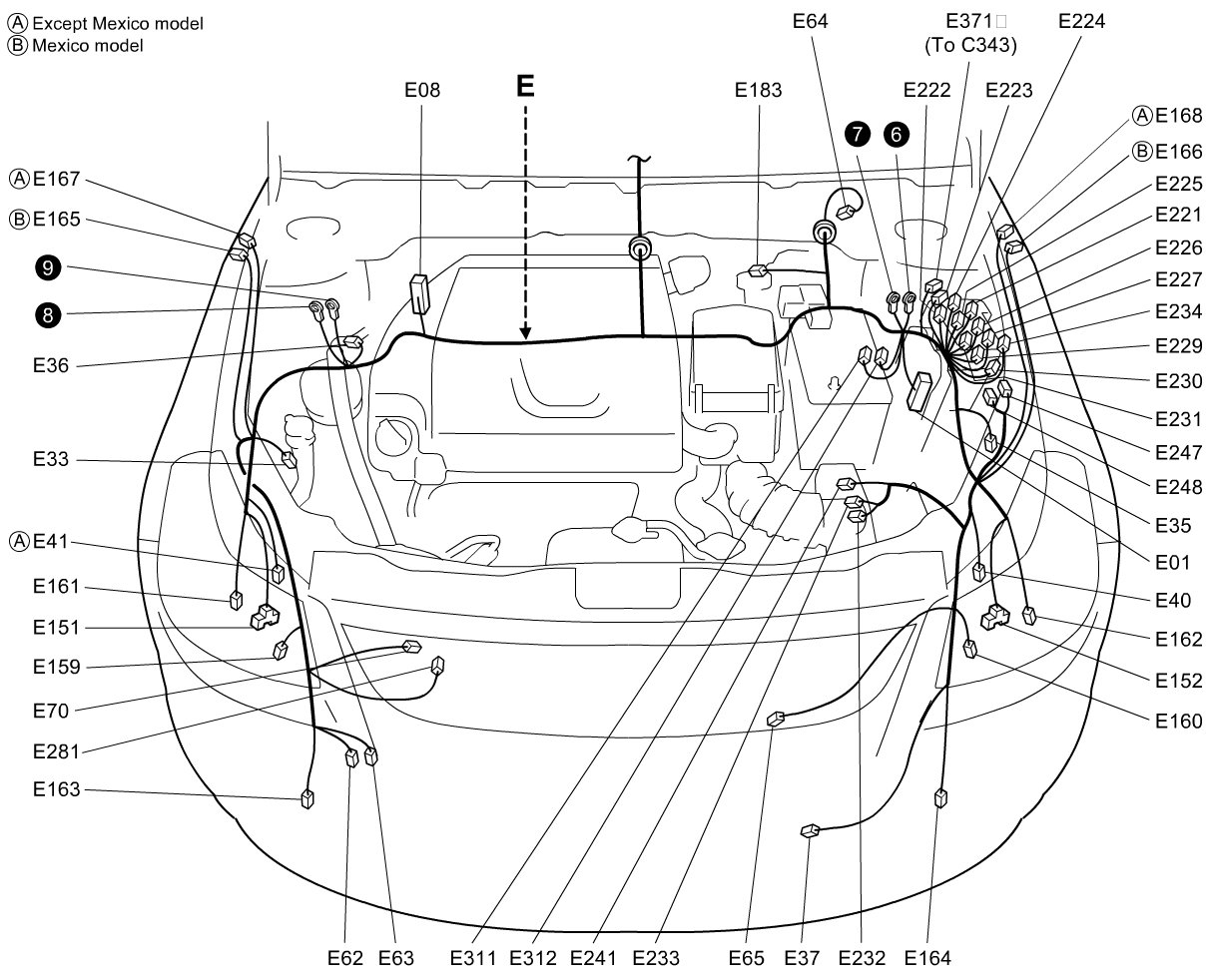

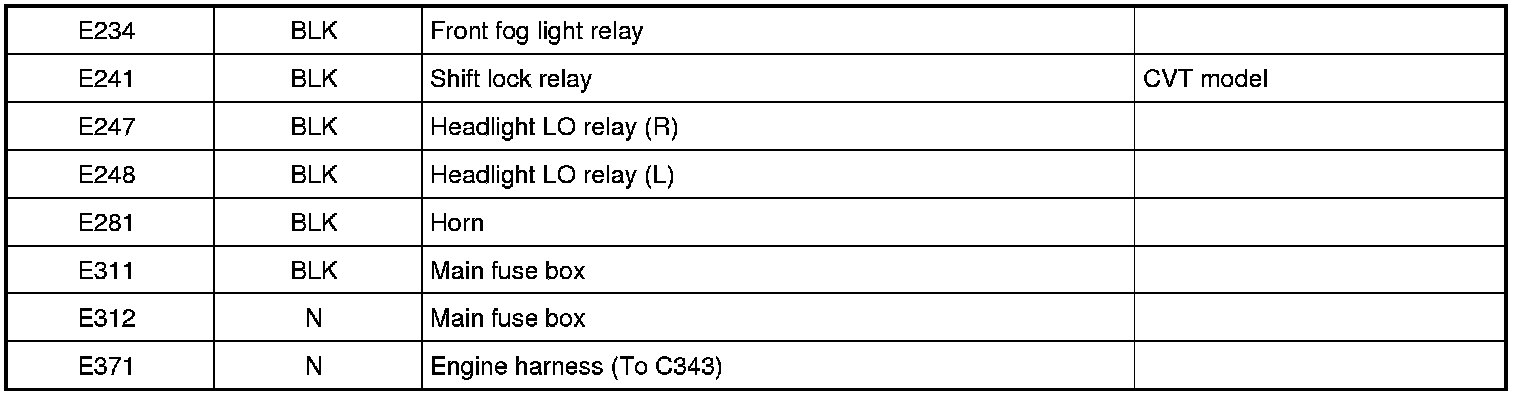

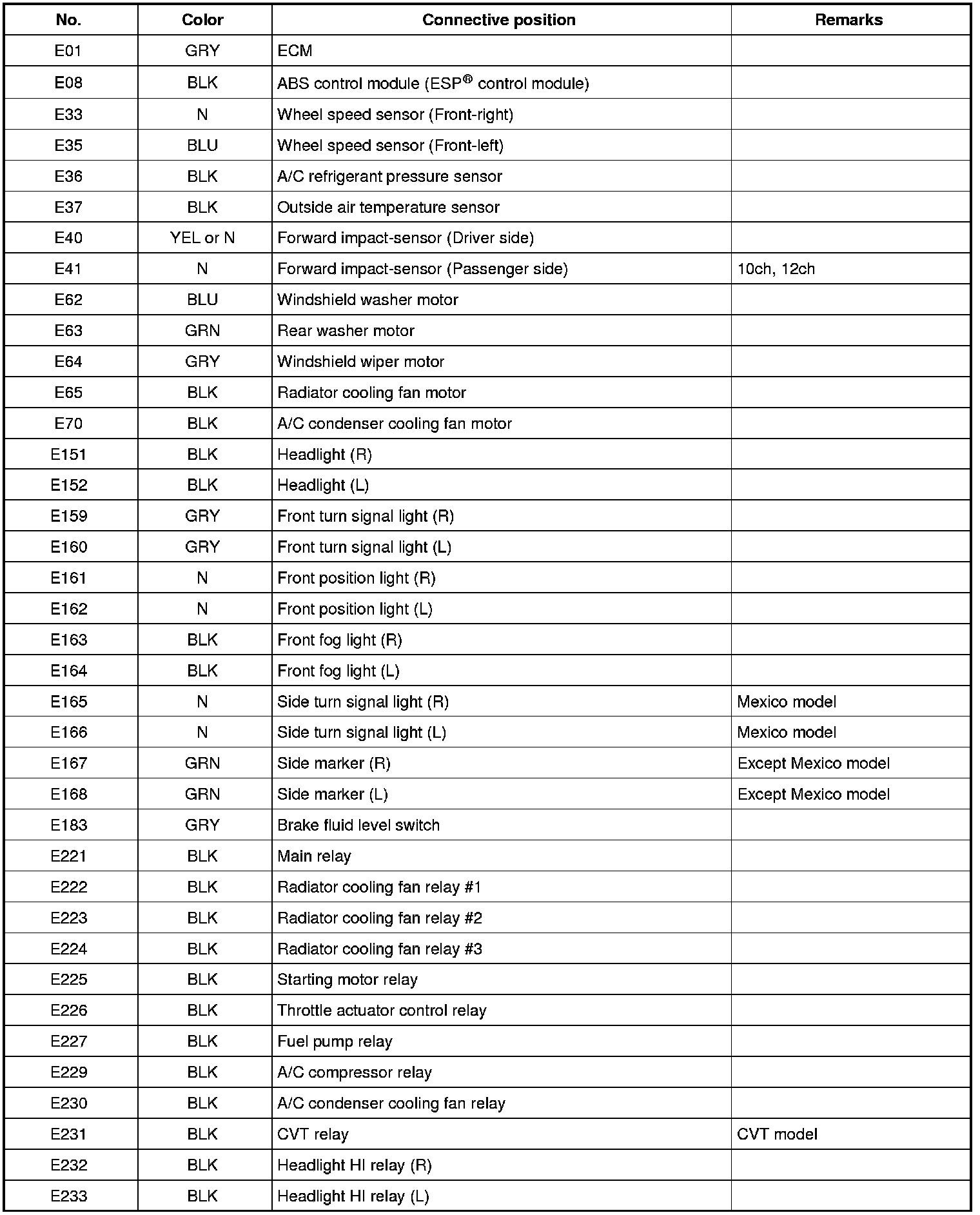

E: Main Harness
E: Main Harness
