Instrument Panel

Instrument Panel

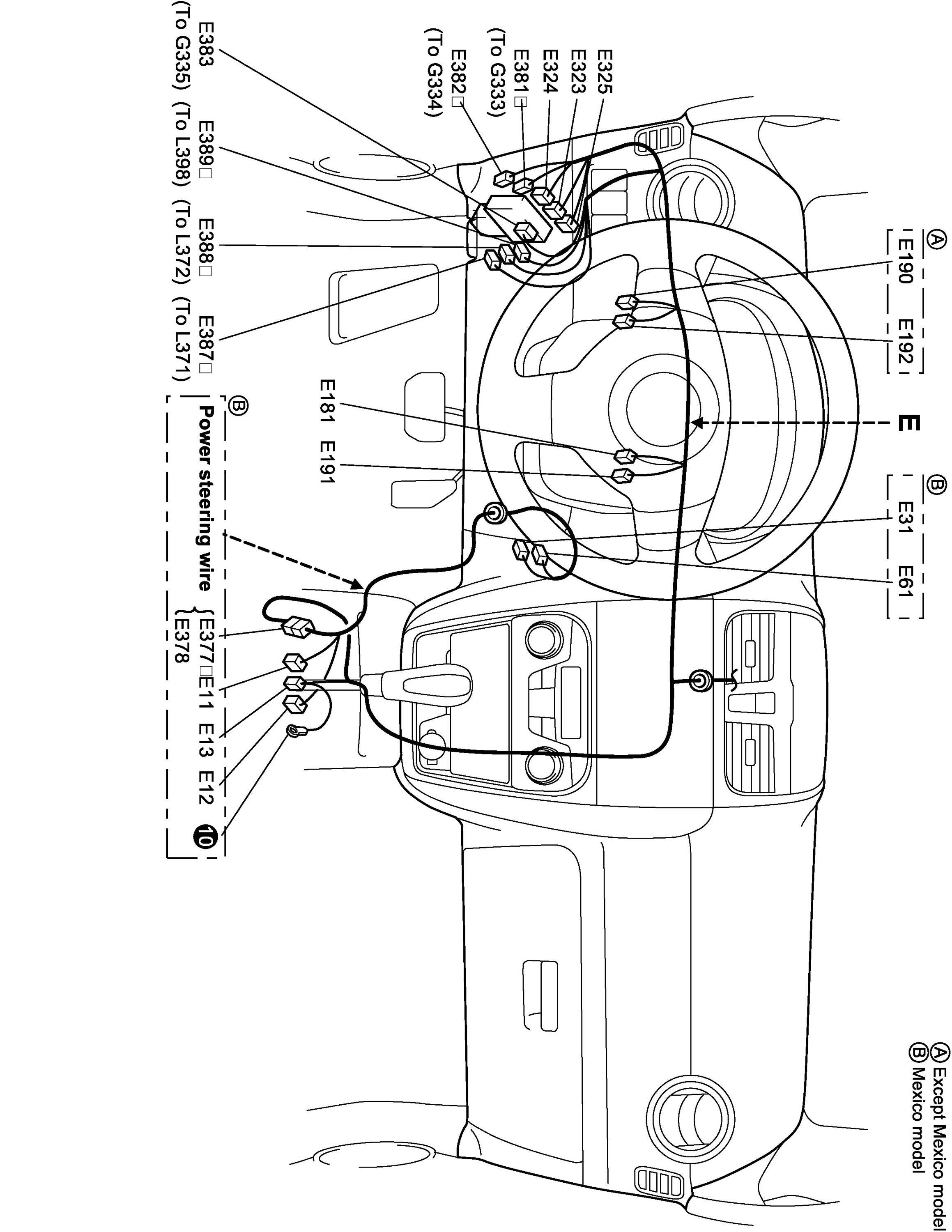

E: Main Harness, Power Steering Wire

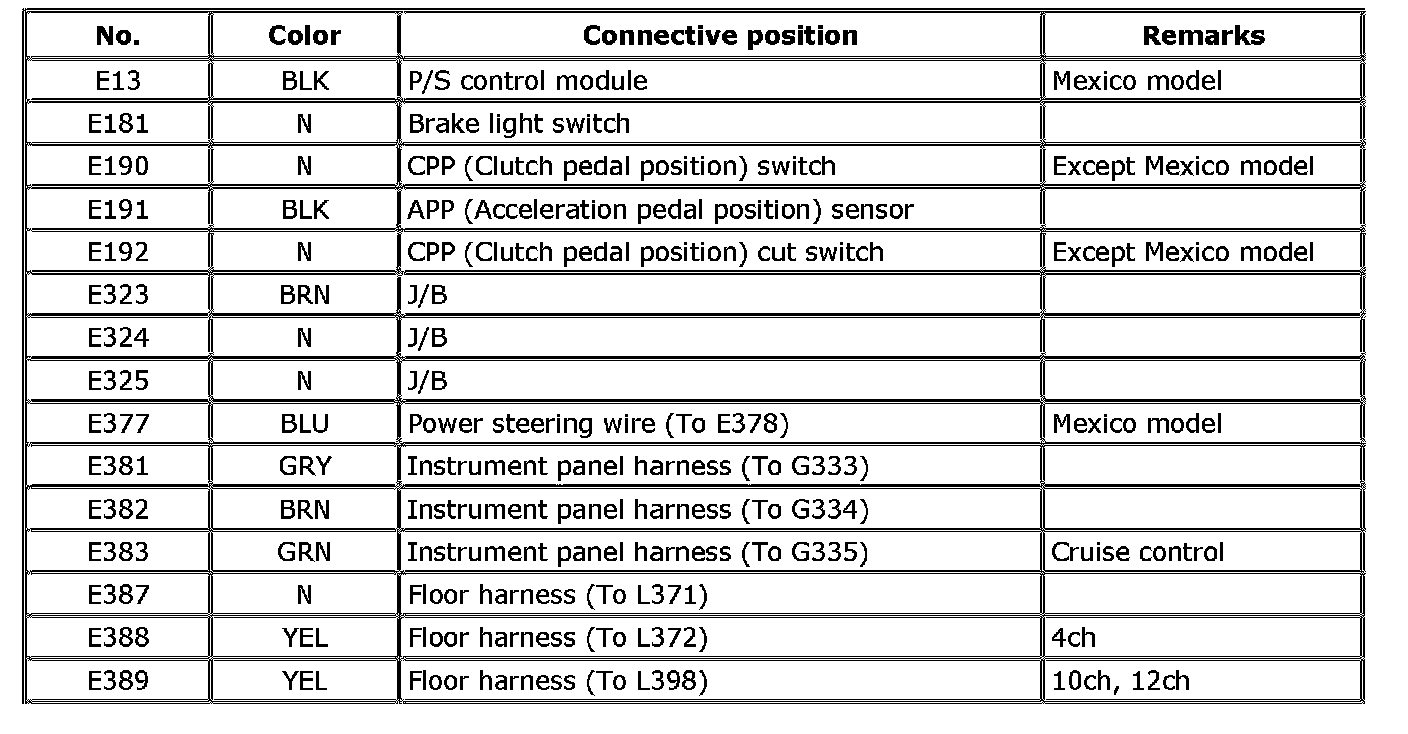

E: Main Harness

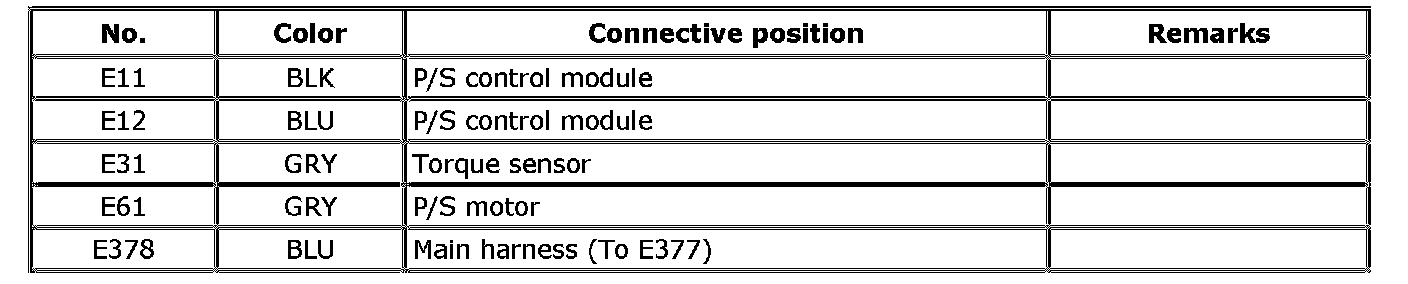

E: Power Steering Wire (Mexico Model)





G: Instrument Panel Harness, Instrument Panel Antenna Wire / S: Connect Coil

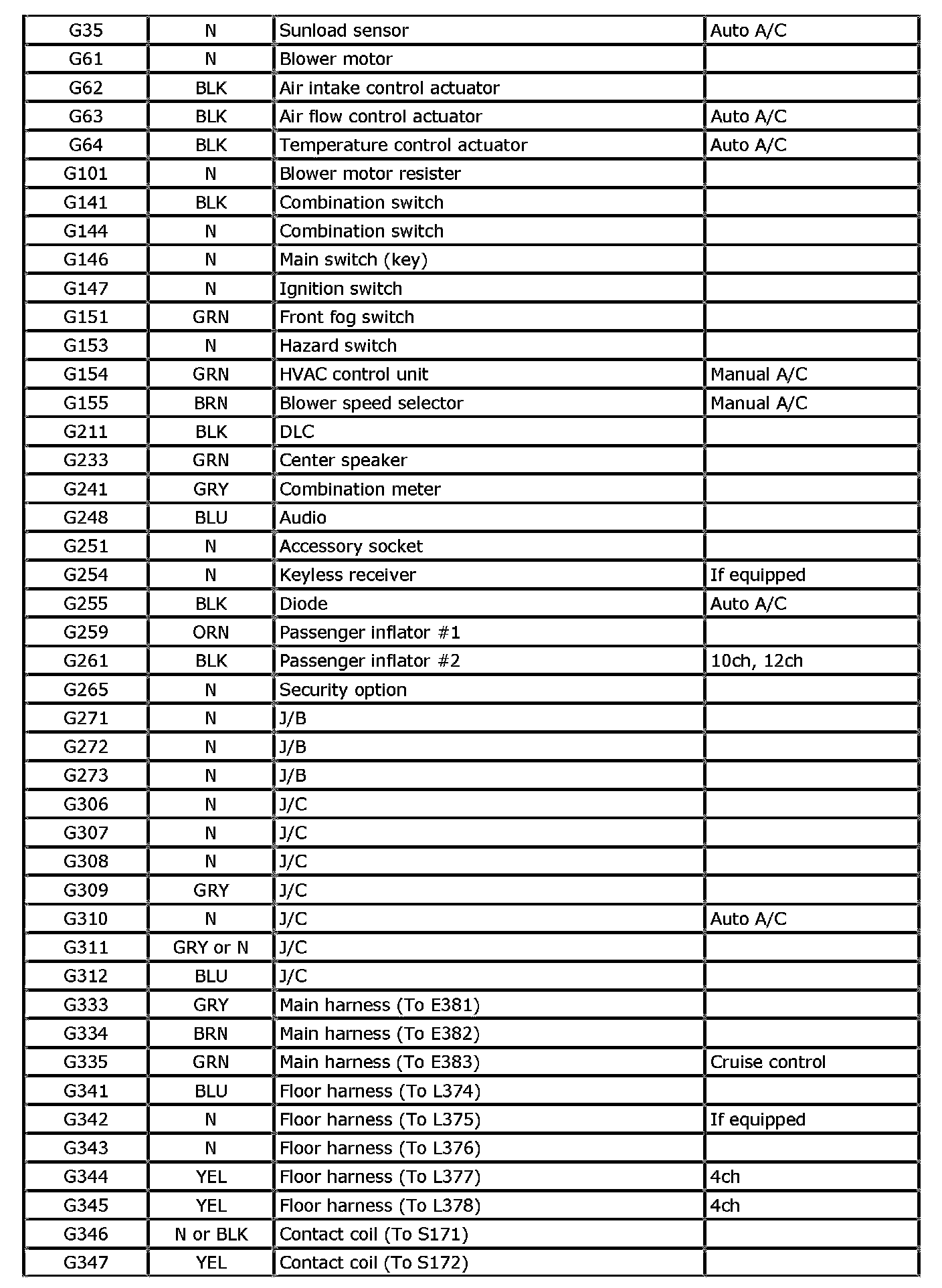

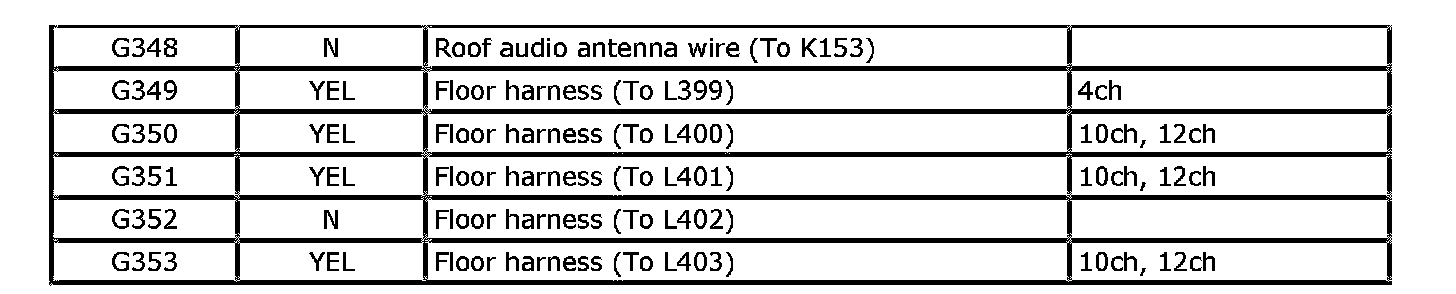

G: Instrument Panel Harness

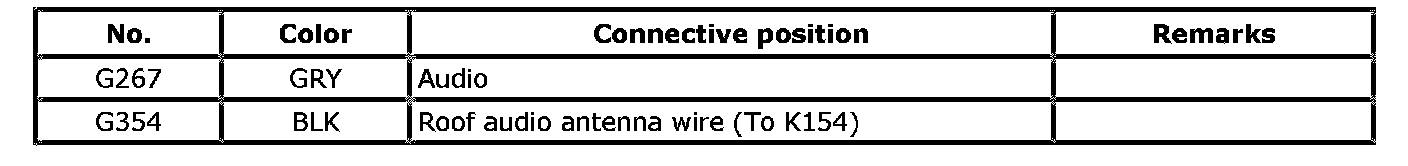

G: Instrument Panel Antenna Wire

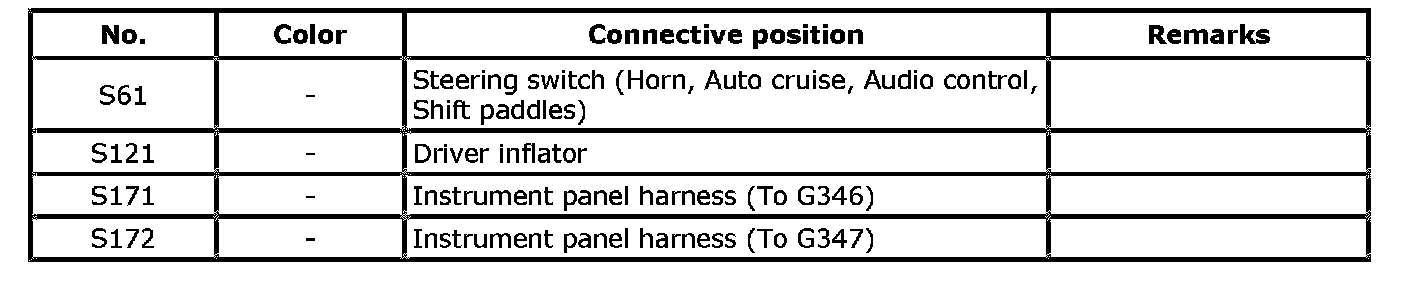

S: Connect Coil
