Engine Compartment
Engine Compartment
Engine Compartment
A: Battery Cable / C: Engine Harness
C: Engine Harness

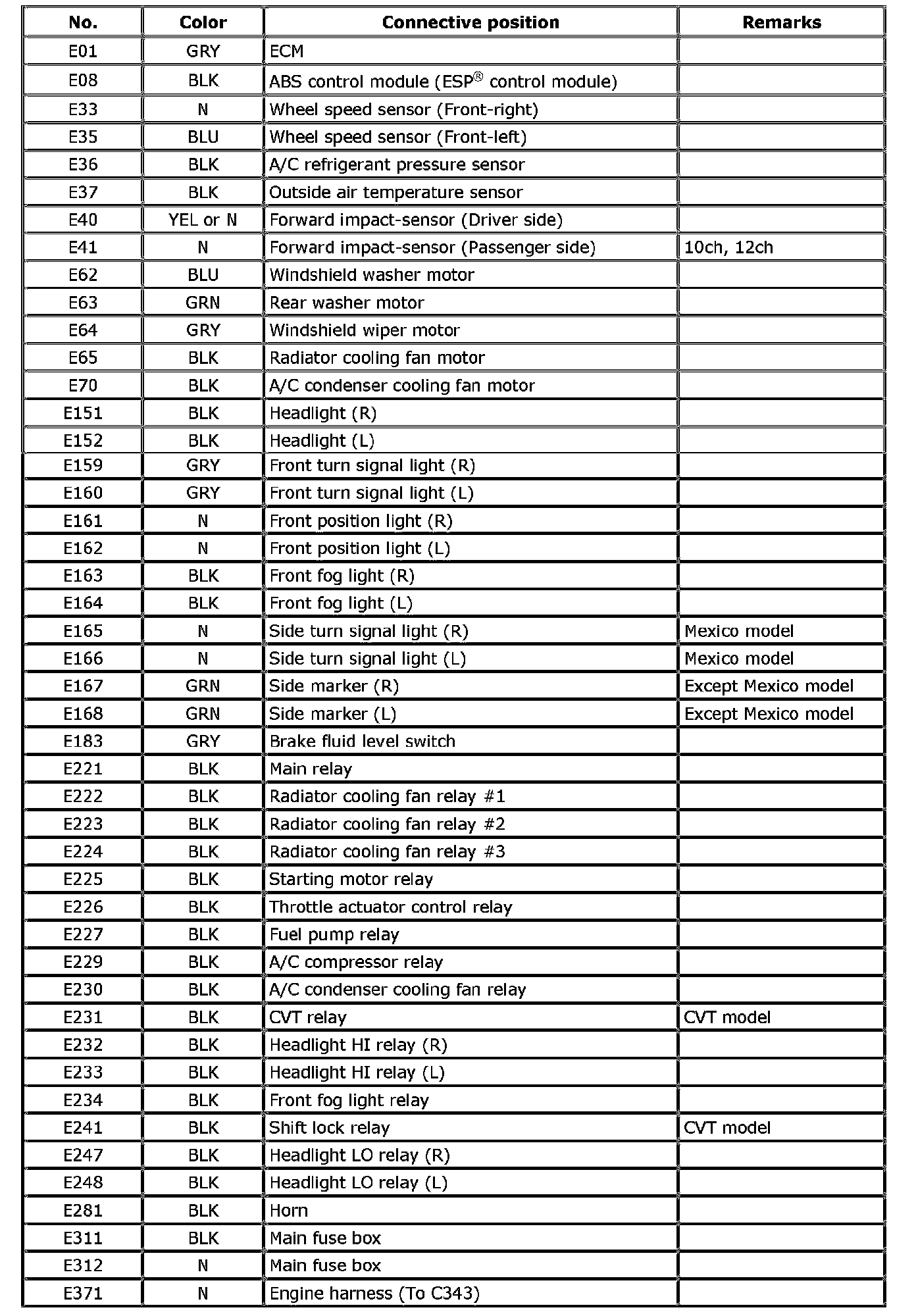

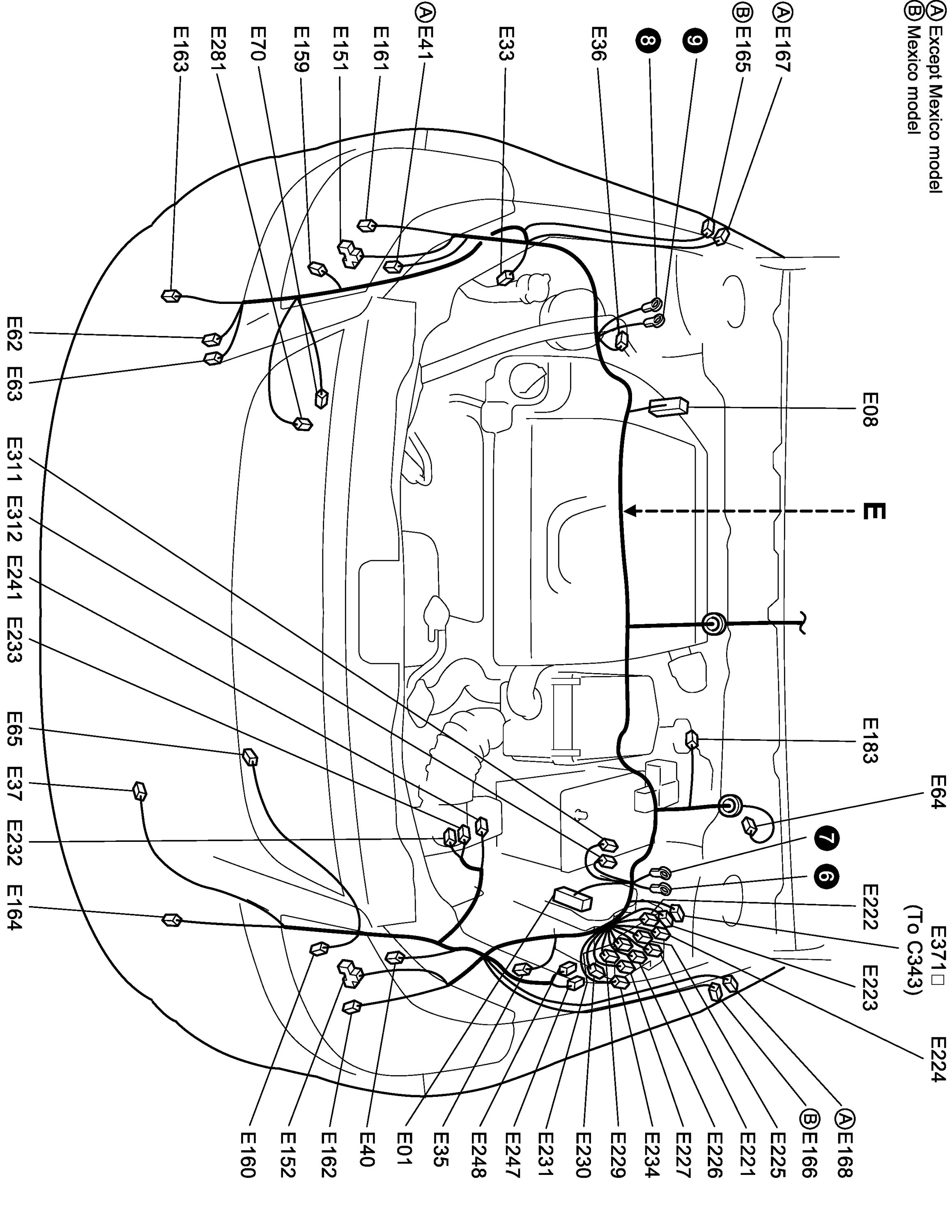

E: Main Harness
E: Main Harness
