Air Flow Meter/Sensor
>>
Locations
>>
Engine Compartment
Engine Compartment
Engine Compartment
C: Engine Harness (M/T Model)
C: Engine Harness (CVT Model)

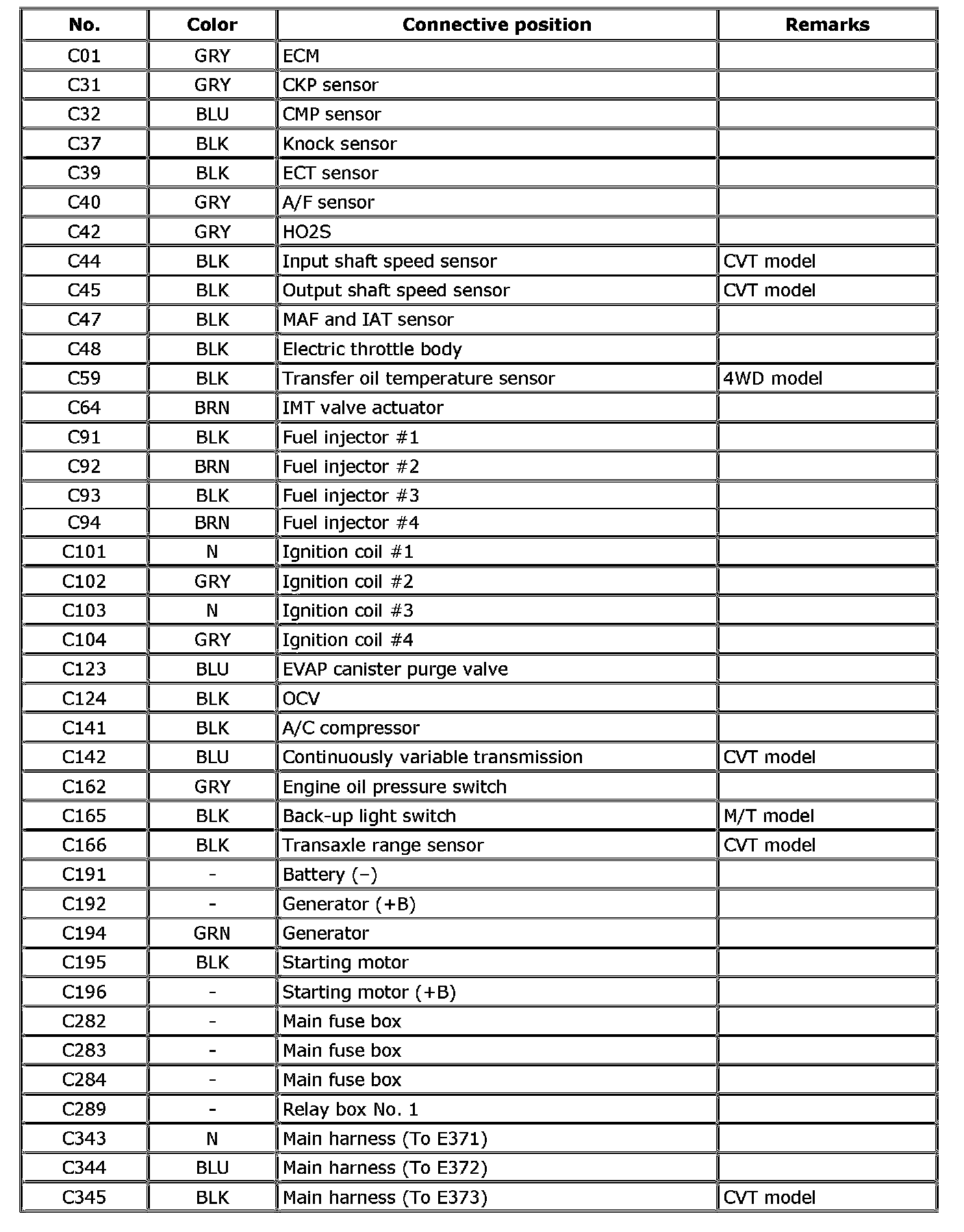

C: Engine Harness
