Suzuki
>>
2012
>>
Kizashi FWD L4-2.4L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Keyless Starting System
>>
Description and Operation
>>

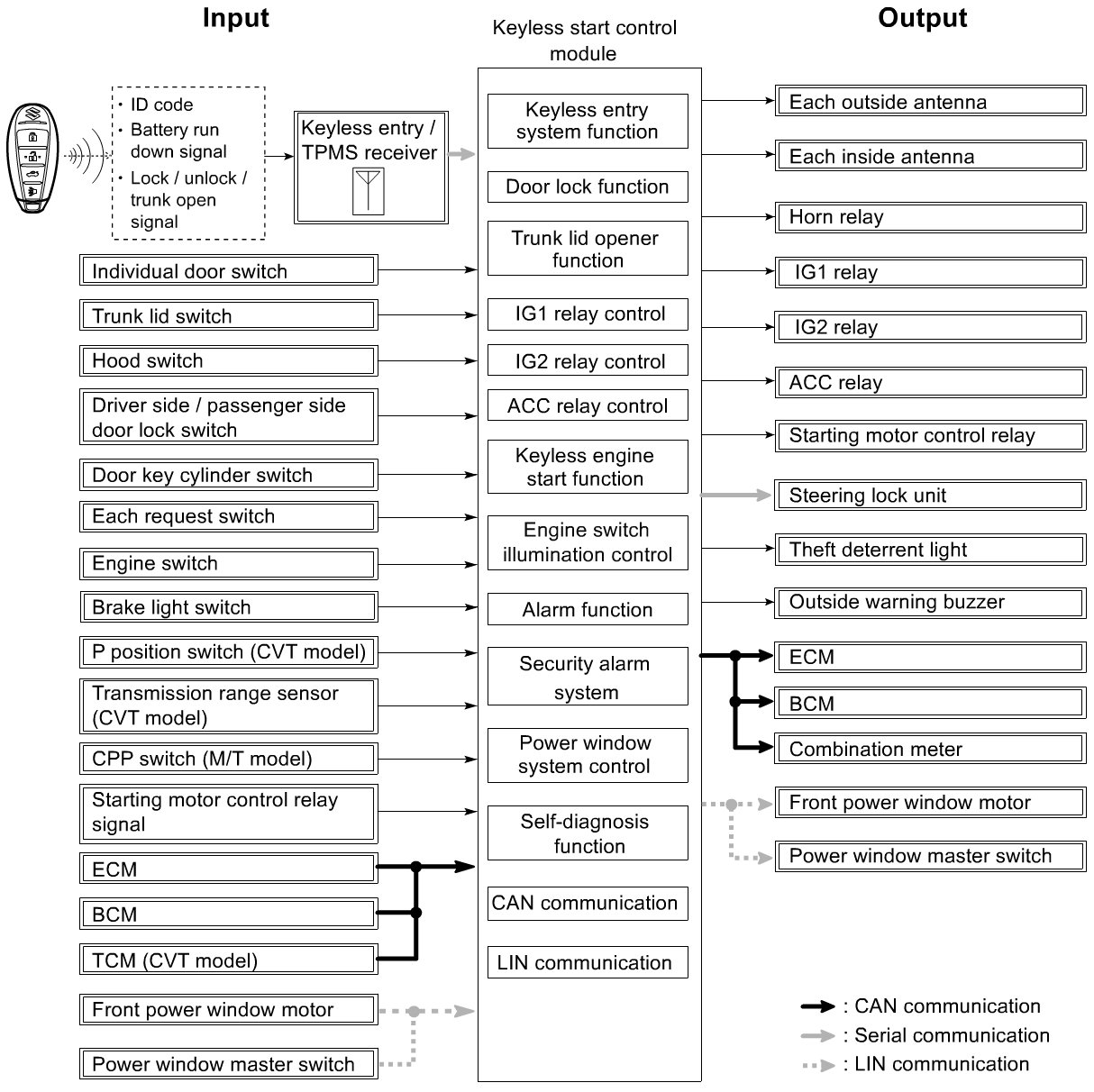

Keyless Start Control Module Input / Output Diagram
Keyless Start Control Module Input / Output Diagram
Keyless Start Control Module
Input / Output Diagram
