Programming and Relearning

TCM Learning Control Initialization

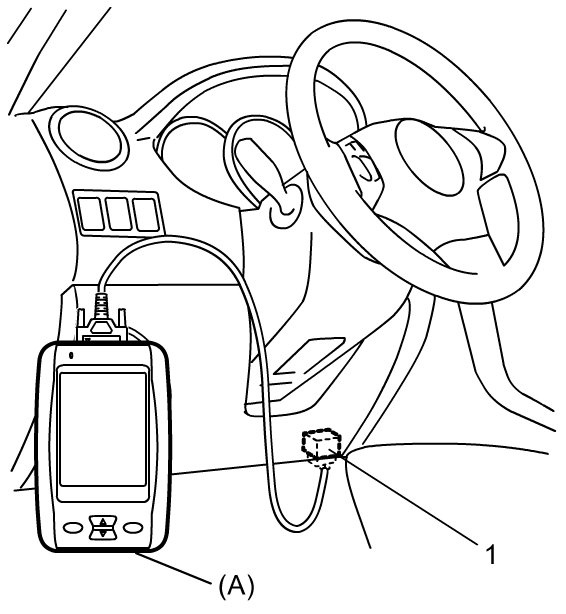

1) Connect scan tool to DLC (1) with ignition switch OFF.
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





2) Start engine and shift selector lever to "P" range.
3) Select "Misc Test" mode on scan tool.
4) Perform "AT learned initialize" on scan tool.
