Timing Cover

Timing Chain Cover


Tightening Torque
Timing chain cover bolt* (a): 25 Nm (2.5 kgf-m, 18.5 lbf-ft)

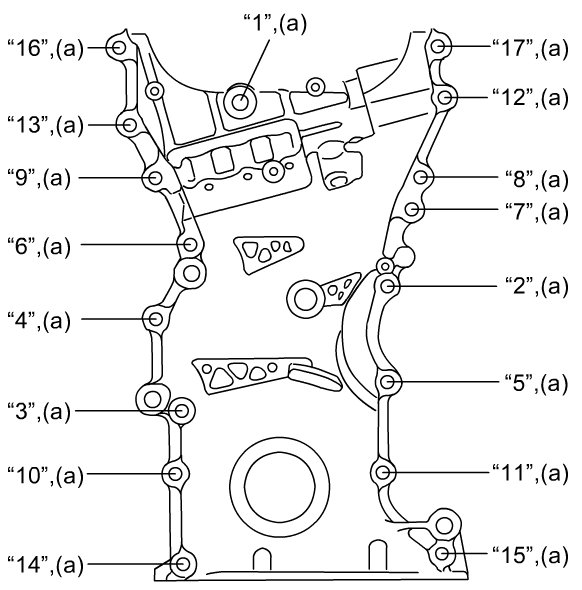

Tightening Sequence
Apply engine oil to oil seal lip, then install timing chain cover (1). Tighten timing chain cover bolts to specified torque in numerical order ("1" - "17") evenly and gradually.

NOTE:
Before installing timing chain cover, check that dowel pins are securely fitted.
