Fuel Level Sensor: Locations

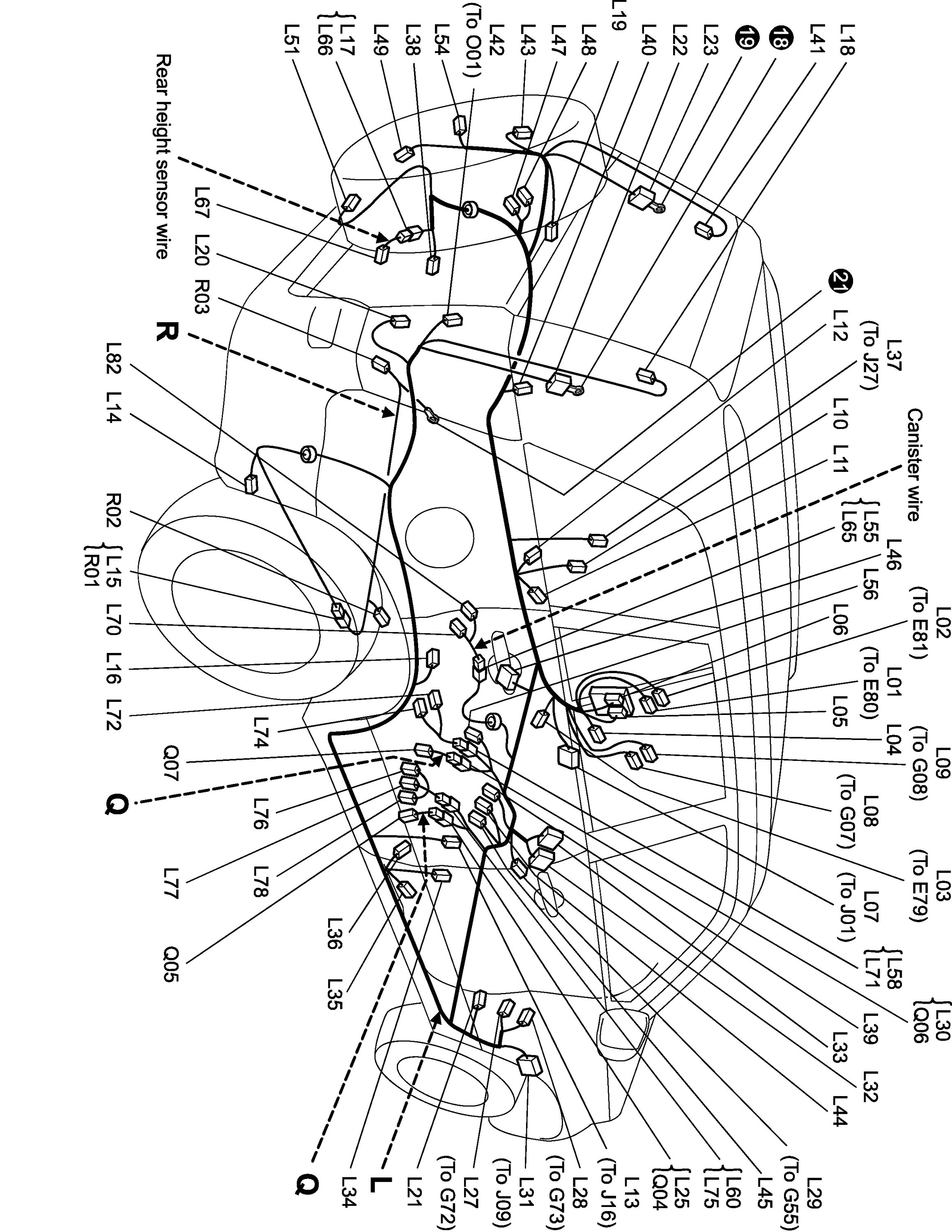

FloorL: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-Air Bag Harness

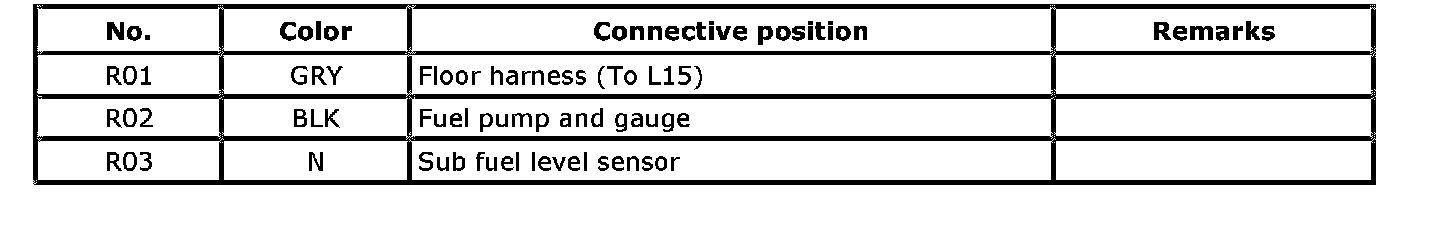

R: Fuel Pump Wire
L: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-Air Bag Harness
R: Fuel Pump Wire
