Keyless Entry Receiver: Service and Repair

Keyless Entry Receiver Removal and Installation

Removal

1) Disconnect negative cable at battery.
2) Remove console box from vehicle body referring to Diagrams Console Box Components.
3) Disconnect keyless entry receiver coupler.

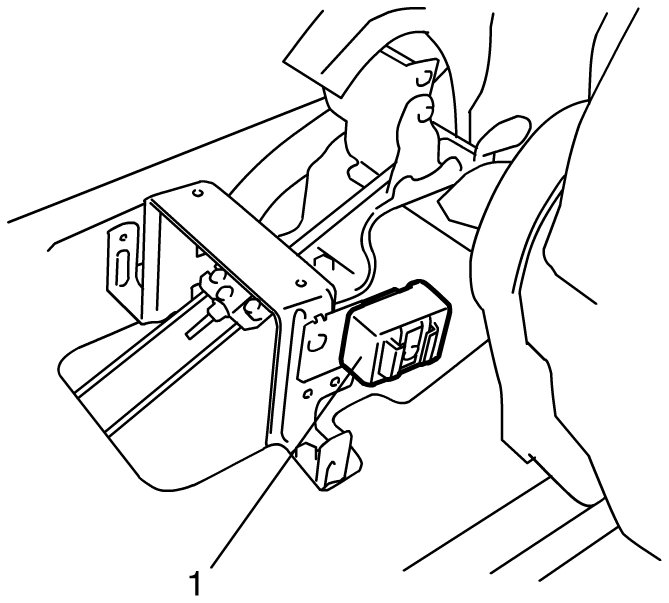

4) Remove keyless entry receiver (1).






Installation

Reverse removal procedure.
