Home >> Suzuki >> 2012 >> Equator 2WD V6-4.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold

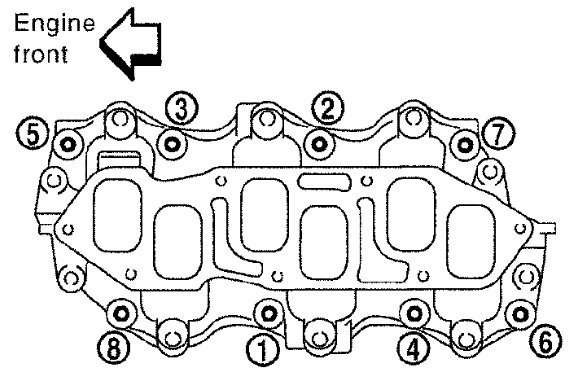

Intake Manifold

- If stud bolts were removed from cylinder head, install them and tighten to the specified torque.

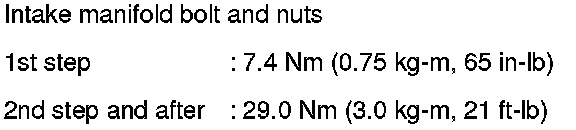

- Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown.

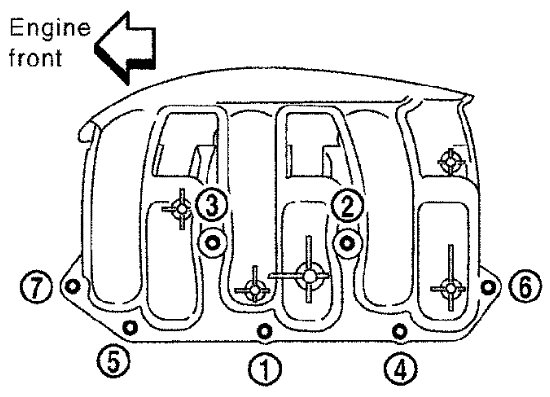

Intake Manifold Collector

- If stud bolts were removed from intake manifold, install them and tighten to the specified torque.
- Tighten nuts and bolts in numerical order as shown.
