Home >> Suzuki >> 2011 >> Kizashi FWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

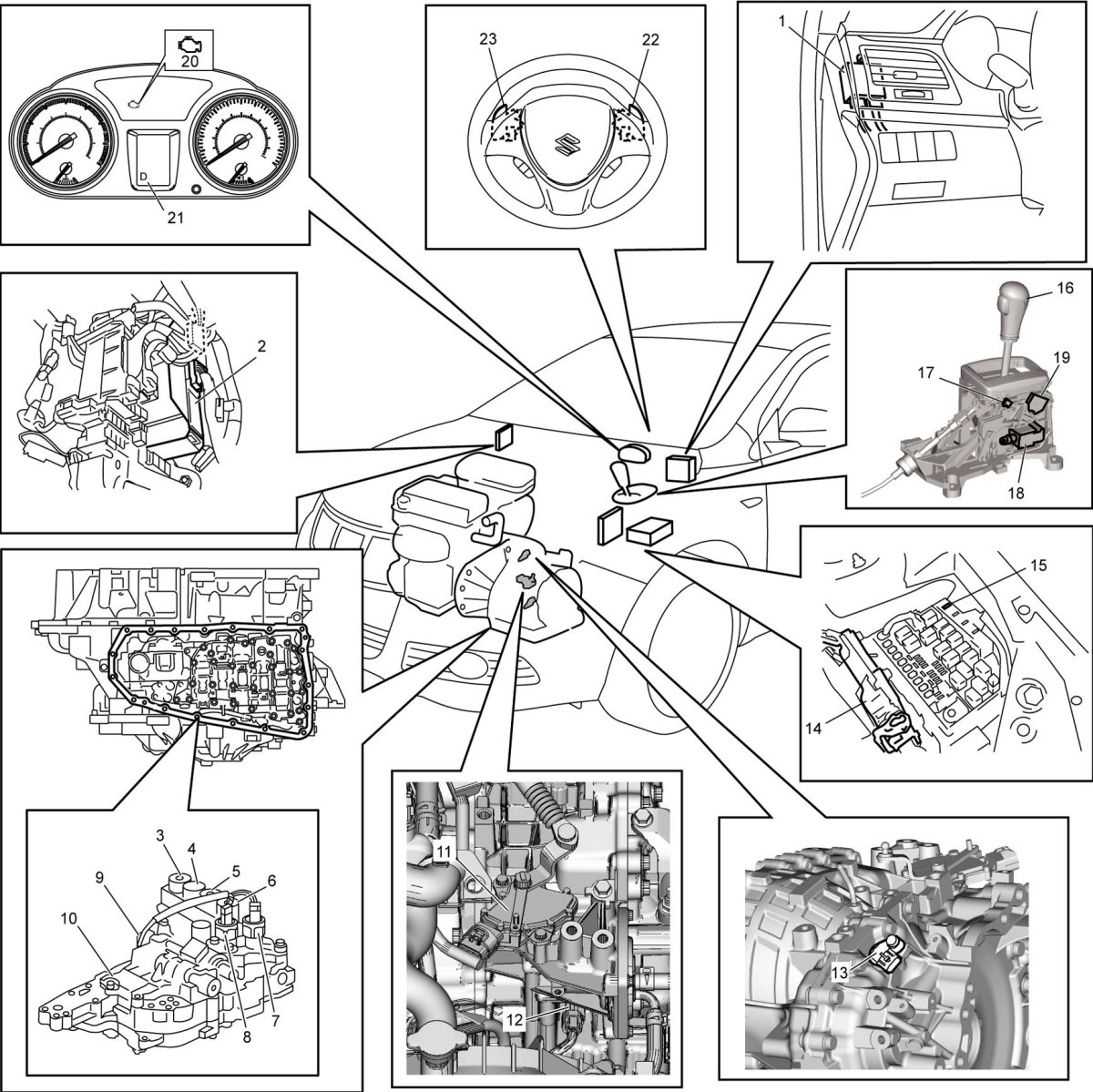

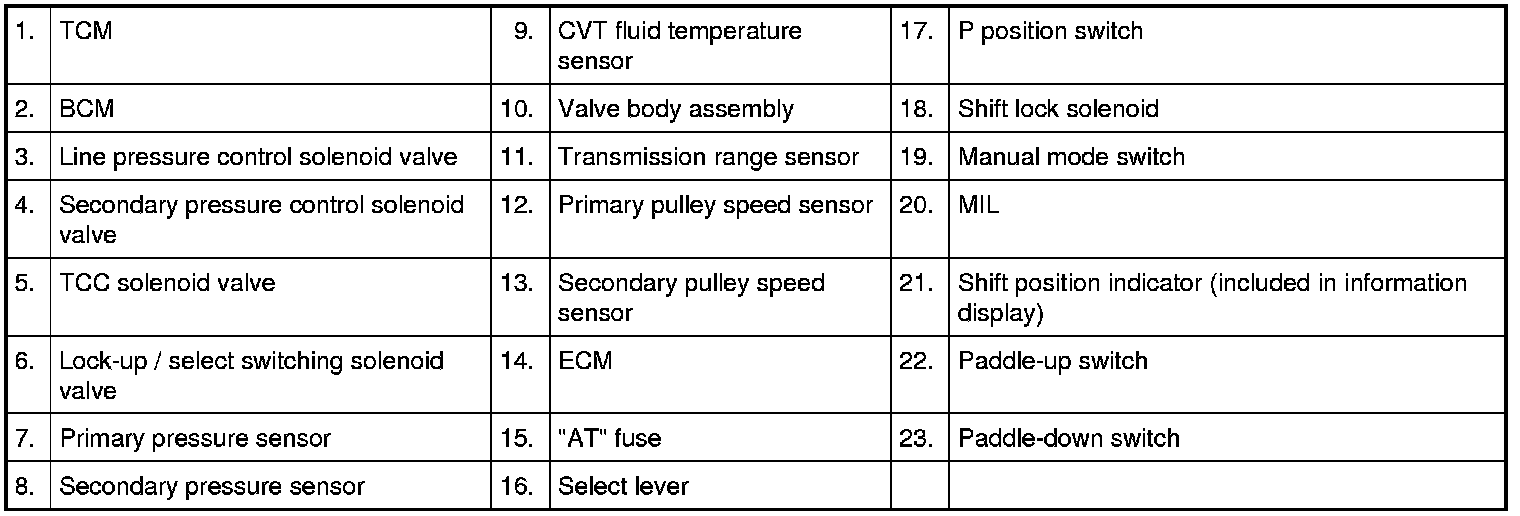

Electronic Shift Control System Component Location
