Home >> Suzuki >> 2011 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly >> Front Axle

Front Axle




Service Data and Specifications

Wheel Bearing

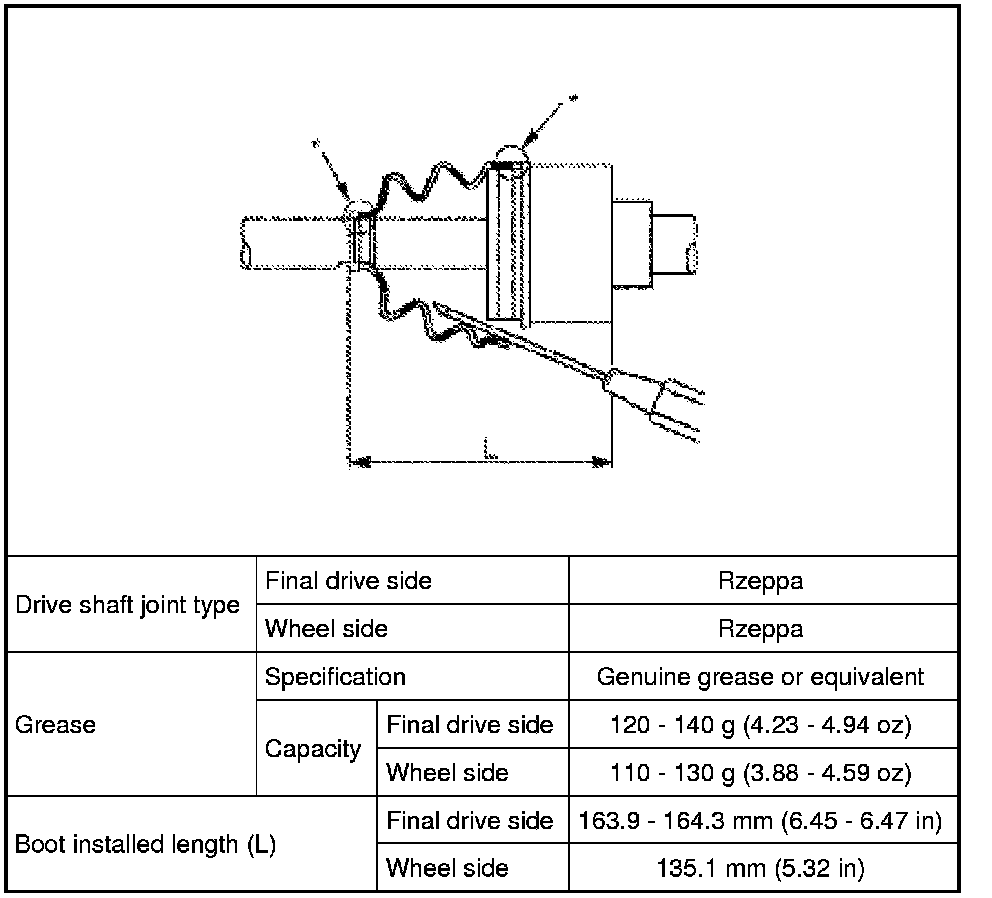

Drive Shaft

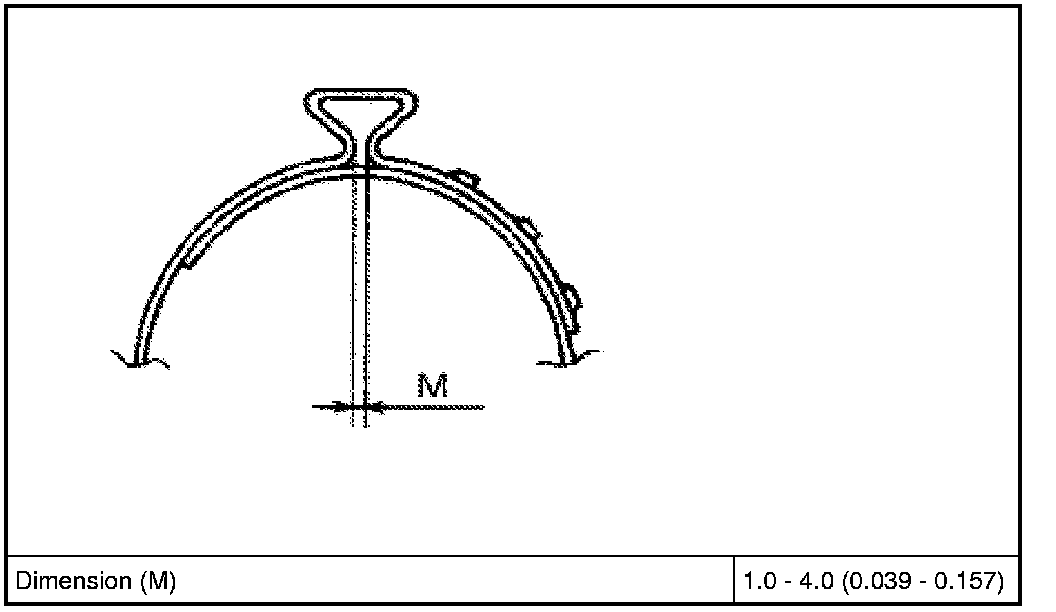

Boot Bands

Unit: mm (in)
