Home >> Suzuki >> 2010 >> Kizashi AWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Ignition System Check

Ignition System Check

Ignition System Check

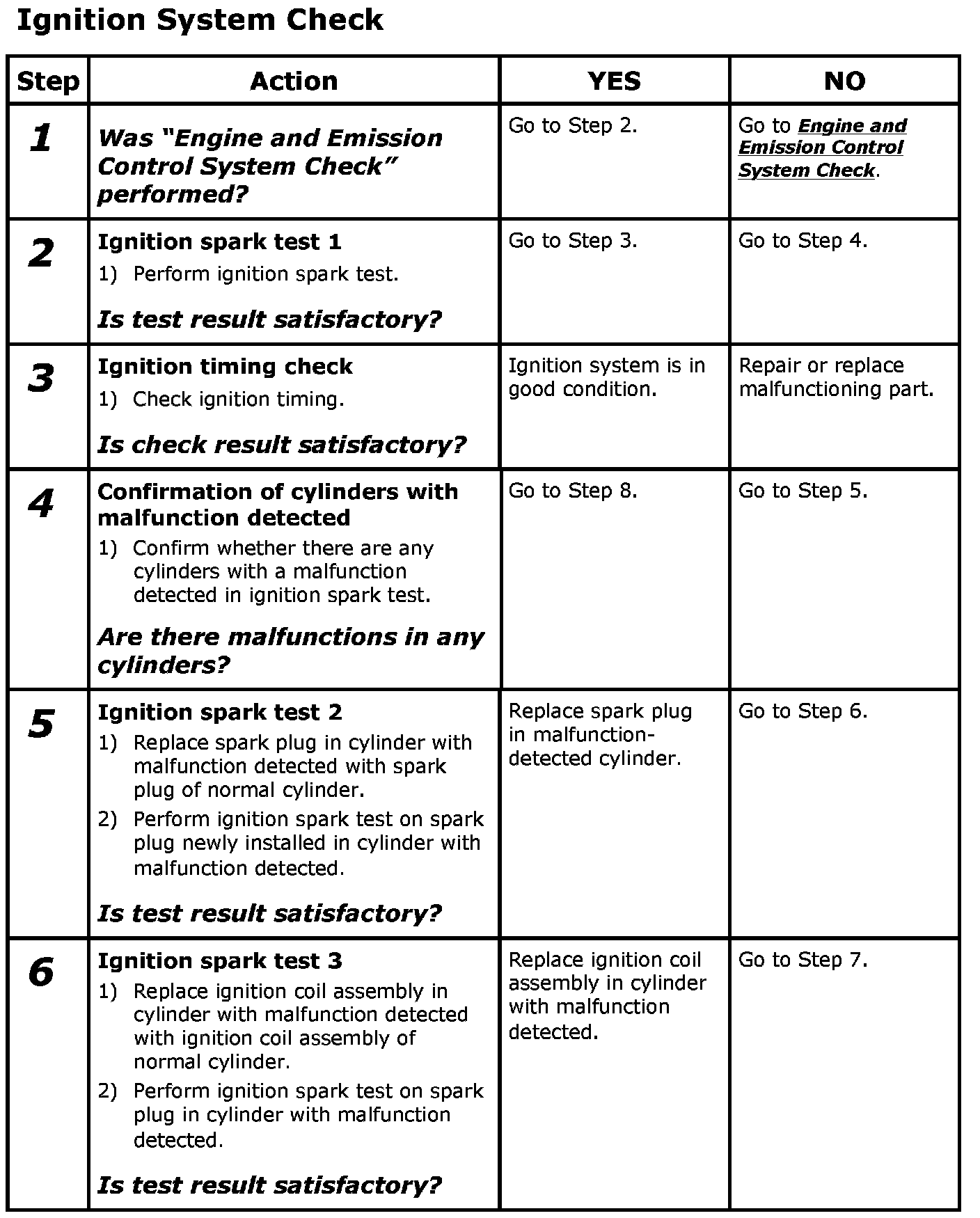

Step 1-6:

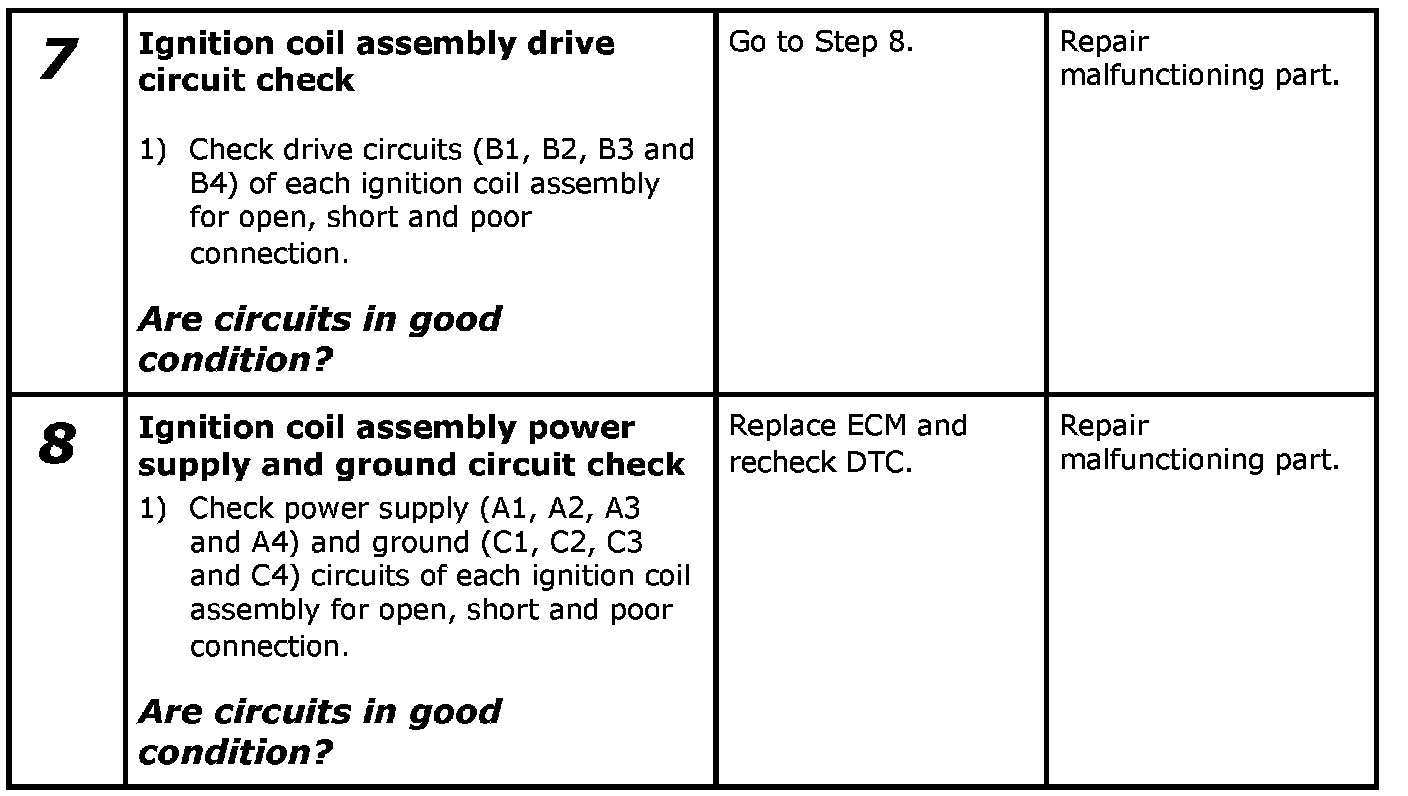

Step 7-8:
