Keyless Entry Receiver: Service and Repair
Keyless Entry / TPMS Receiver Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove left rear pillar trim.

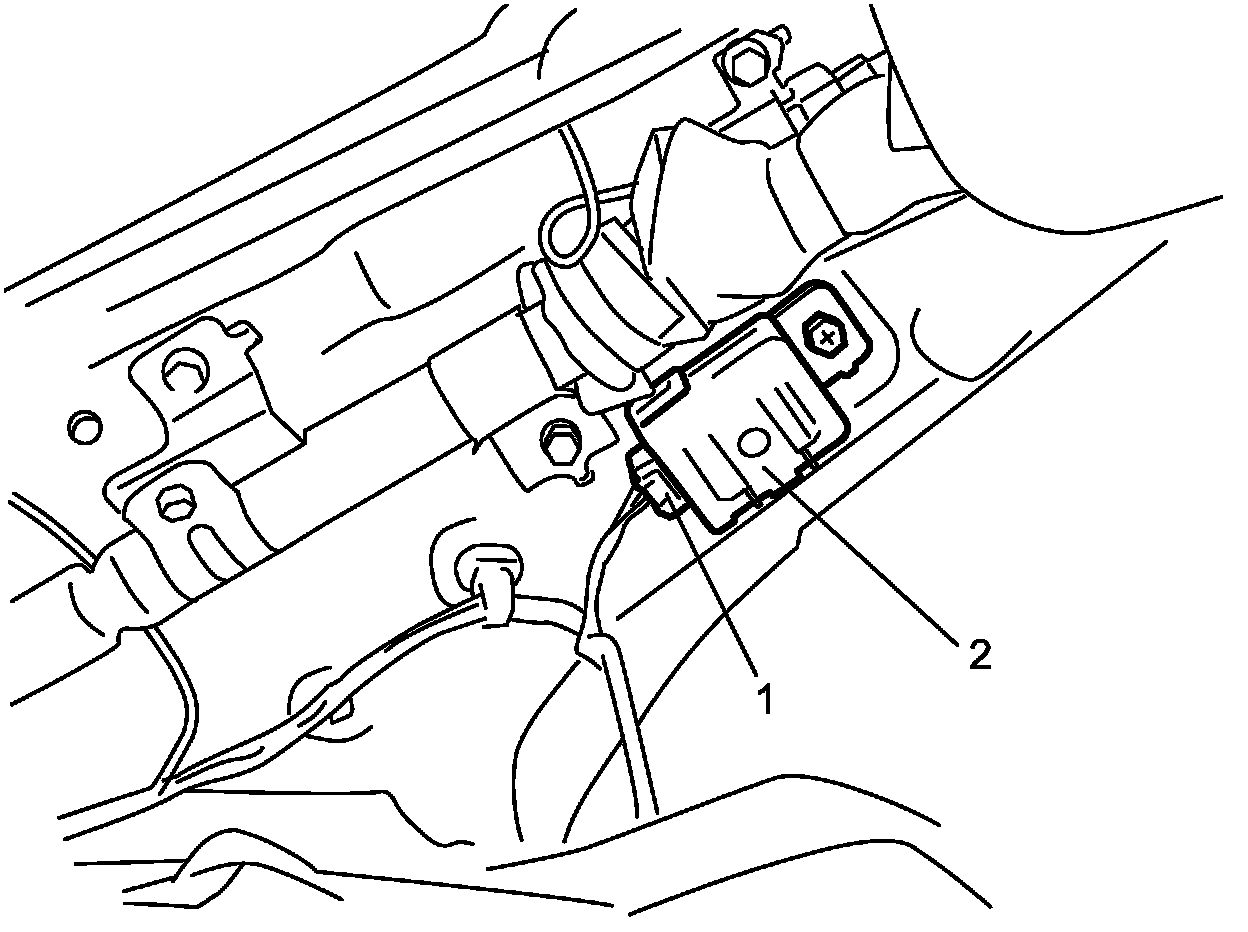

3. Disconnect connector (1), and then remove keyless entry / TPMS receiver (2)
Installation
Reverse removal procedure.
