Power Window Control Module: Testing and Inspection

ECU Diagnosis: Power Window System

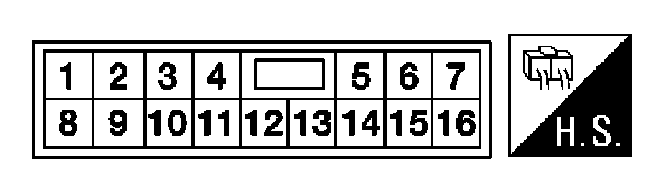

Terminal Layout for Power Window Main Switch

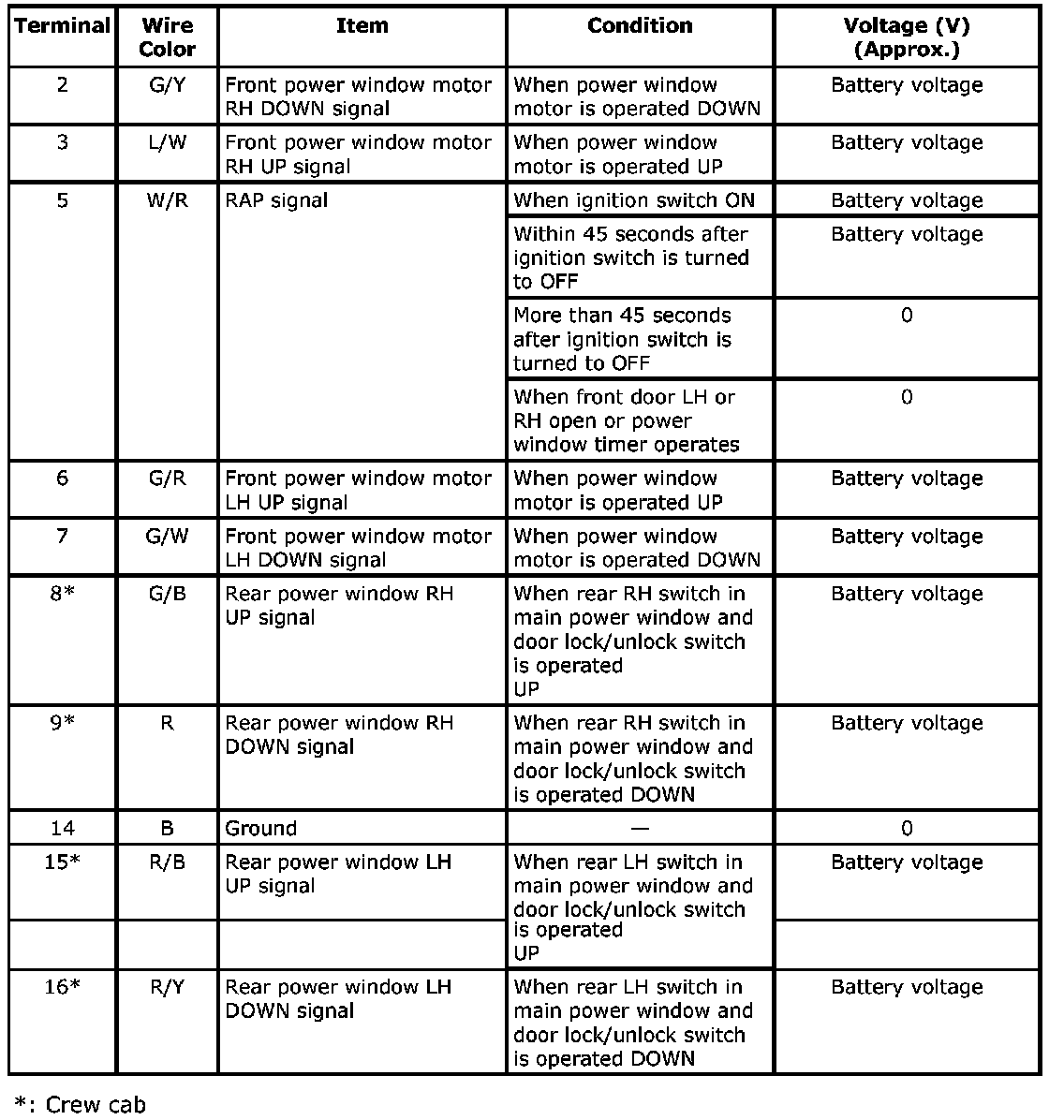

Physical Values for Power Window Main Switch
