Power Distribution Module: Testing and Inspection
Diagnosis and Repair Workflow

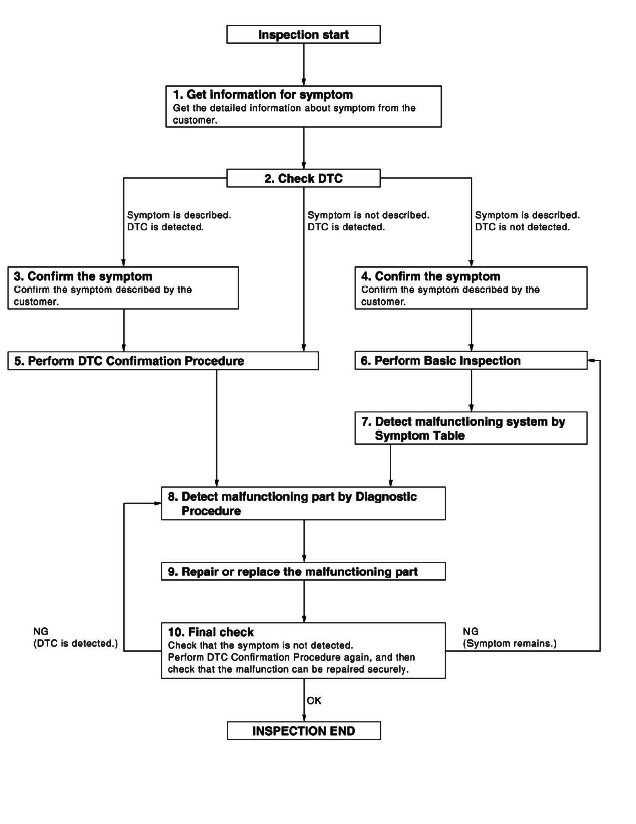

Overall Sequence
Detailed Flow

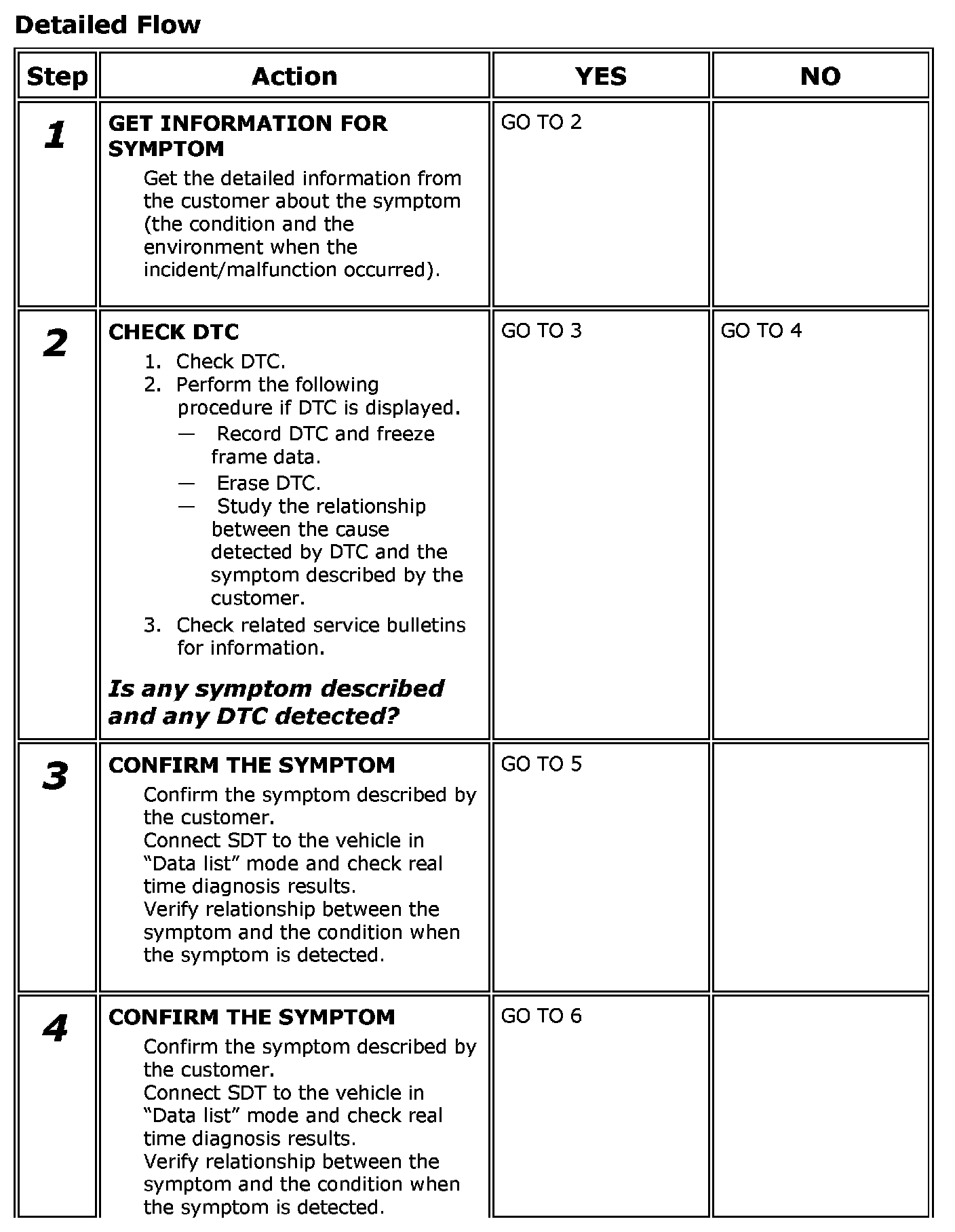

Step 1-4:

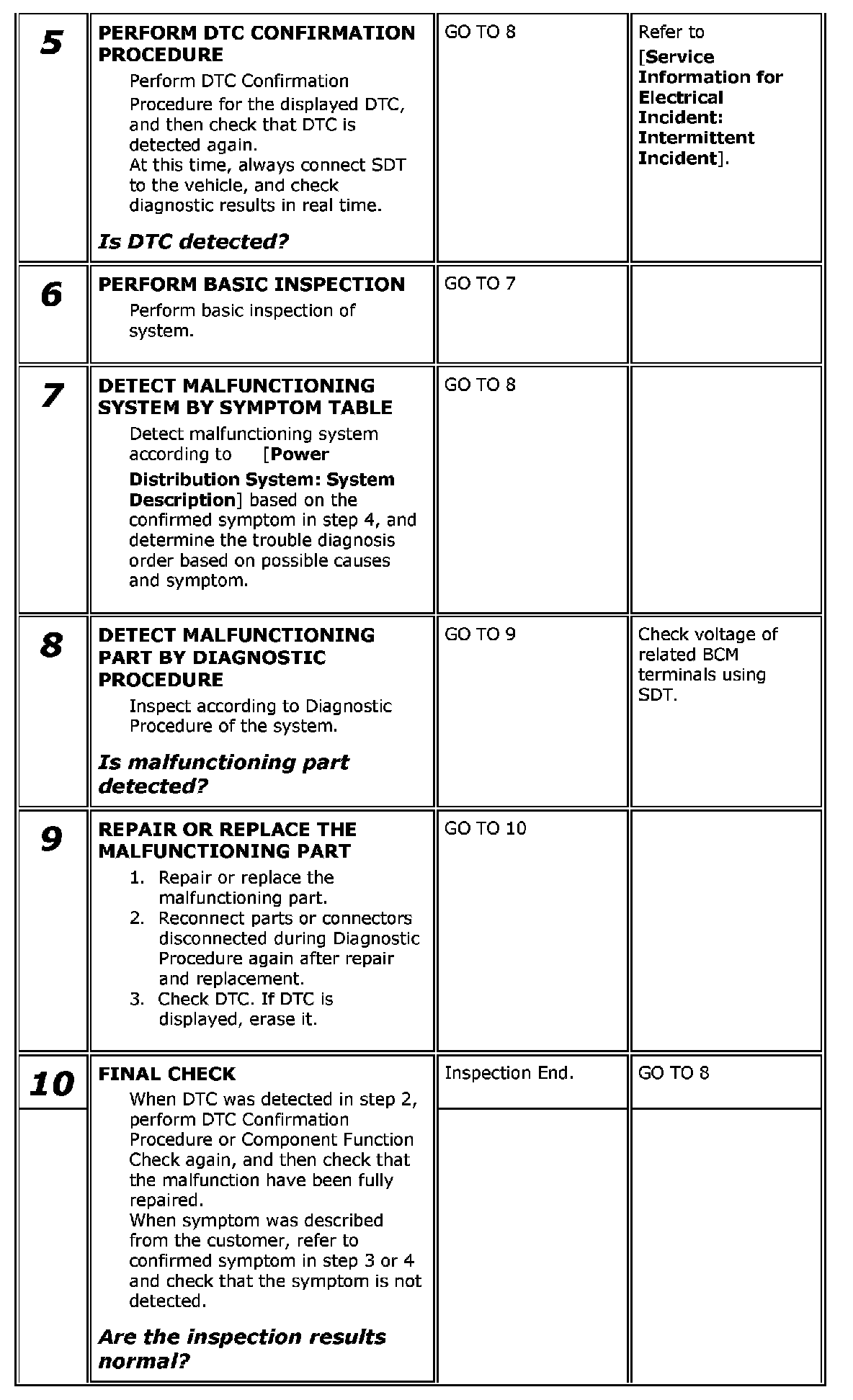

Step 5-10:
