Control Assembly: Service and Repair

Control Unit: Removal and Installation

Front Air Control

Removal
1. Remove cluster lid C. Refer to [Instrument Panel Assembly: Exploded View].

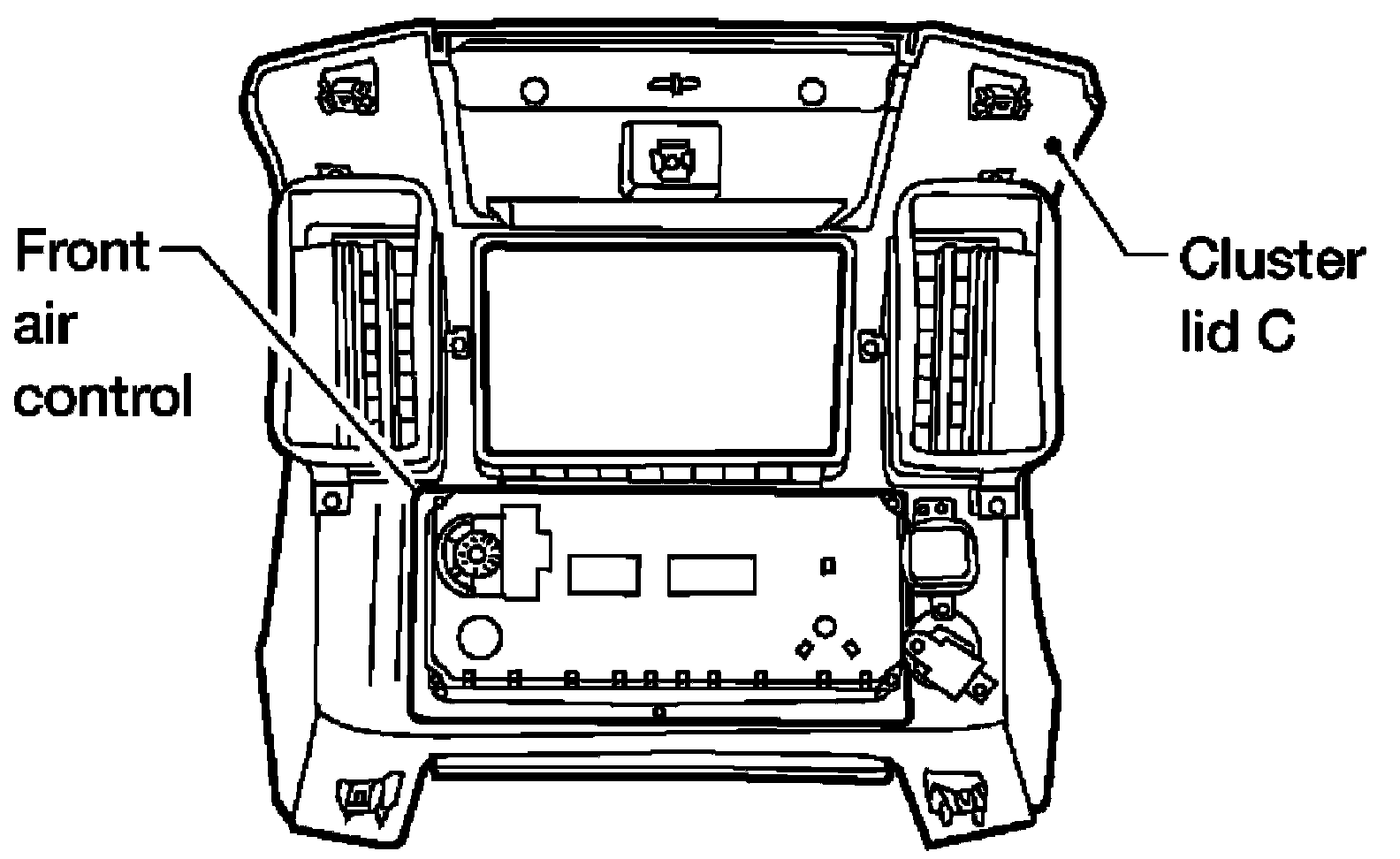

2. Remove the front air control from cluster lid C.

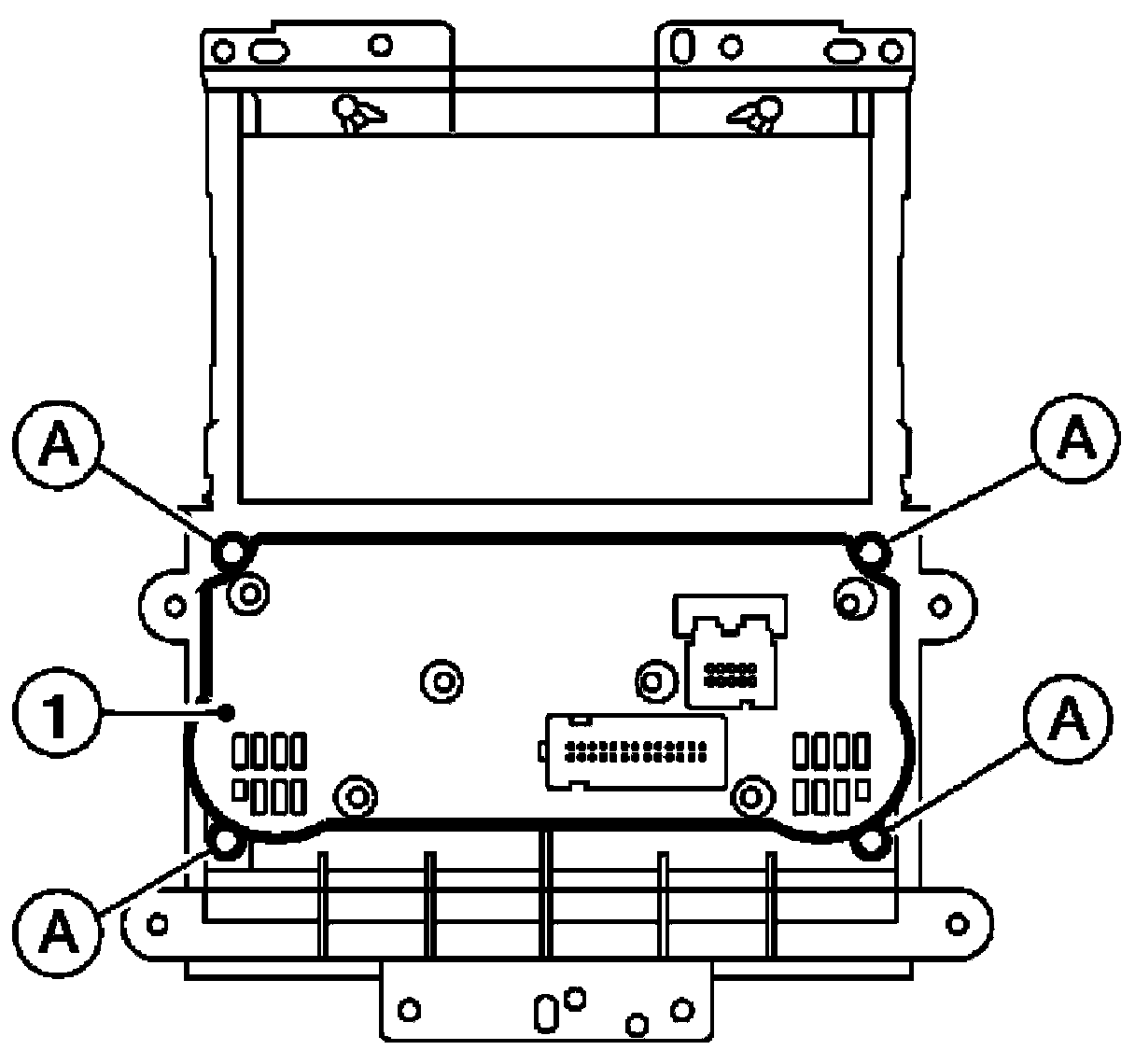

- For type 1, remove the four screws (A) securing the front air control (1) to cluster lid C.






- For type 2, remove the four screws securing the front air control to cluster lid C.






Installation
Installation is in the reverse order of removal.
