Body Control Module

BCM: Wiring Diagram

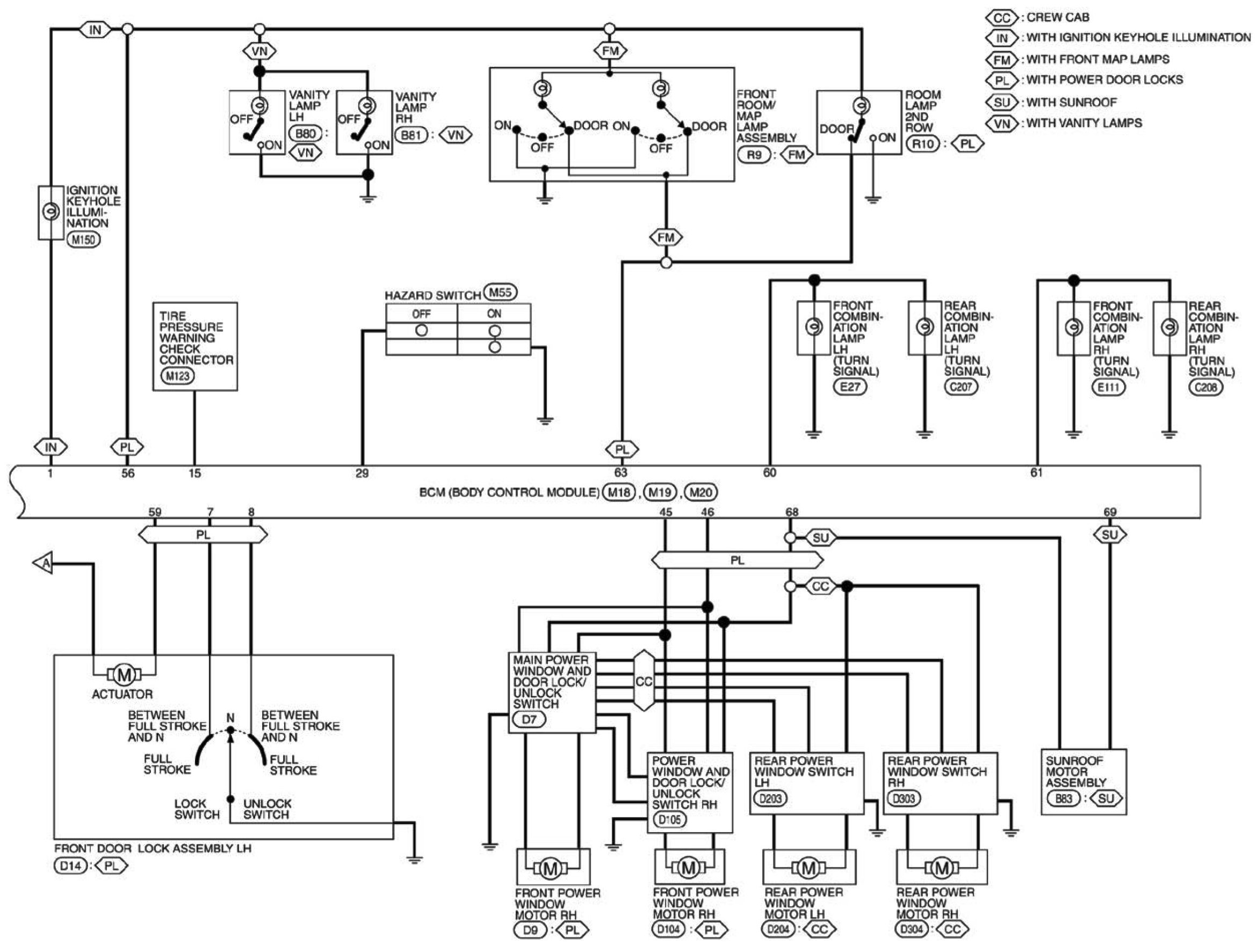

BCM (Body Control Module) (Part 1):

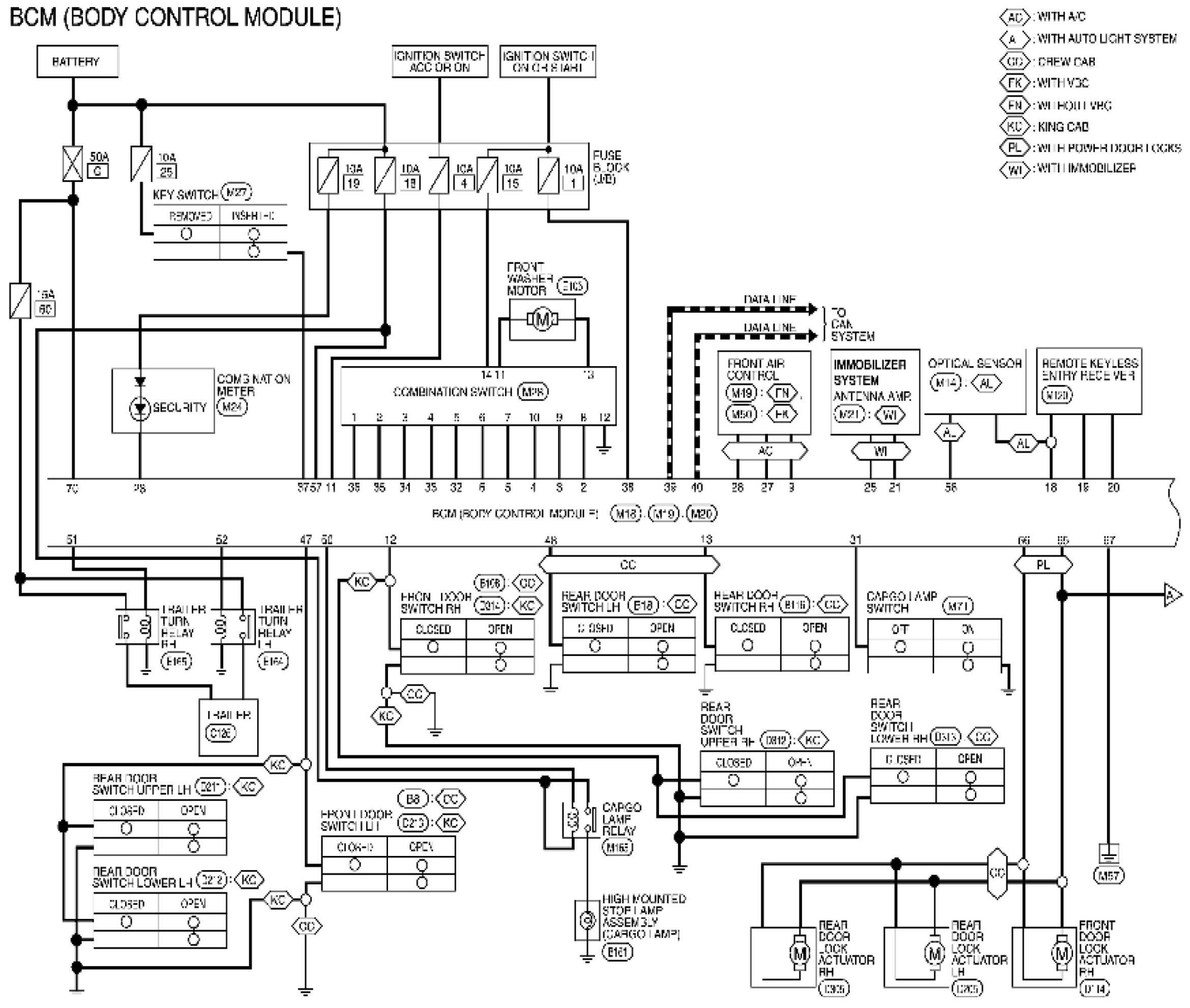

BCM (Body Control Module) (Part 2):






BCM 9Body Control Module) Connectors

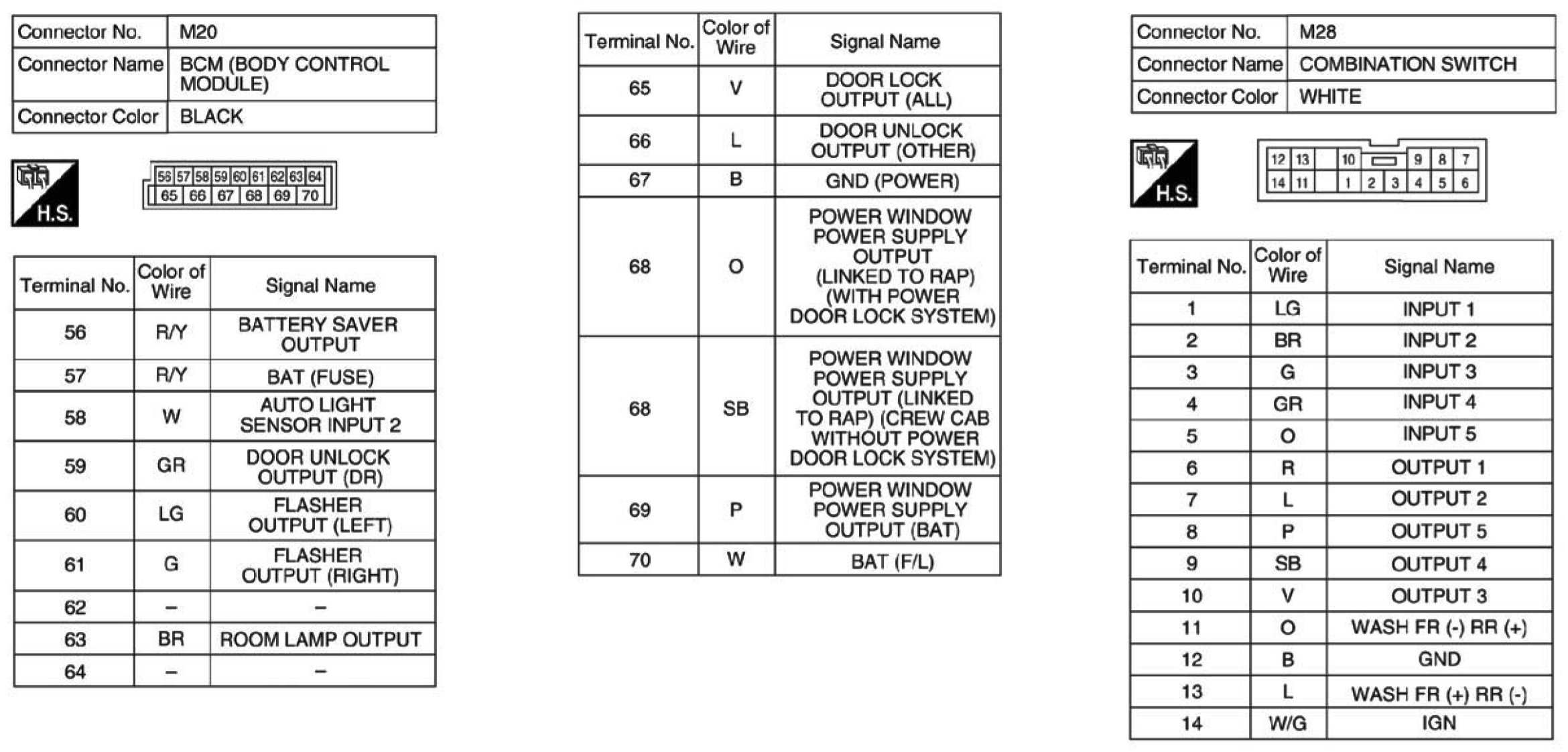

BCM (Body Control Module) Connectors (Part 1):

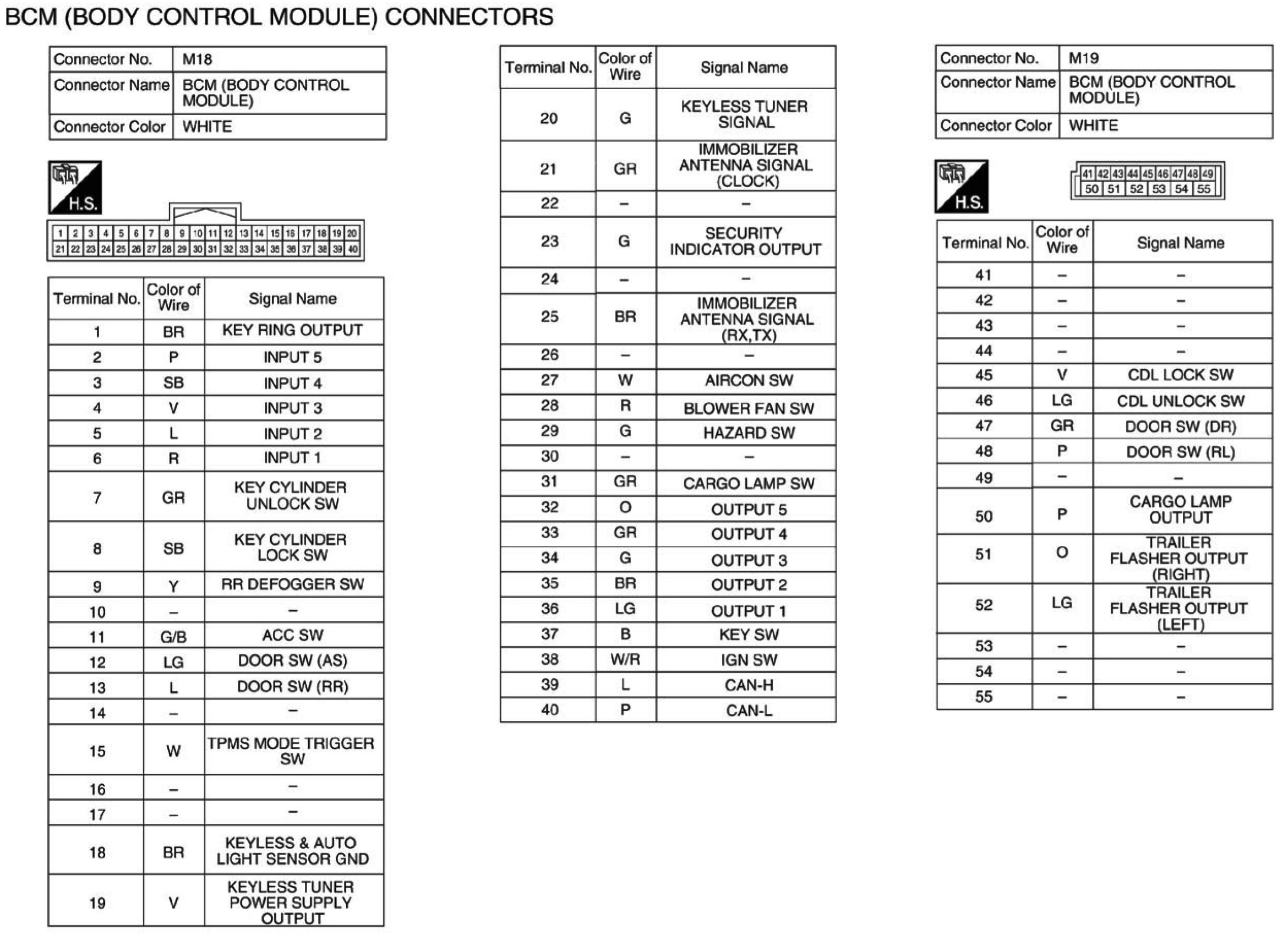

BCM (Body Control Module) Connectors (Part 2):
