Alignment

Wheel Alignment Specifications

Front Suspension

Camber -0.6° ±0.75°
Camber Cross Tolerance 0.0 ±0.50°
Caster 3.00° ±0.75°
Caster Cross Tolerance 0.0° ±0.50°
Total Toe +0.15° ±0.20°
Steering Wheel Angle 0.00° ±3.5°

Rear Suspension

Camber -0.5° ±0.75°
Camber Cross Tolerance 0.0° ±0.75°
Total Toe +0.2° ±0.20°
Thrust Angle 0.0° ±0.20°

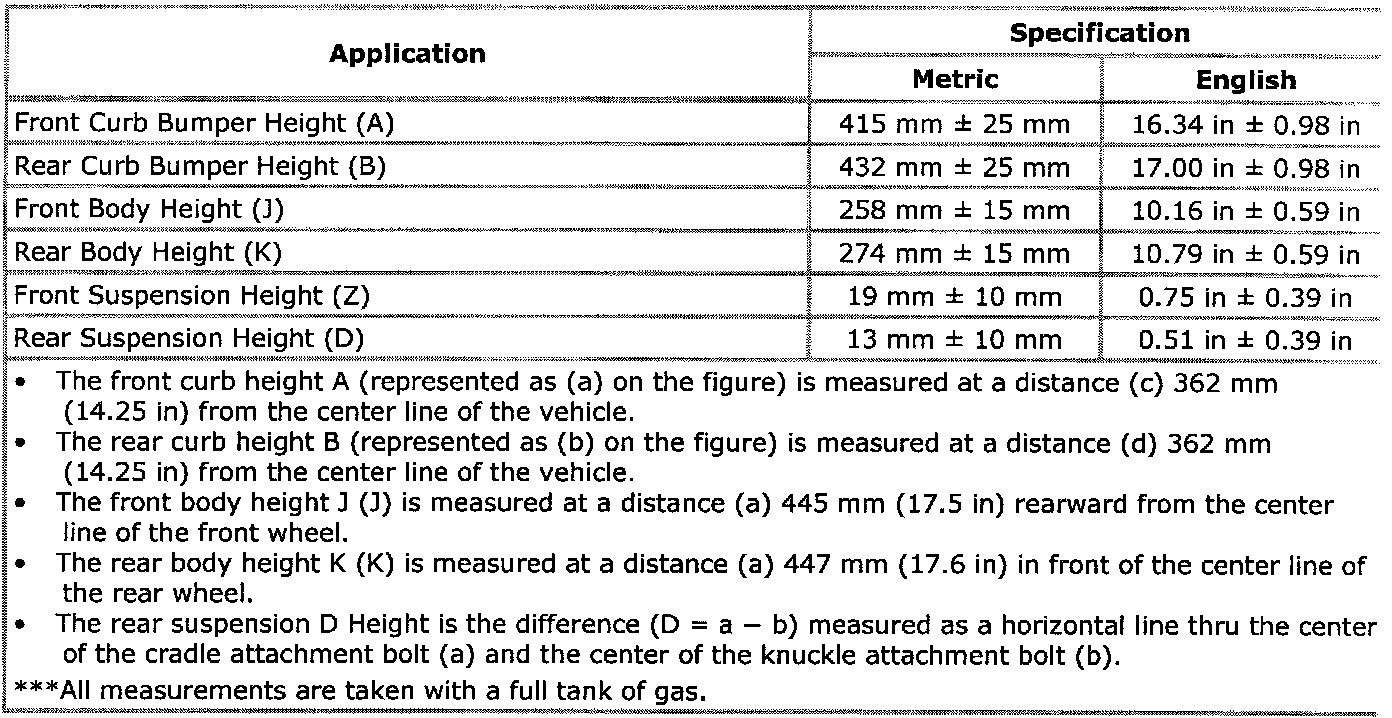

Trim Height Specifications

Trim Height Specifications:

Measuring Z Height

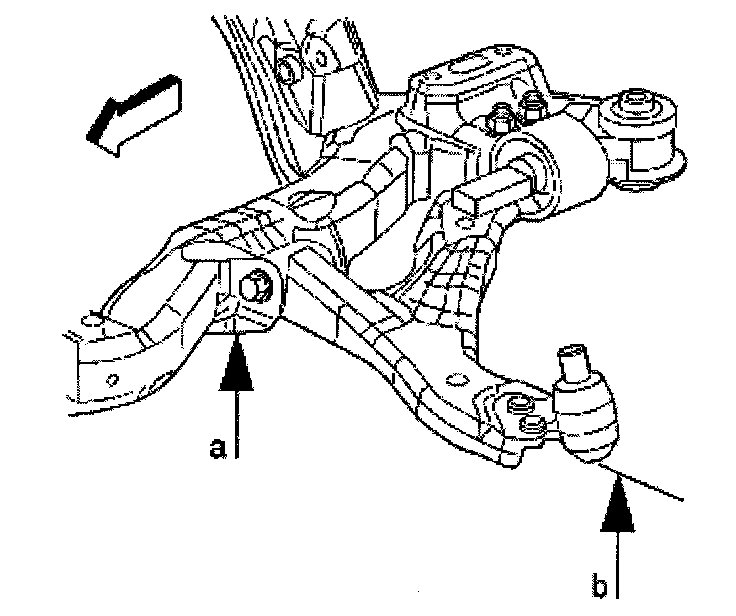

Measuring Z Height:

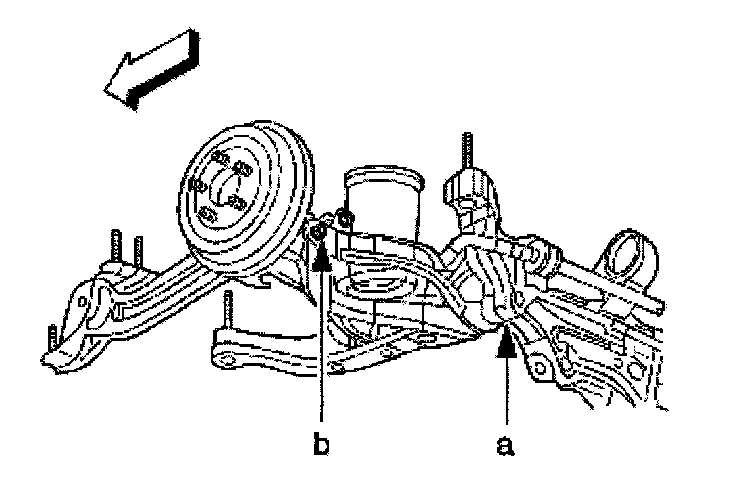

Measuring D Height

Measuring D Height:

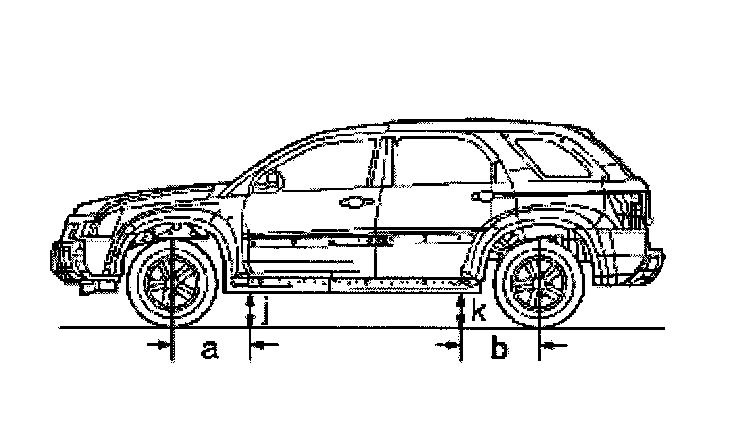

Measuring J or K Height

Measuring J or K Height:

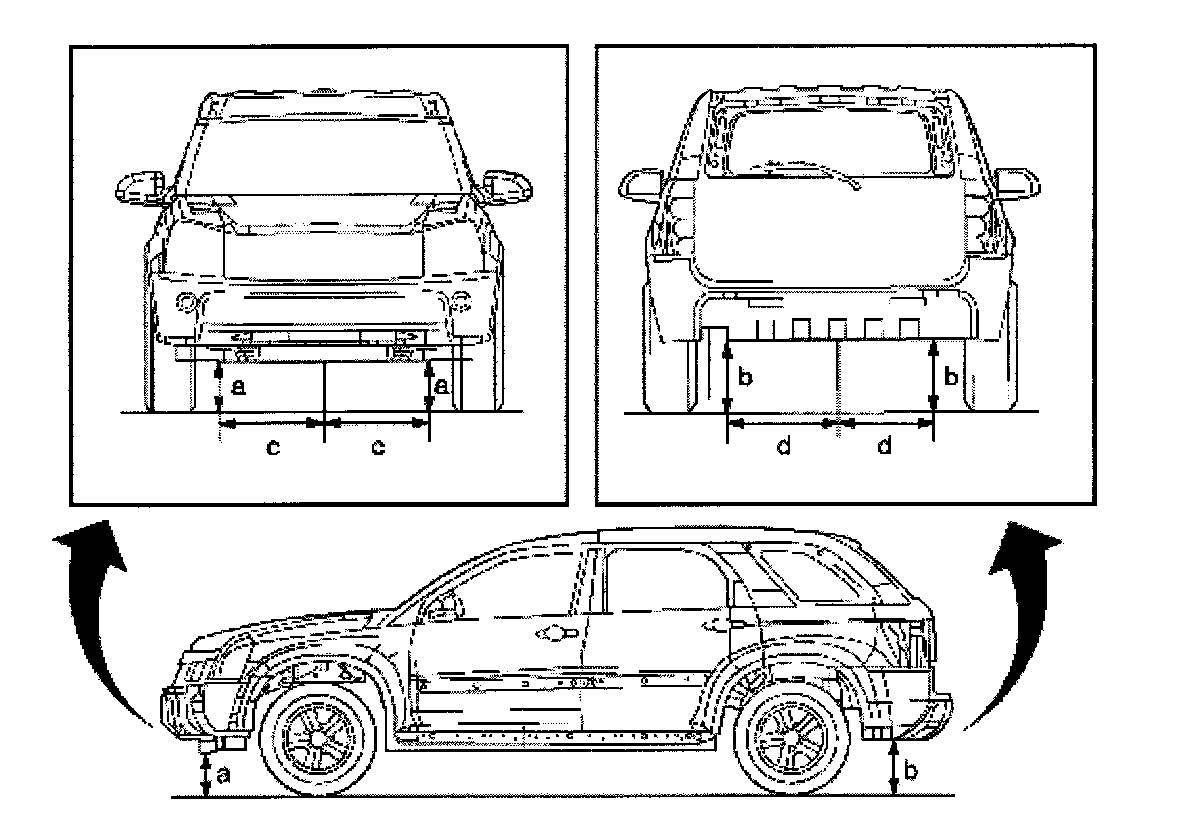

Measuring A or B Height

Measuring A or B Height:
