Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

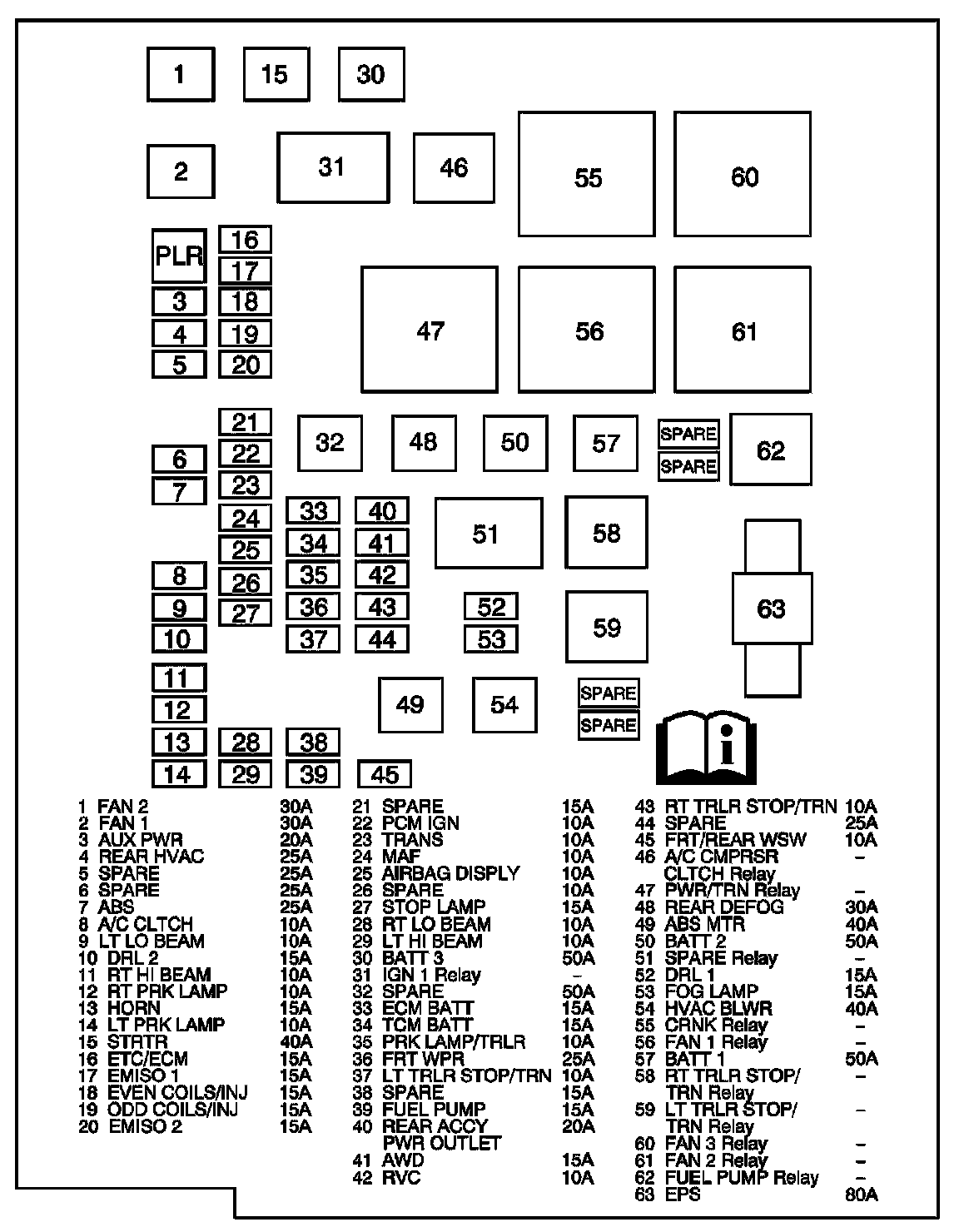

Fuse Block - Underhood Label
Fuse Block - Underhood Label:
