Ignition Relay: Locations

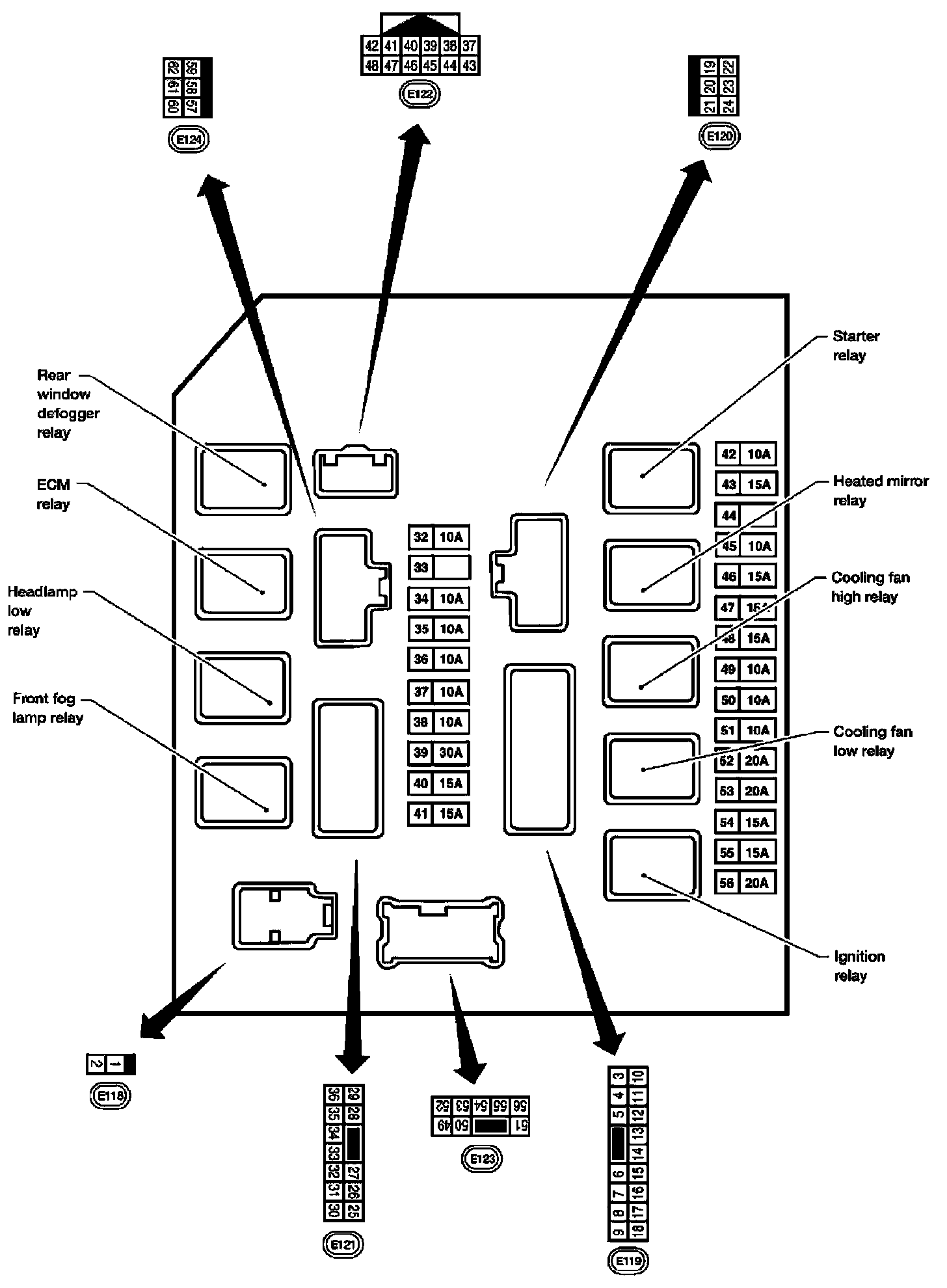

Fuse, Connector and Terminal Arrangement
Fuse, Connector And Terminal Arrangement:
