Combination Switch System Symptoms: Symptom Table

Combination Switch System Symptoms: Symptom Table

1. Perform the data list of SDT to check for any malfunctioning item.

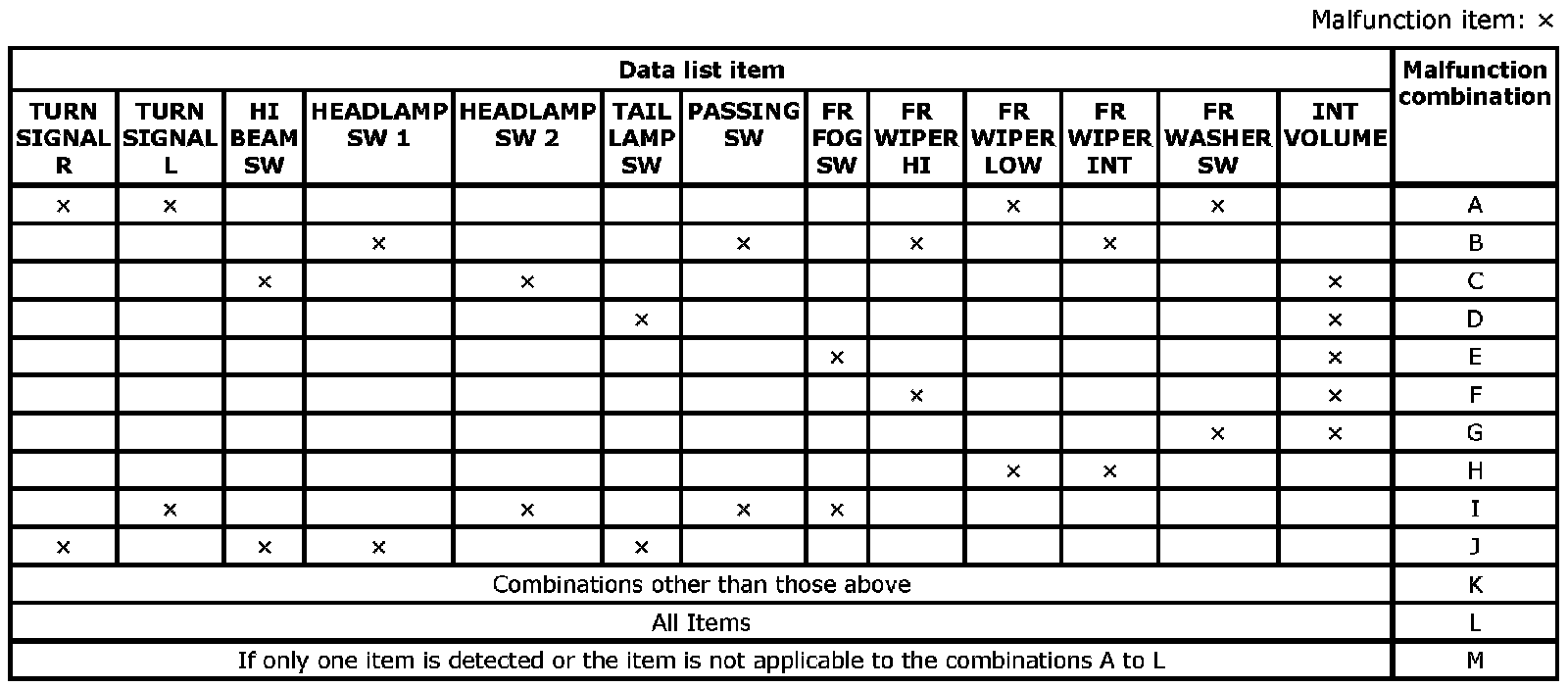

2. Check the malfunction combinations.

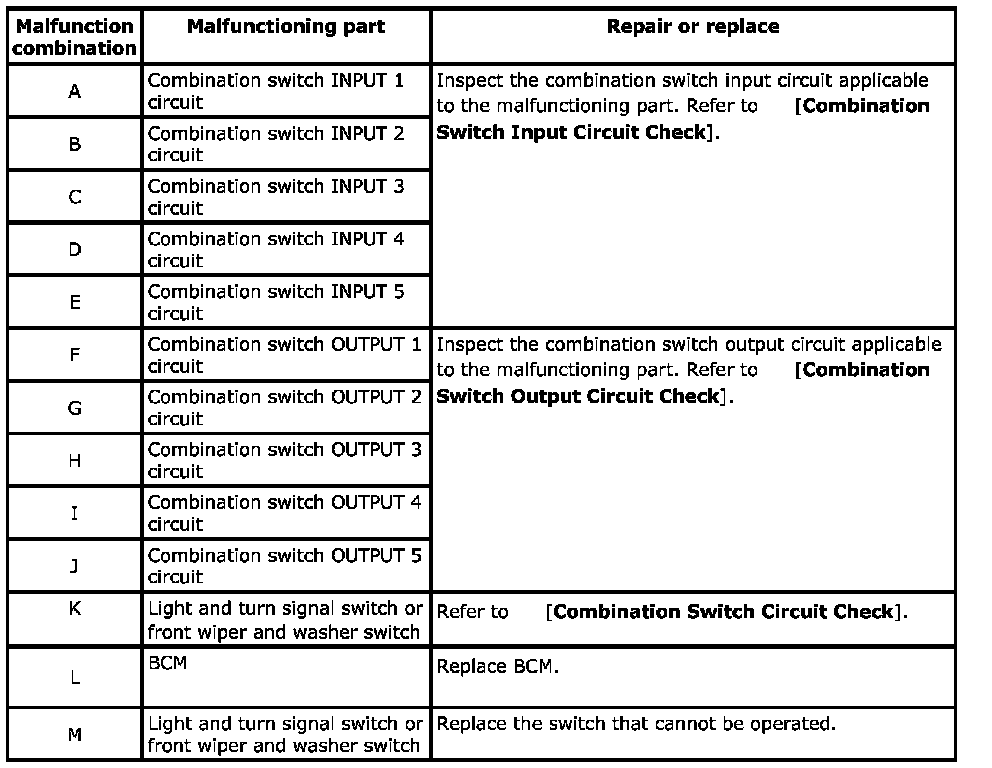

3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
