Home >> Suzuki >> 2009 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seats

Seats

Front Seat: Component

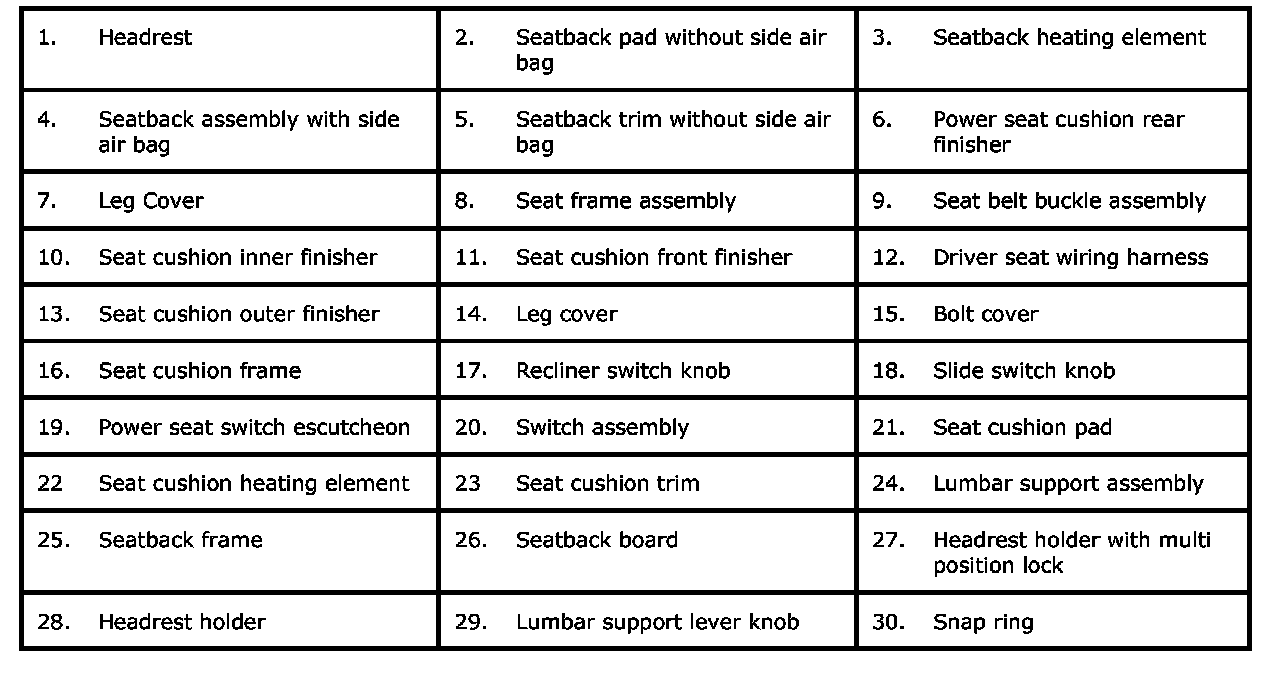

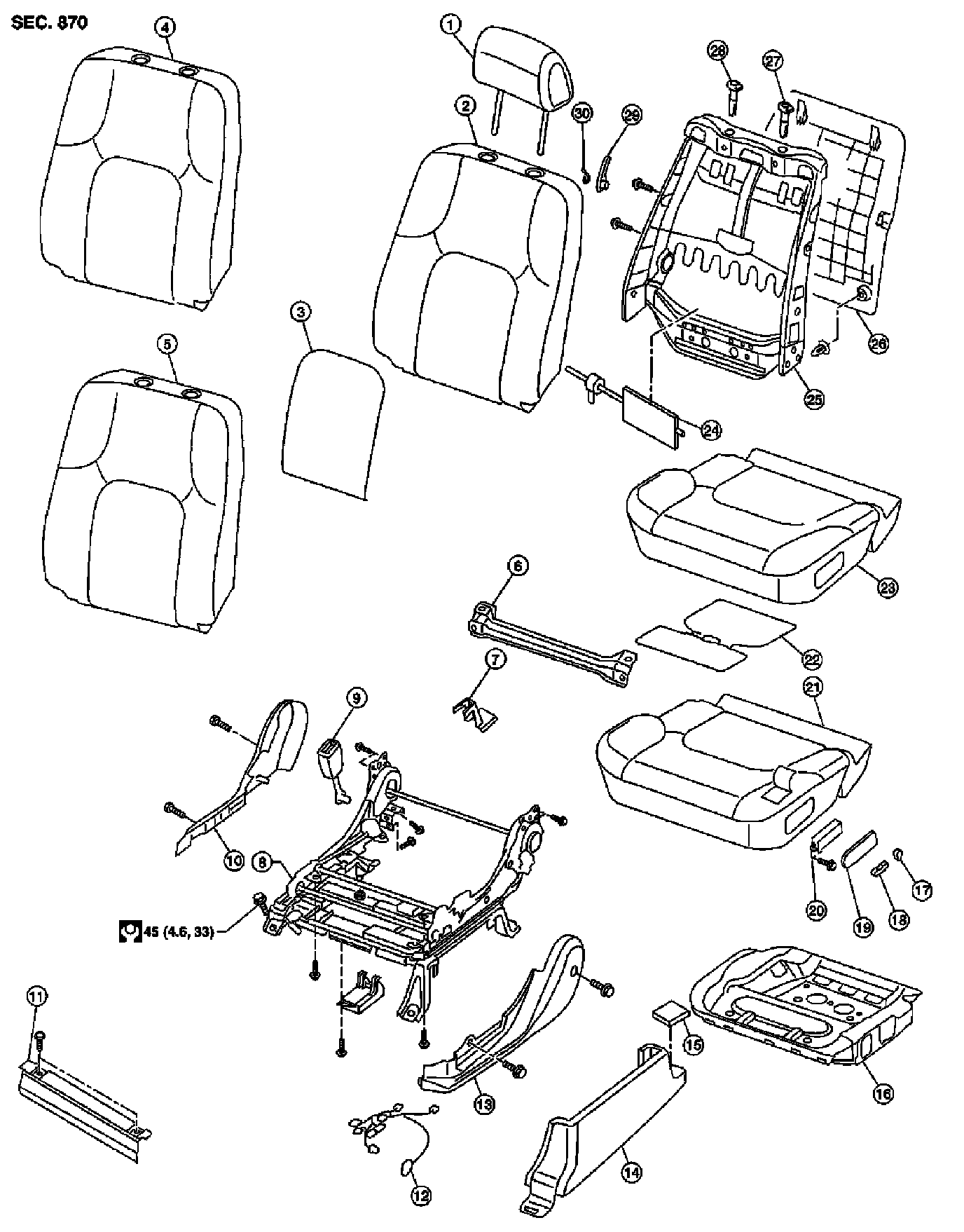

Power Driver Seat

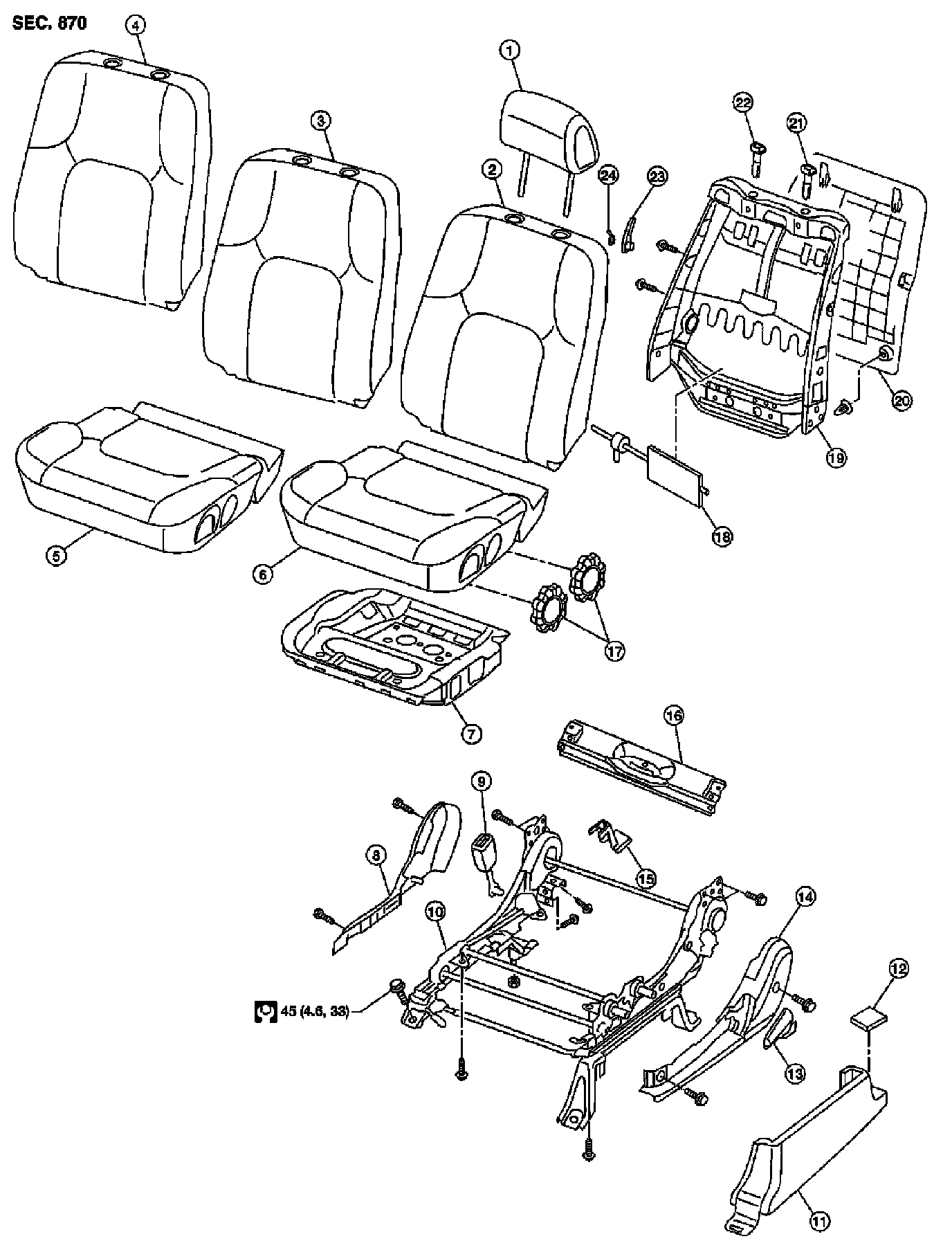

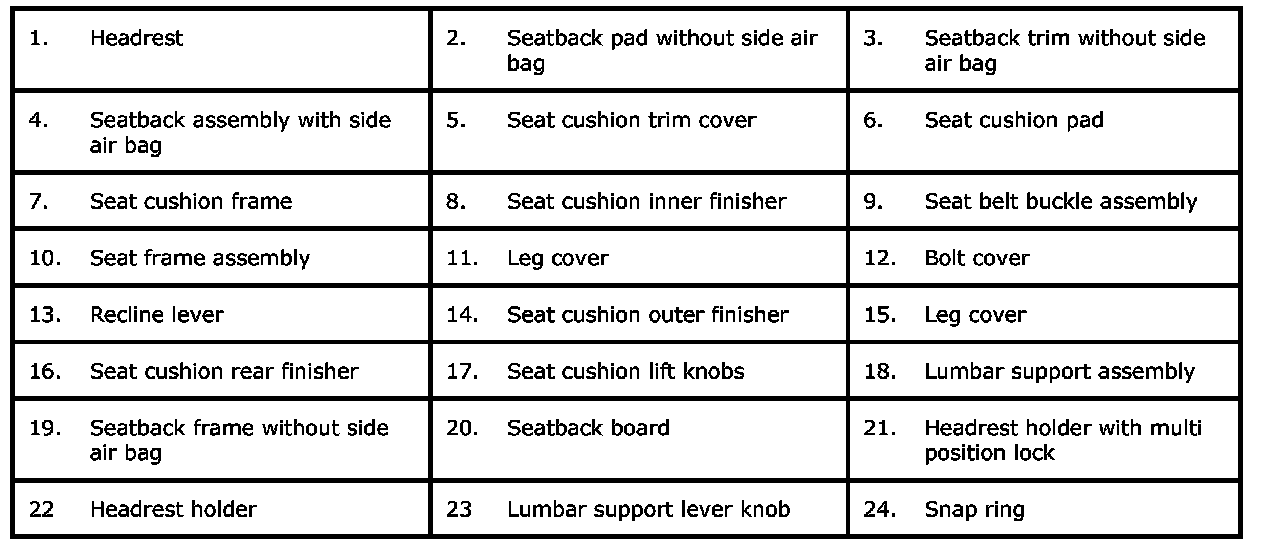

Manual Driver Seat

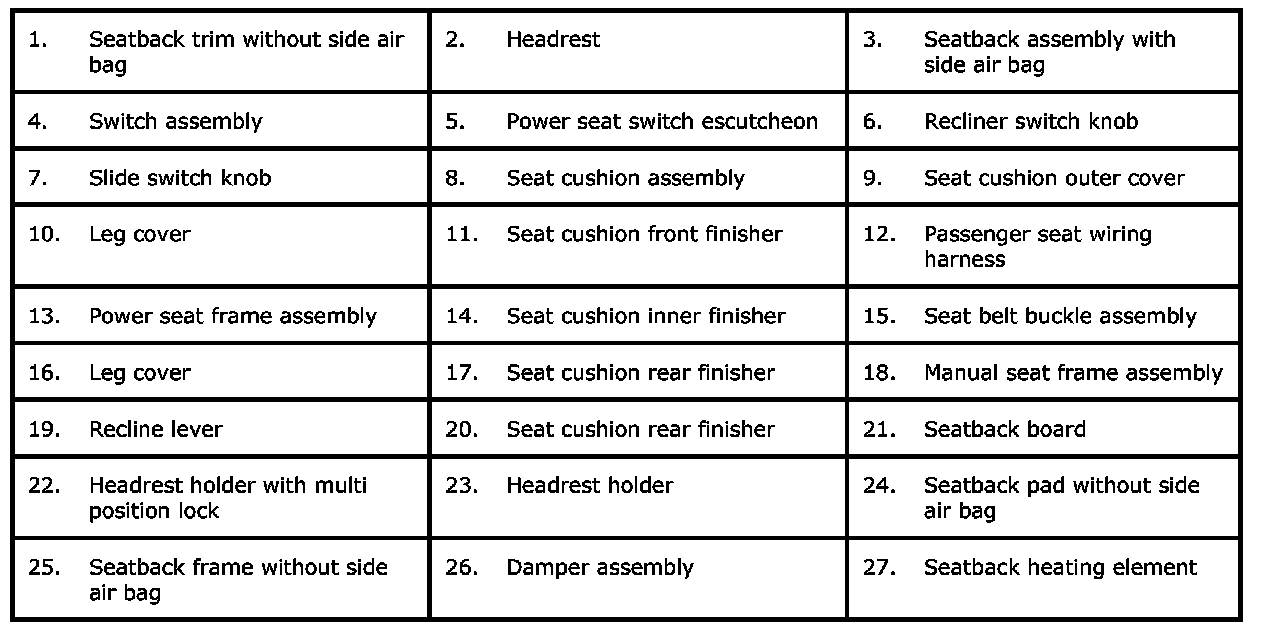

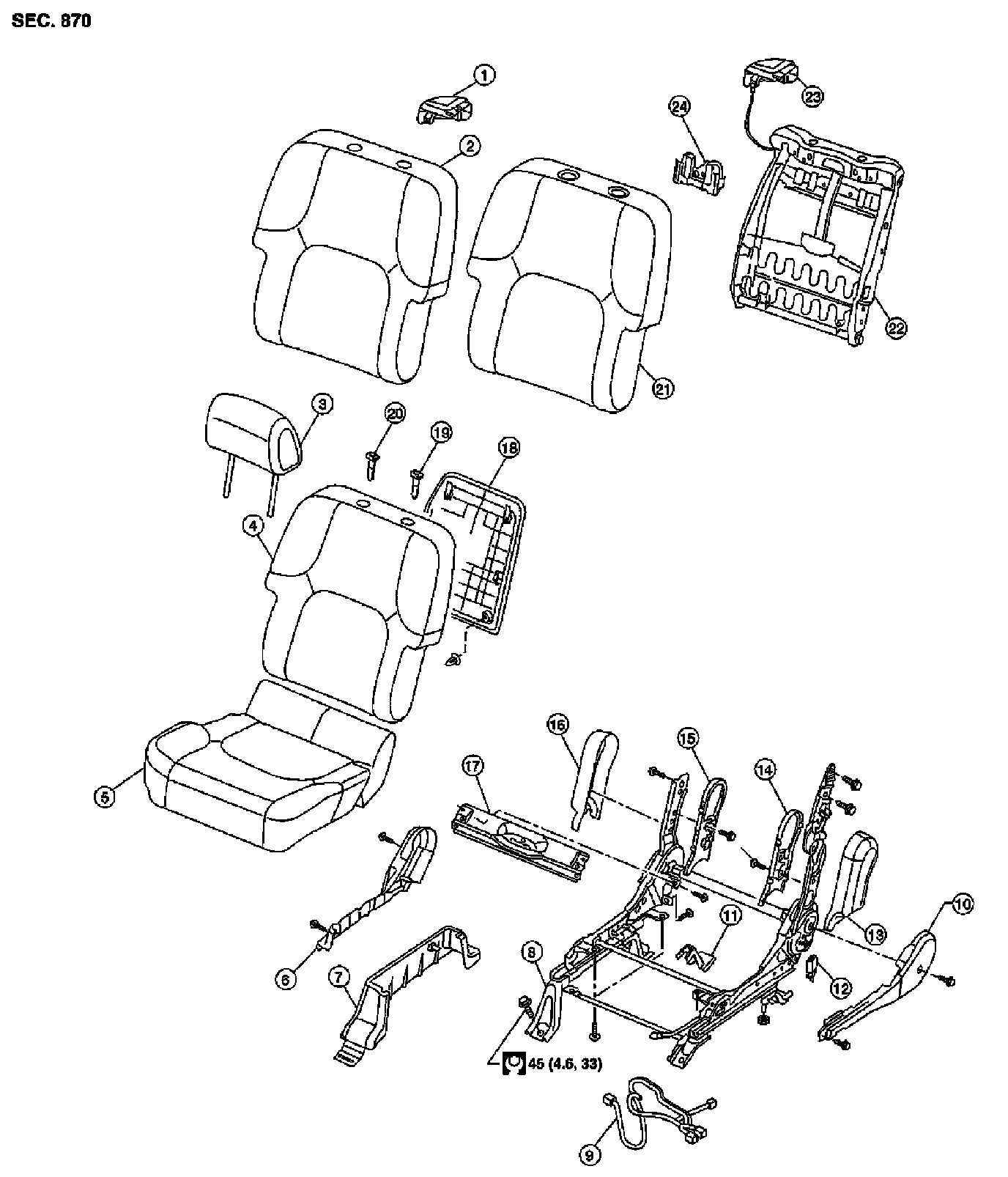

Conventional Passenger Seat

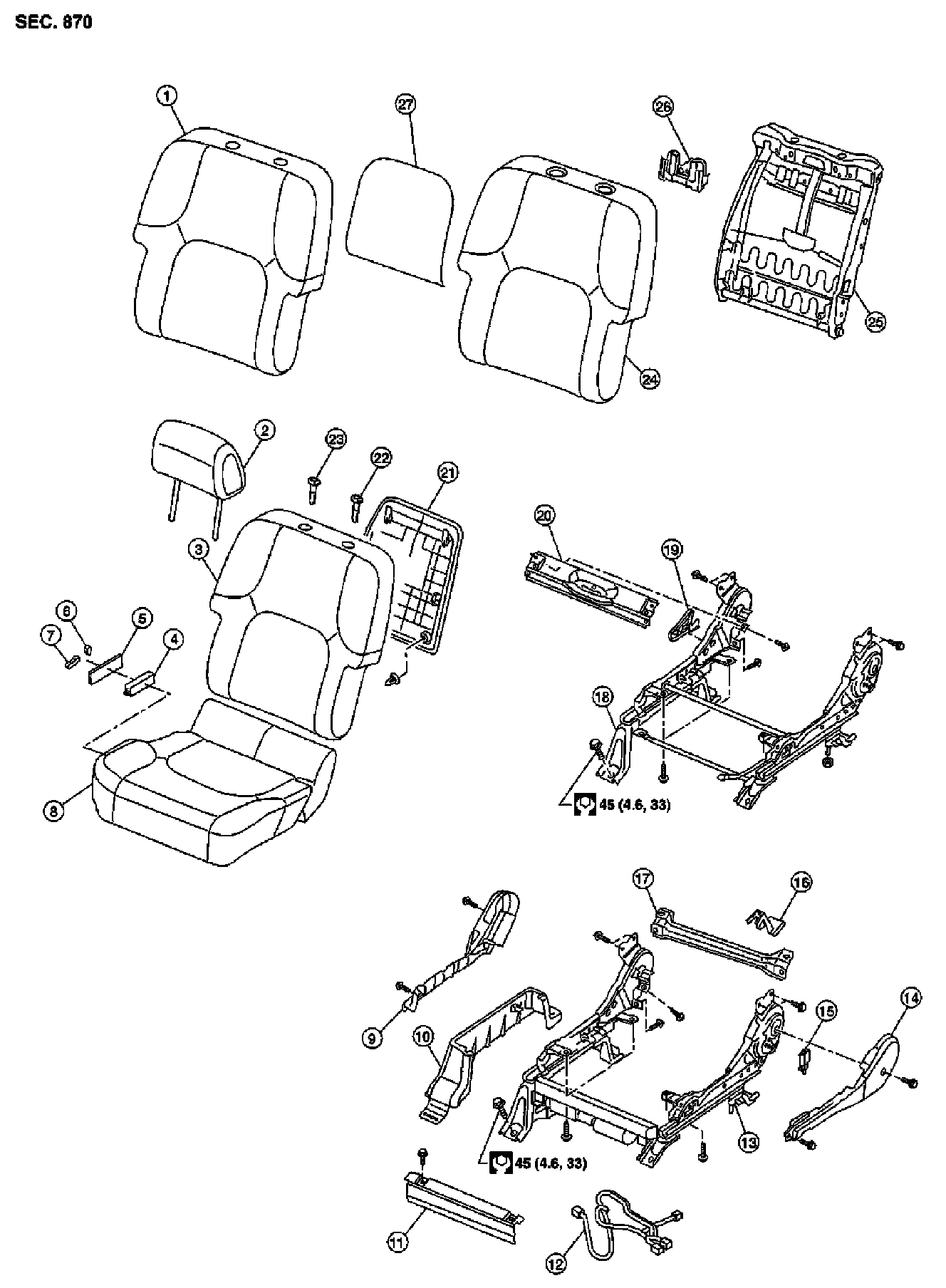

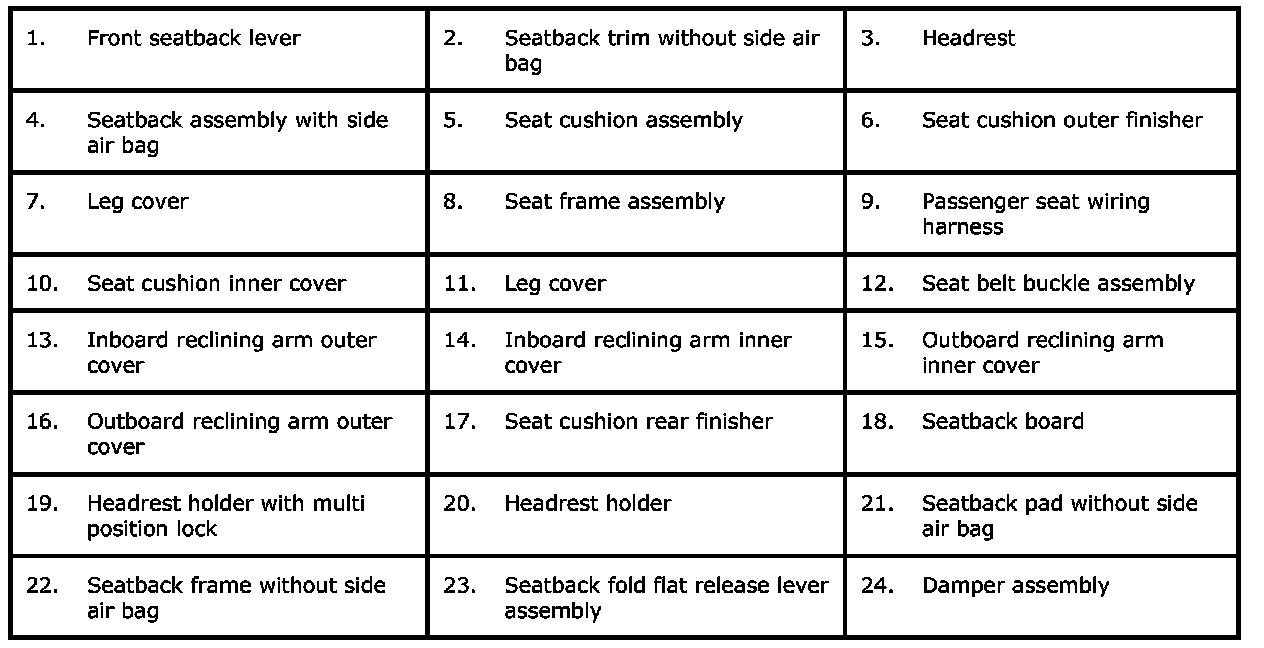

Fold Flat Passenger Seat
