lemon-mirror
:
Home
>>
Suzuki
>>
2009
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
Heating and Air Conditioning

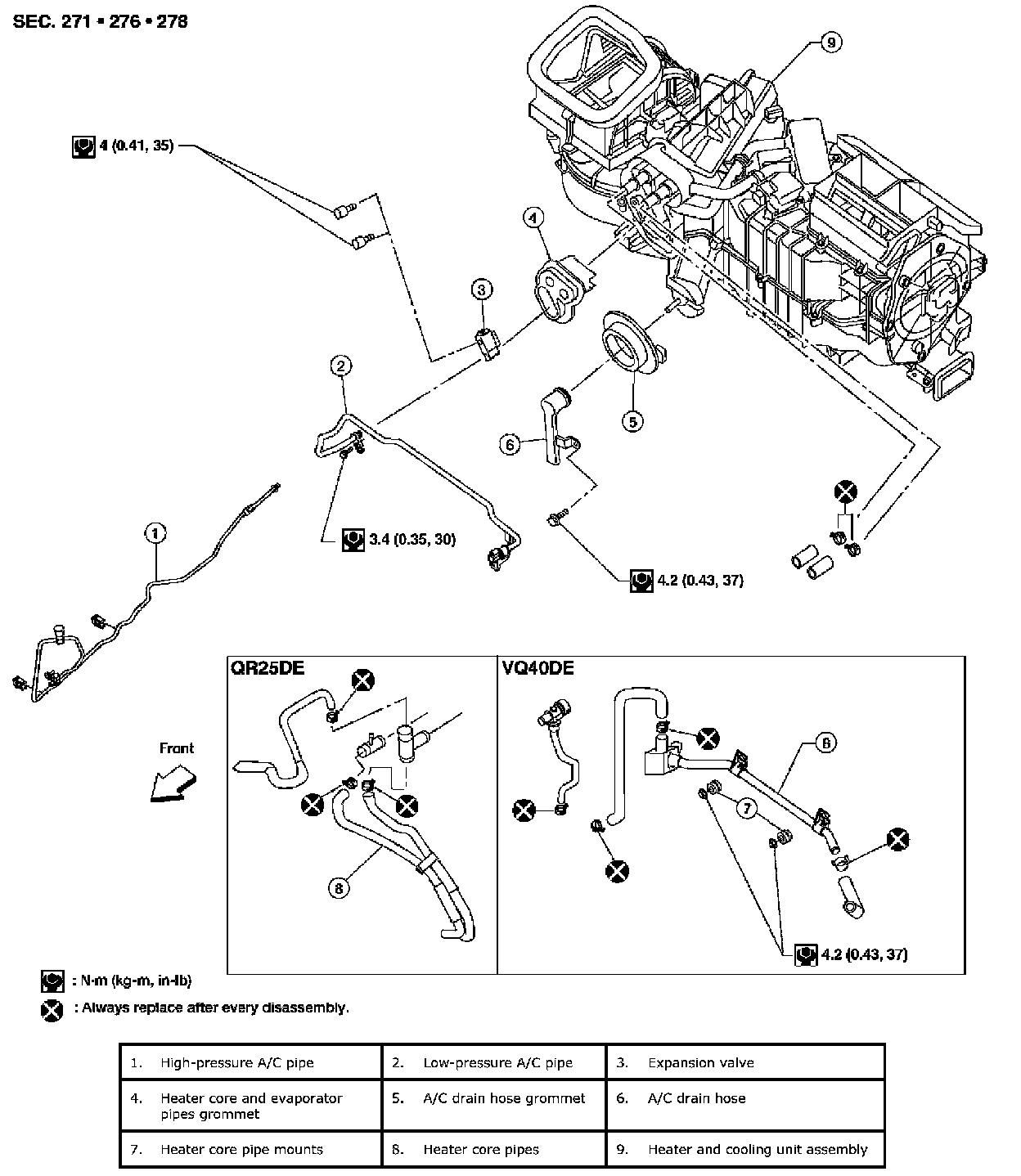

Heater & Cooling Unit Assembly: Component
