Trim Height Specifications


Trim Height Specifications

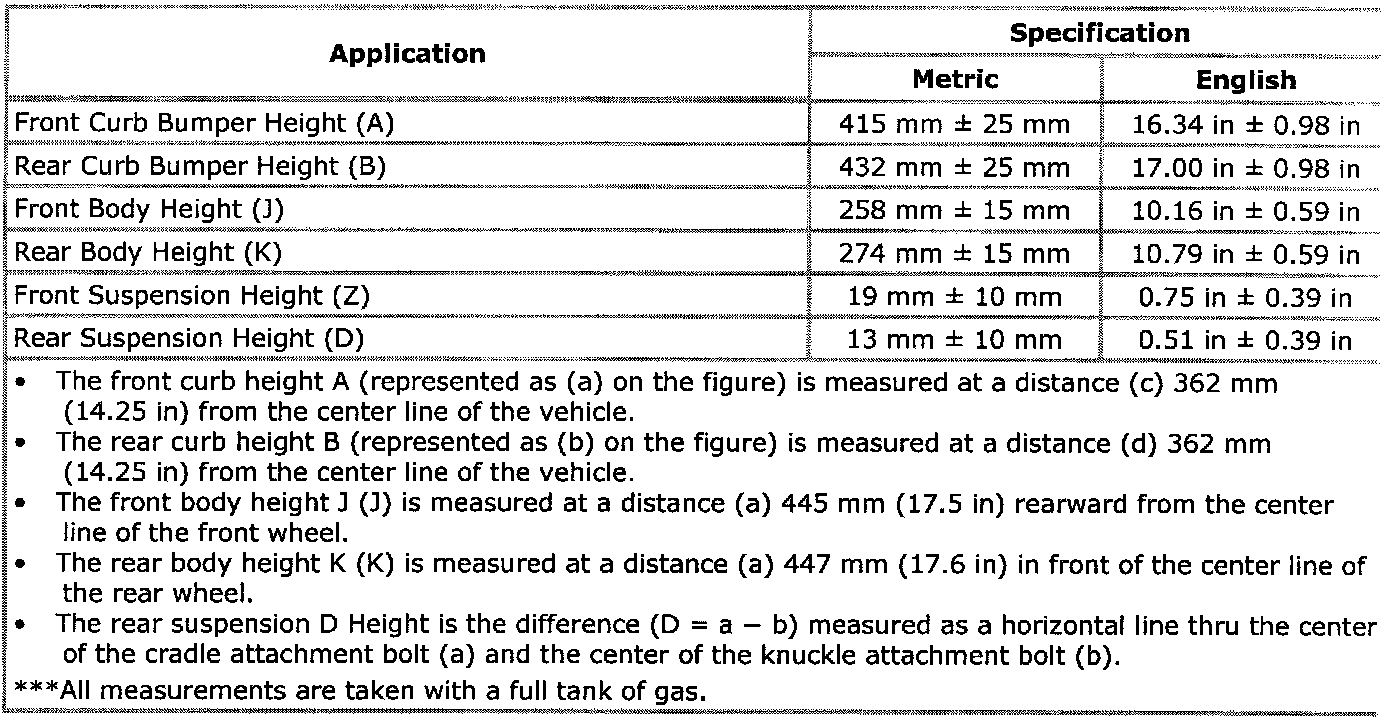

Trim Height Specifications:

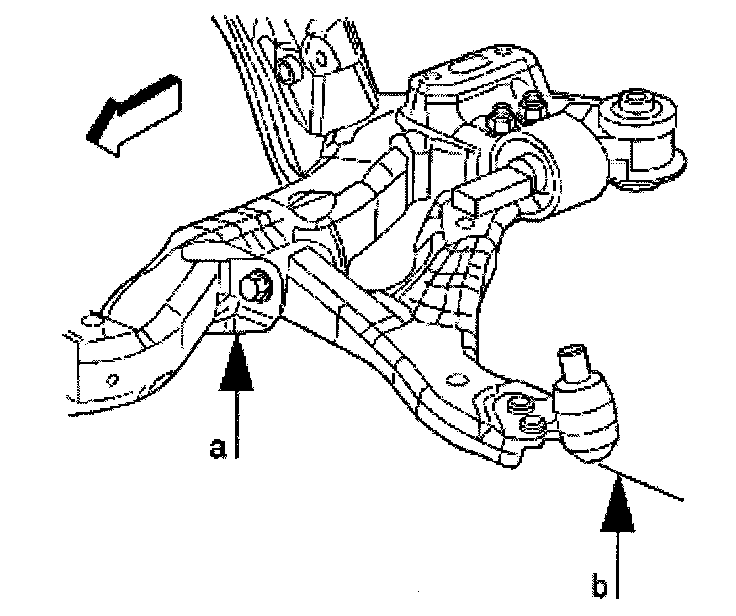

Measuring Z Height

Measuring Z Height:

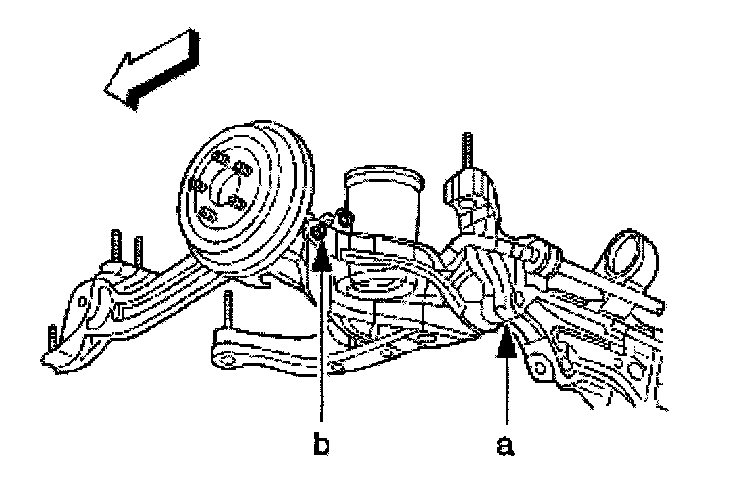

Measuring D Height

Measuring D Height:

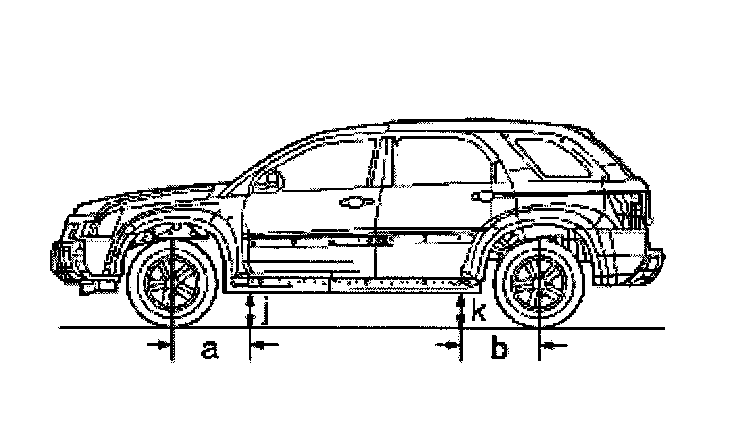

Measuring J or K Height

Measuring J or K Height:

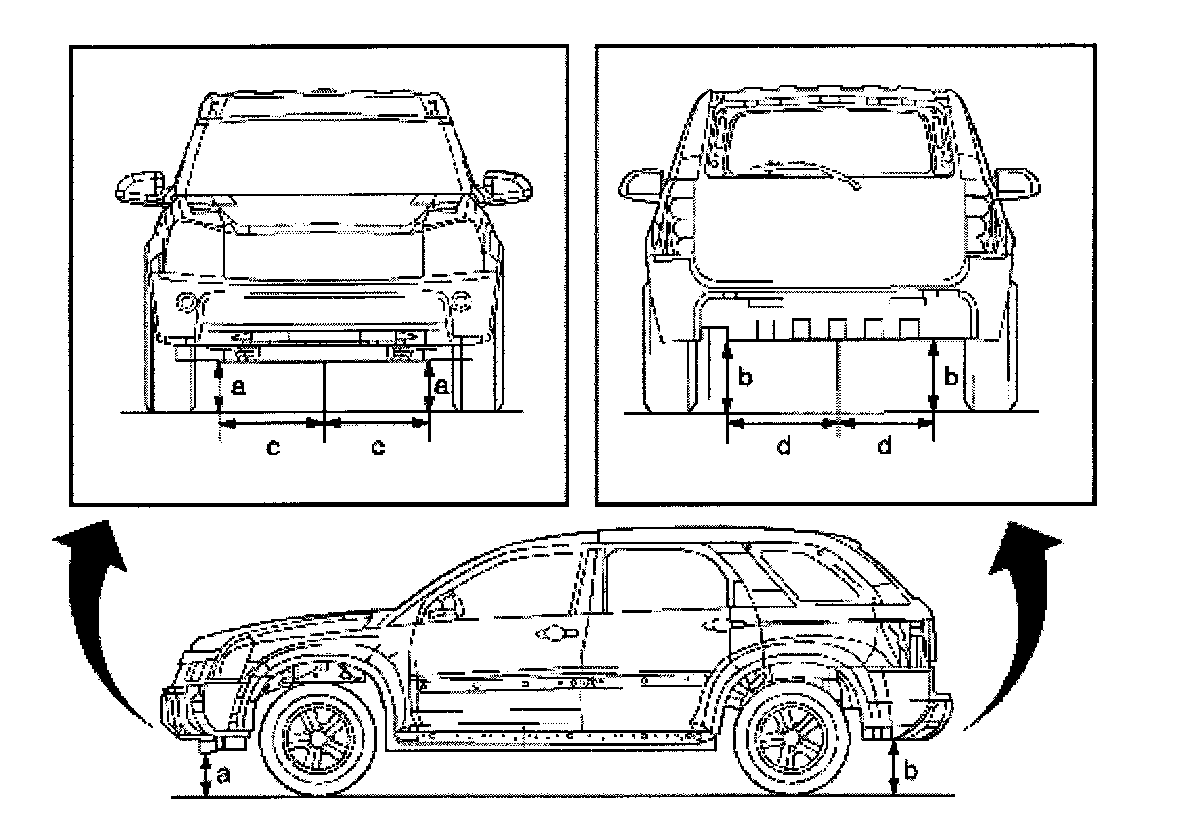

Measuring A or B Height

Measuring A or B Height:
