Components

Master Electrical Component List

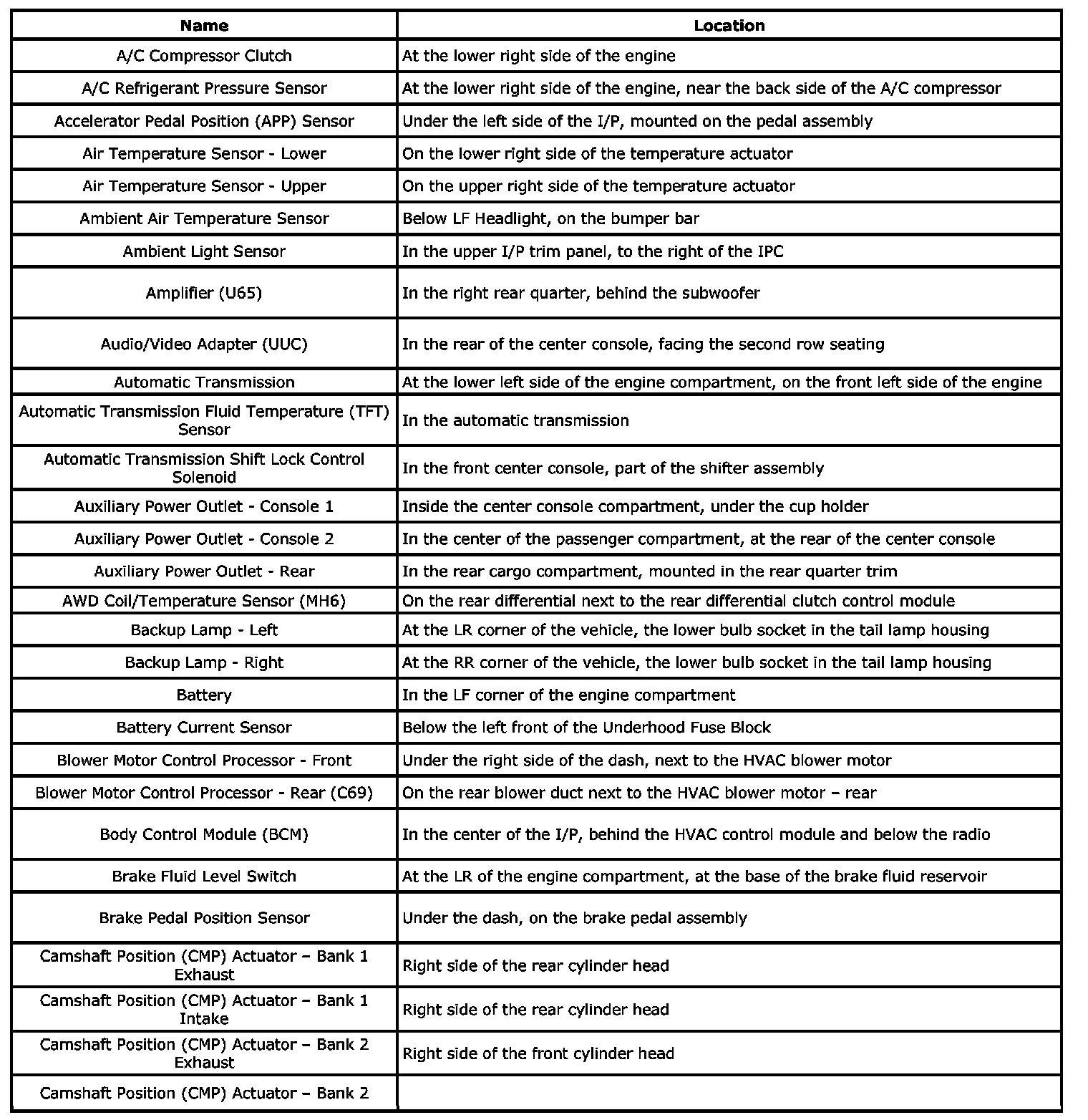

A/C - Ca:

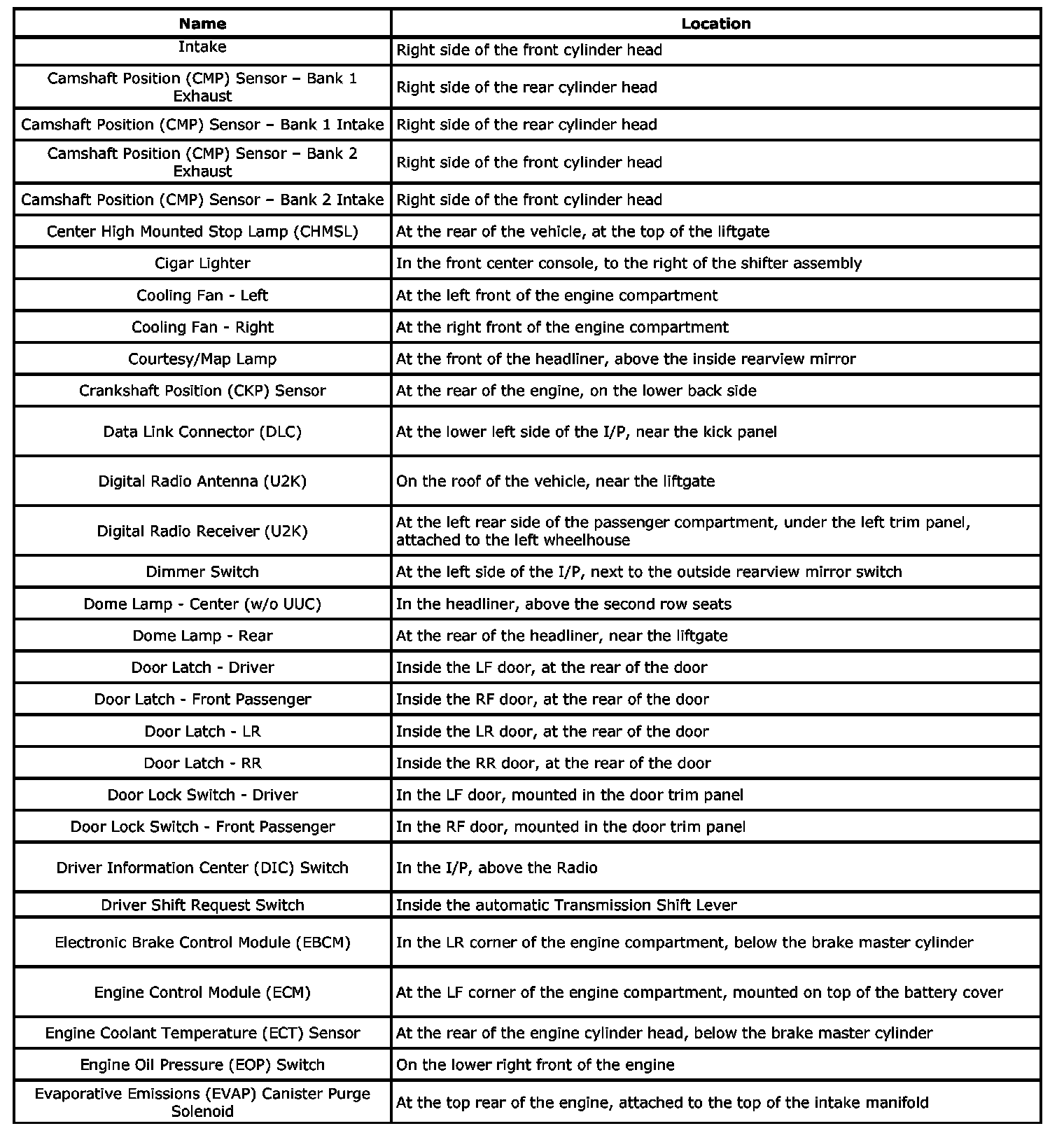

Ca - Ev:

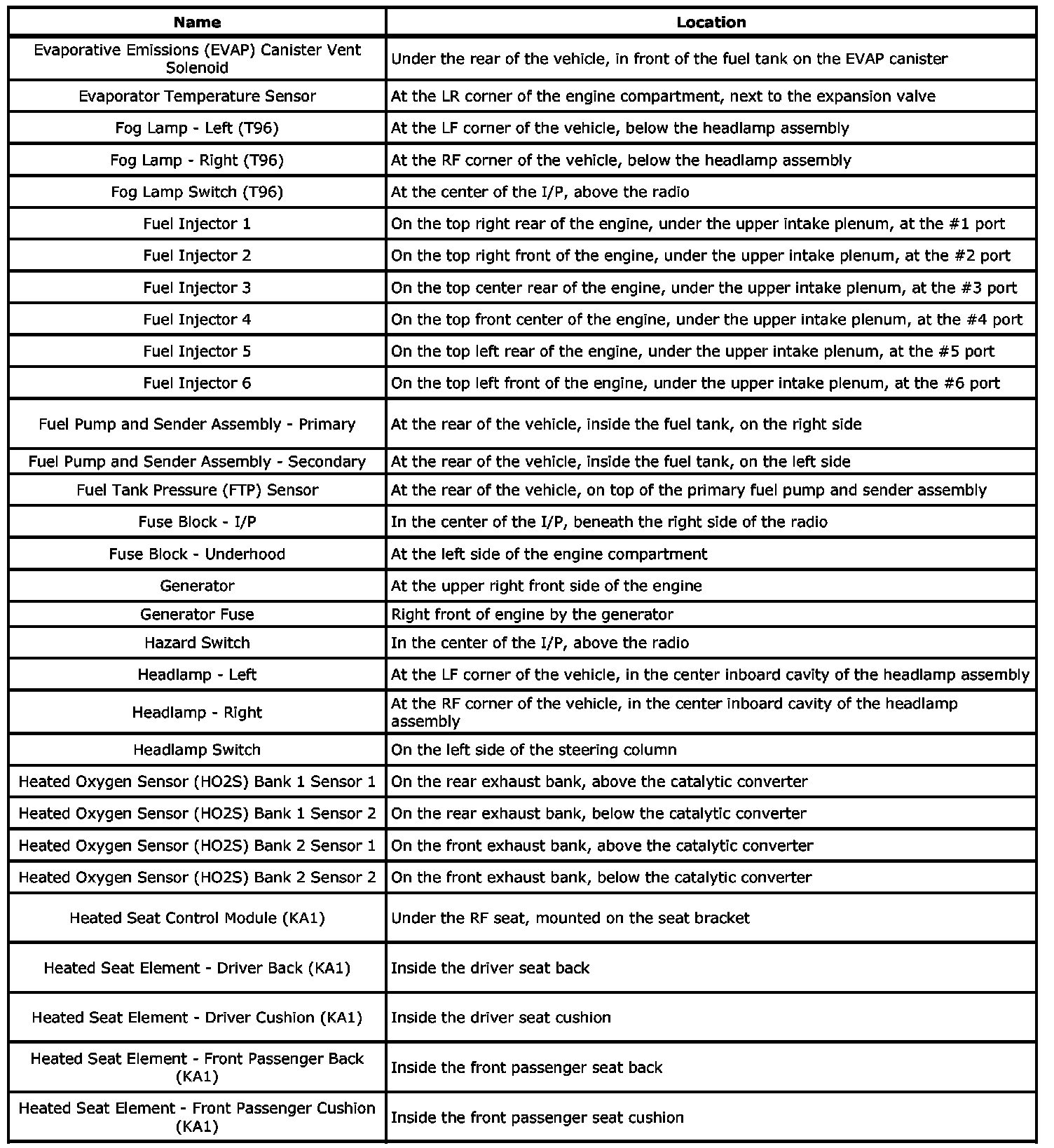

Ev - He:

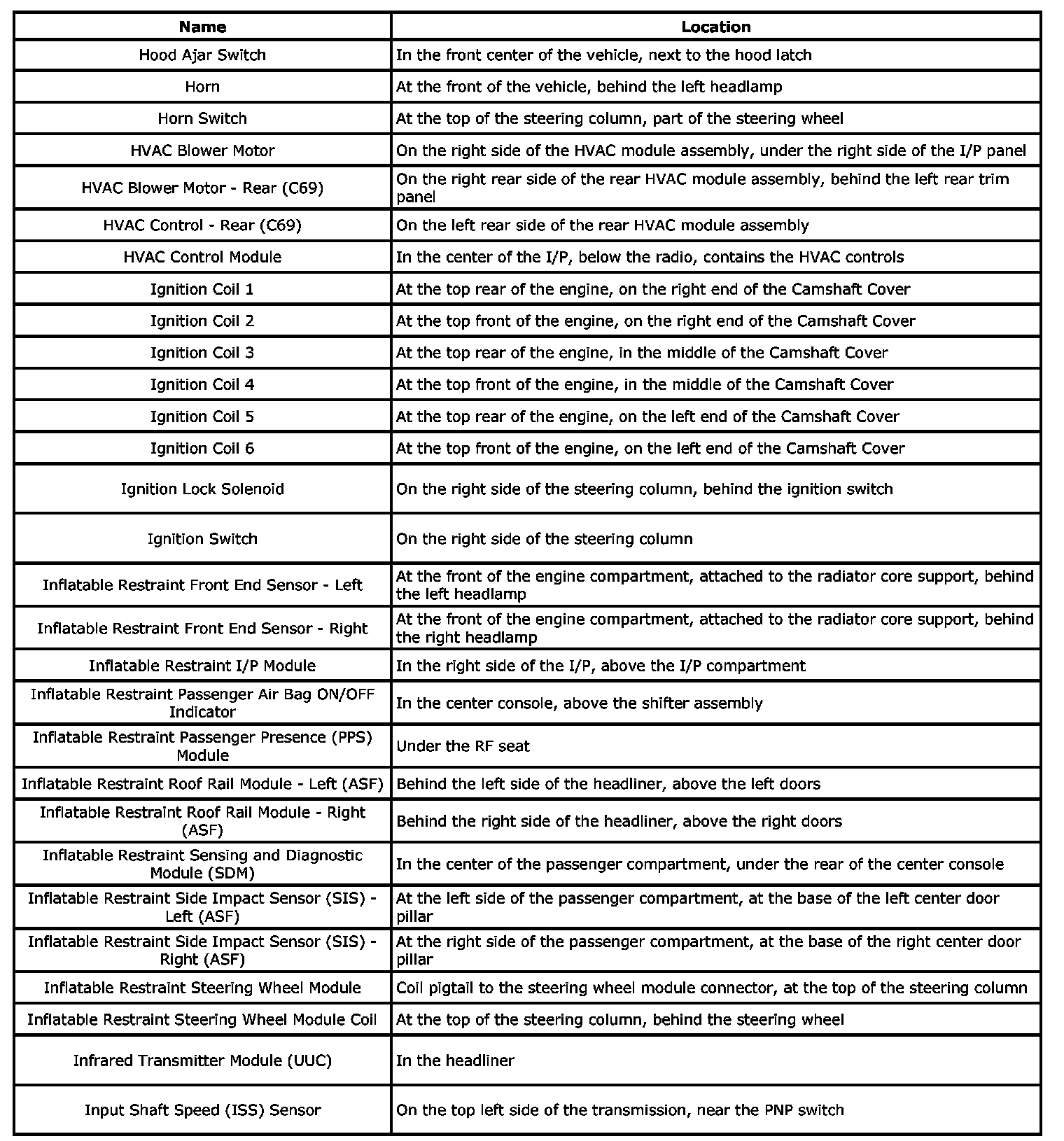

Ho - In:

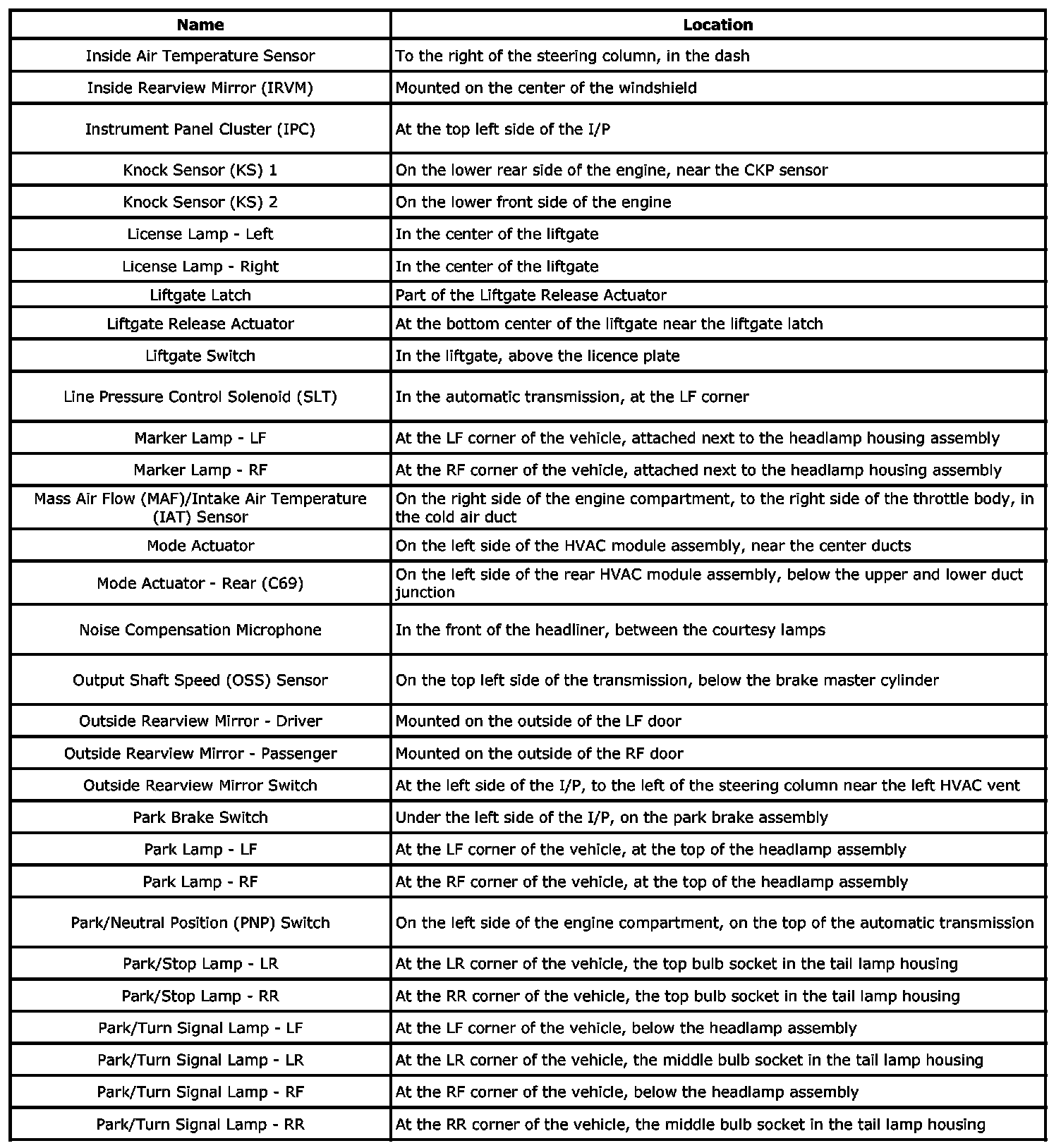

In - Pa:

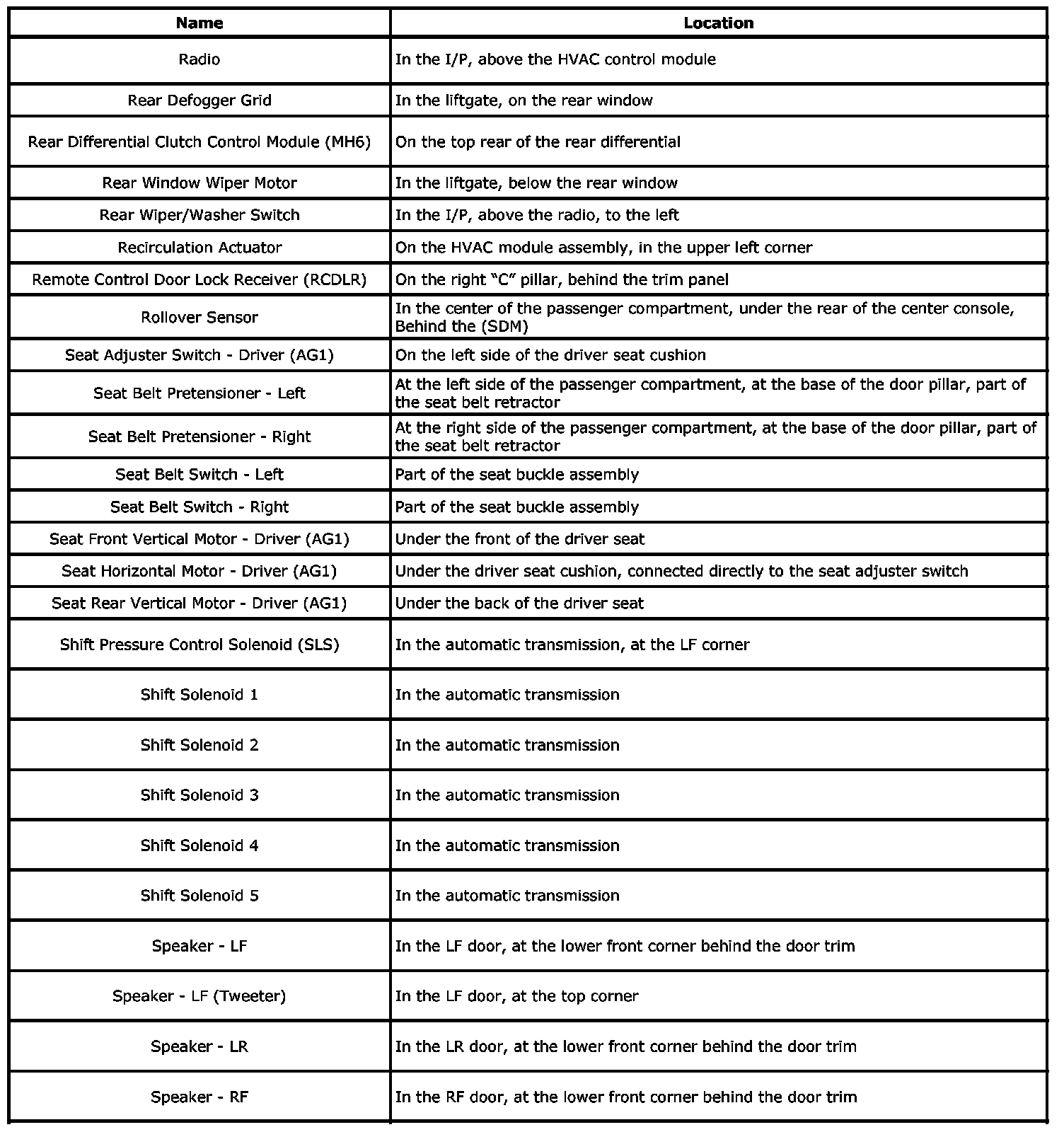

Ra - Sp:

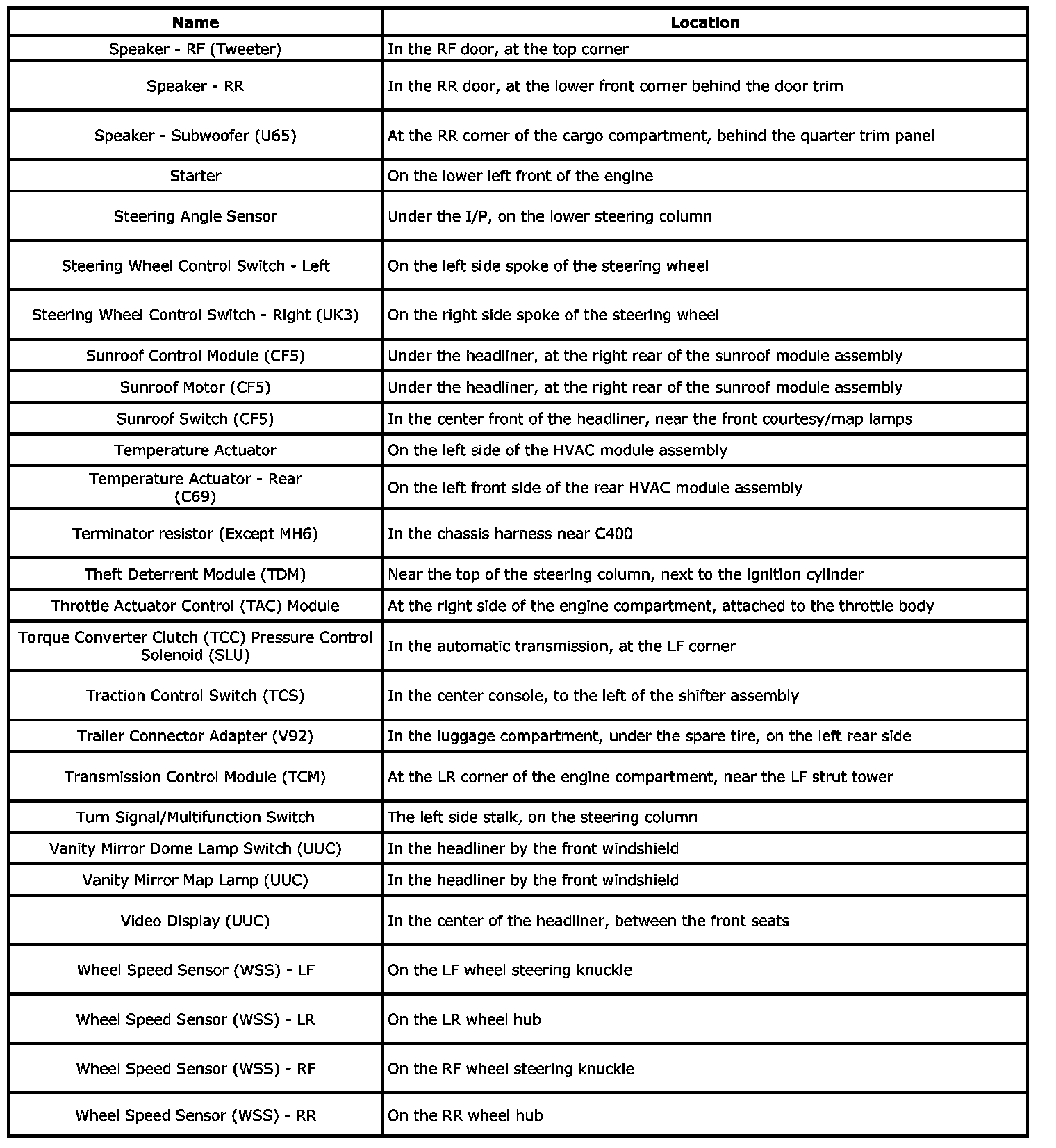

Sp - Wh:

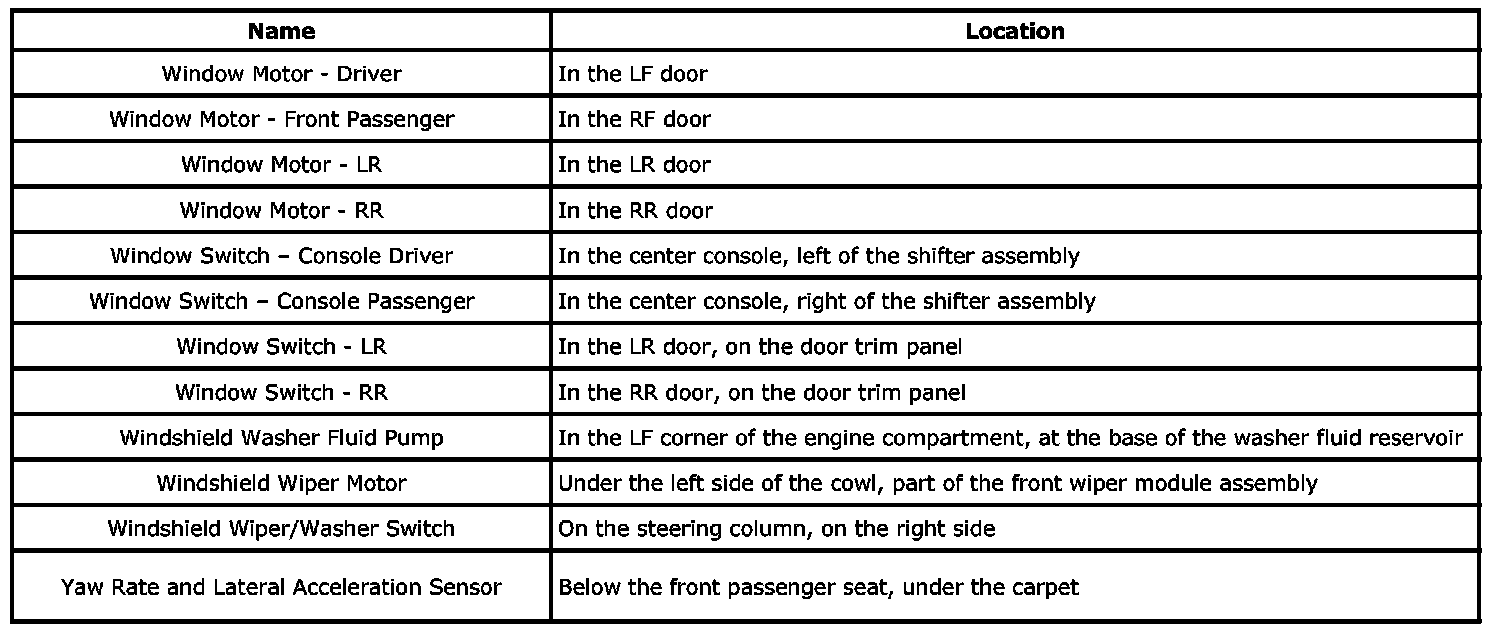

Wi - Ya:
