Control Module, Transfer Case
Control Module, Transfer Case

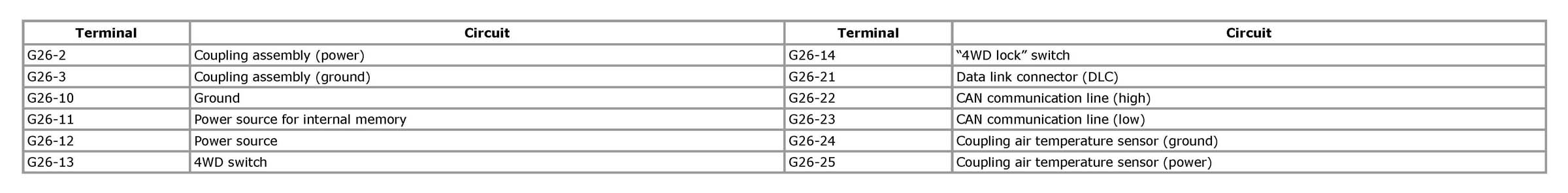

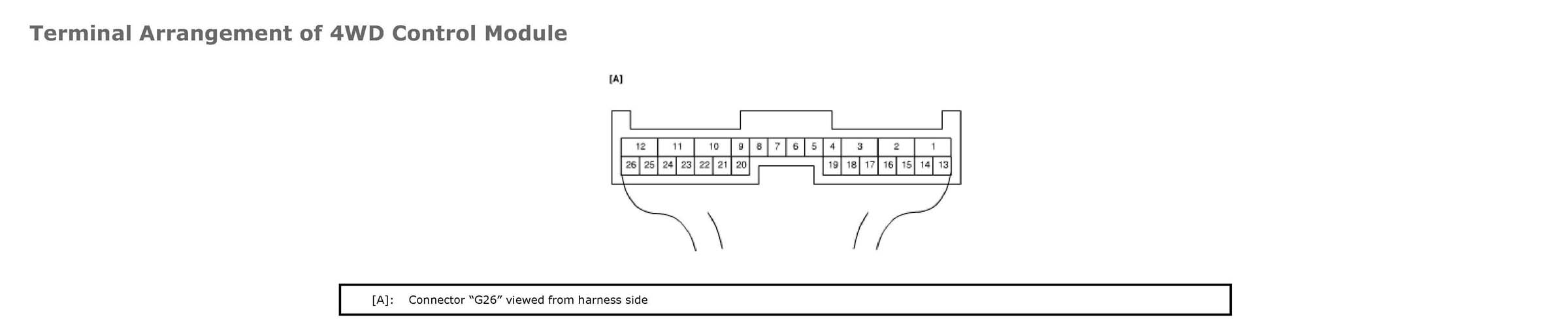

Terminal Arrangement of 4WD Control Module
