Engine Control Module

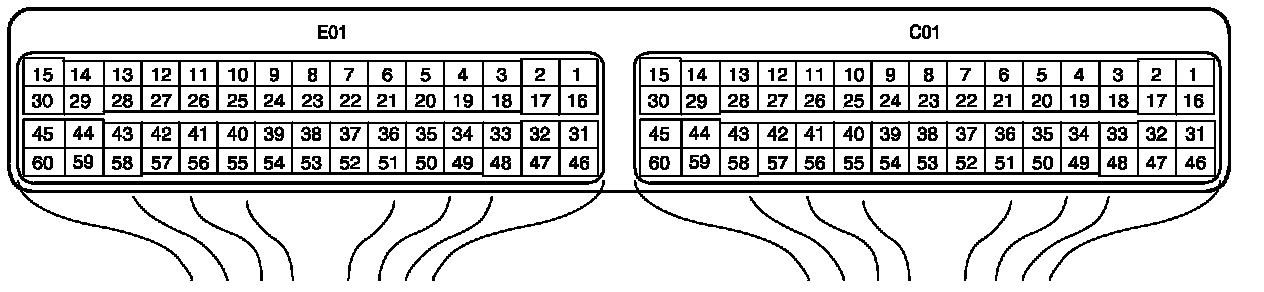

Terminal Arrangement Of ECM Coupler (Viewed From Harness Side):

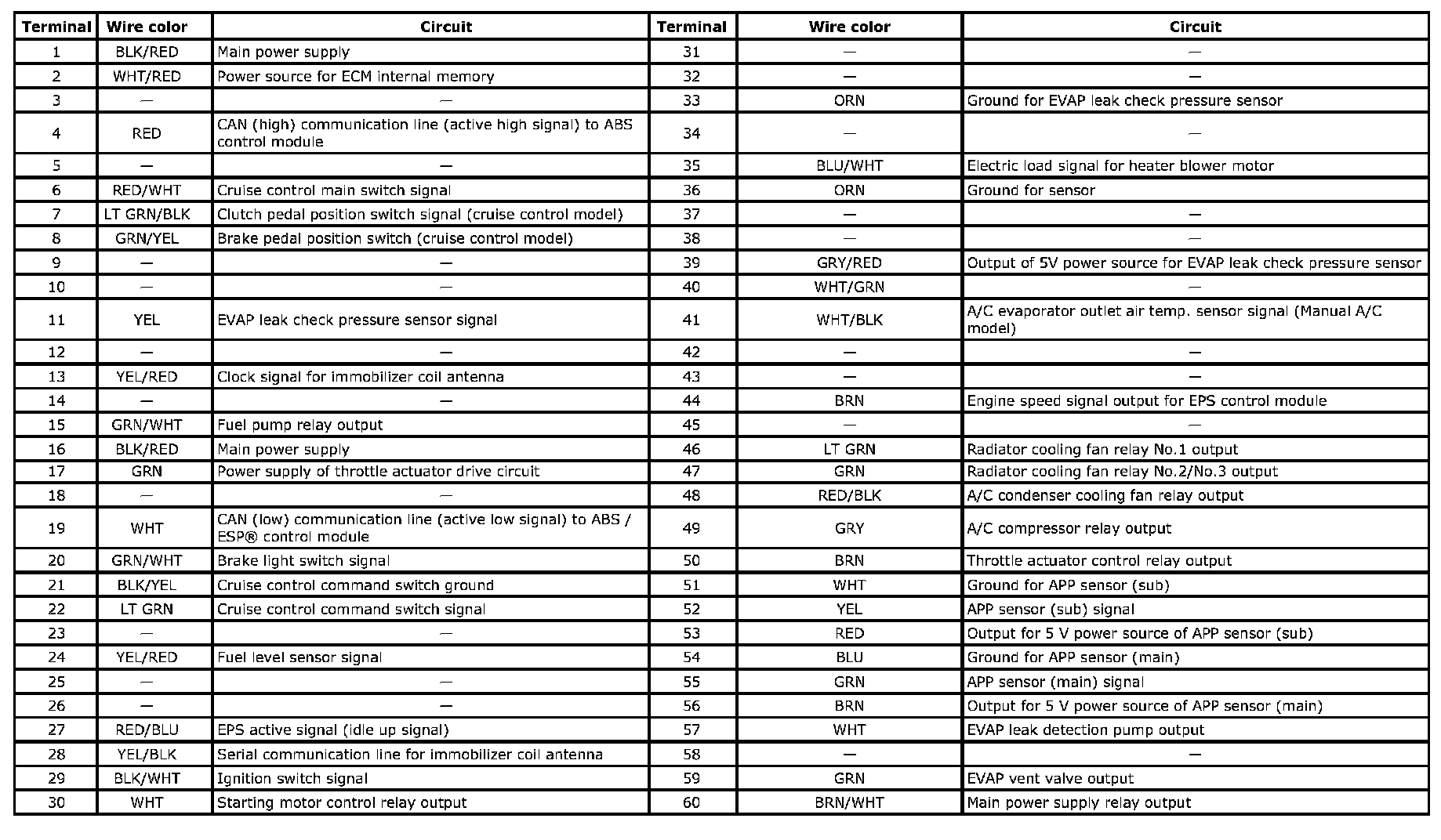

Connector: C01:

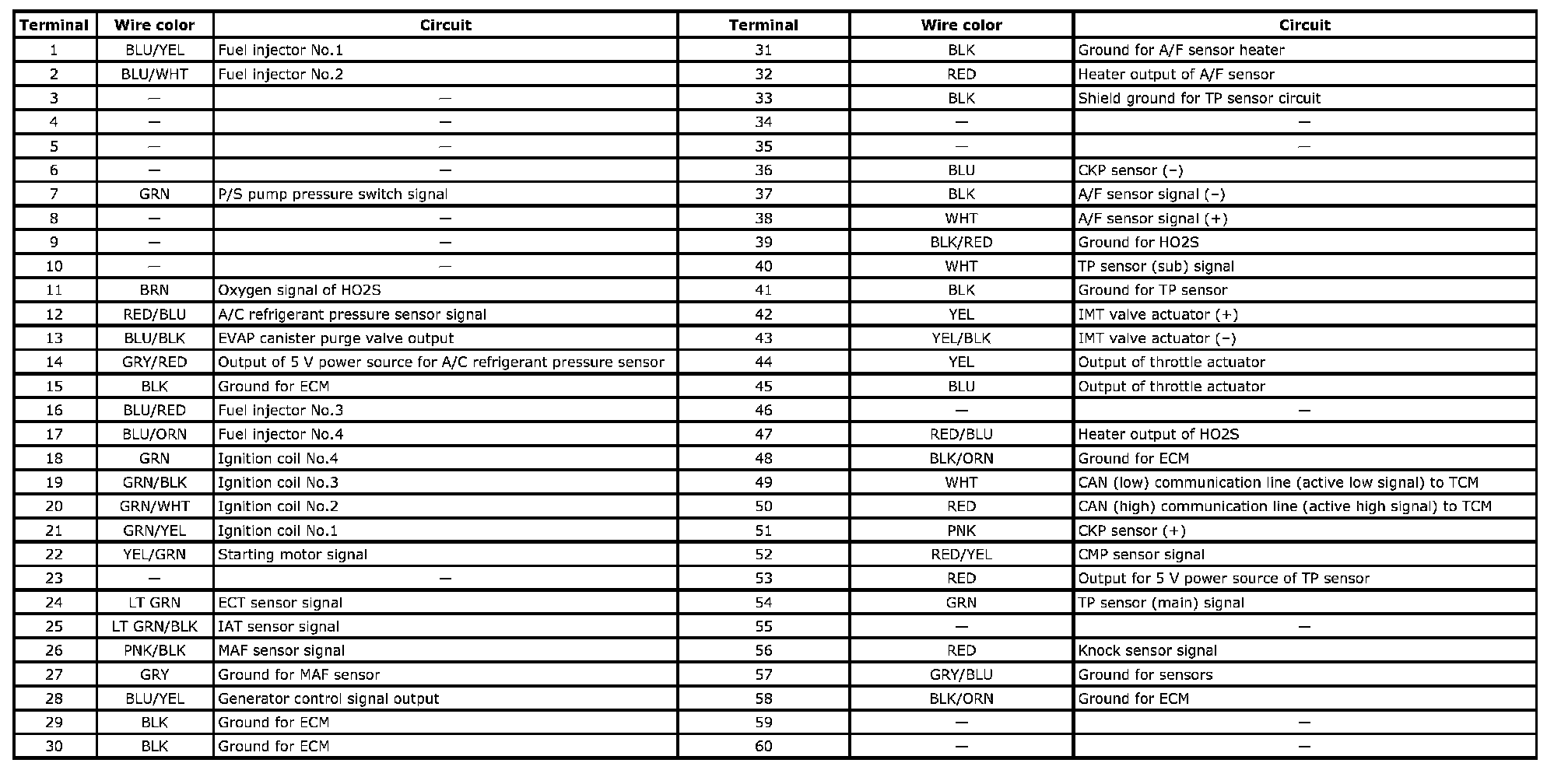

Connector: E01:
