Home >> Suzuki >> 2007 >> Aerio L4-2.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

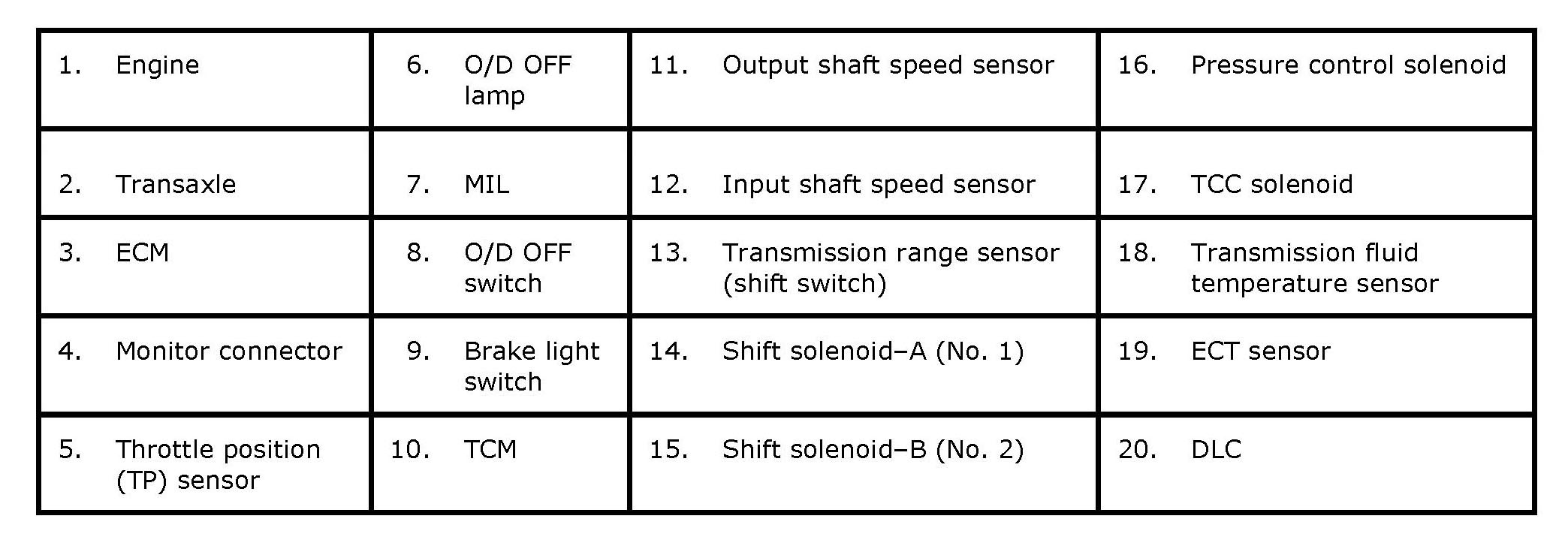

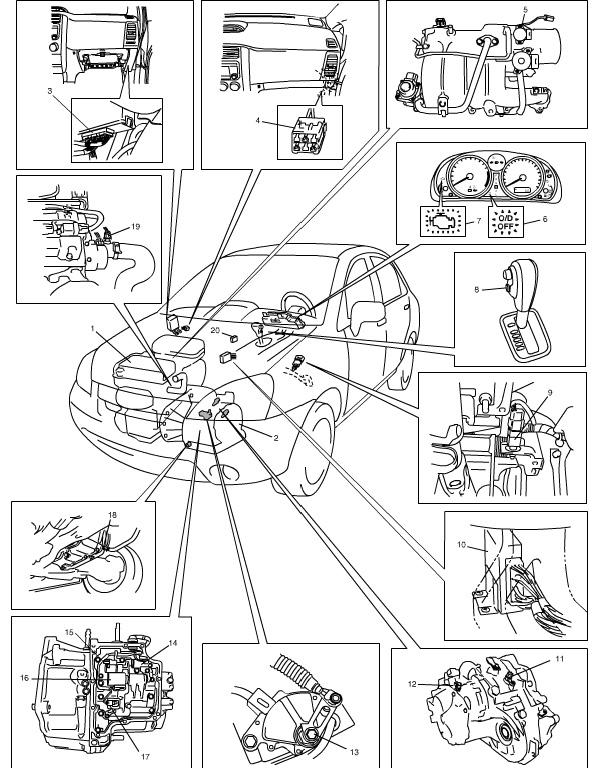

Electronic Shift Control System Components Location:



Electronic Shift Control System Components Location:
