Compressor Clutch

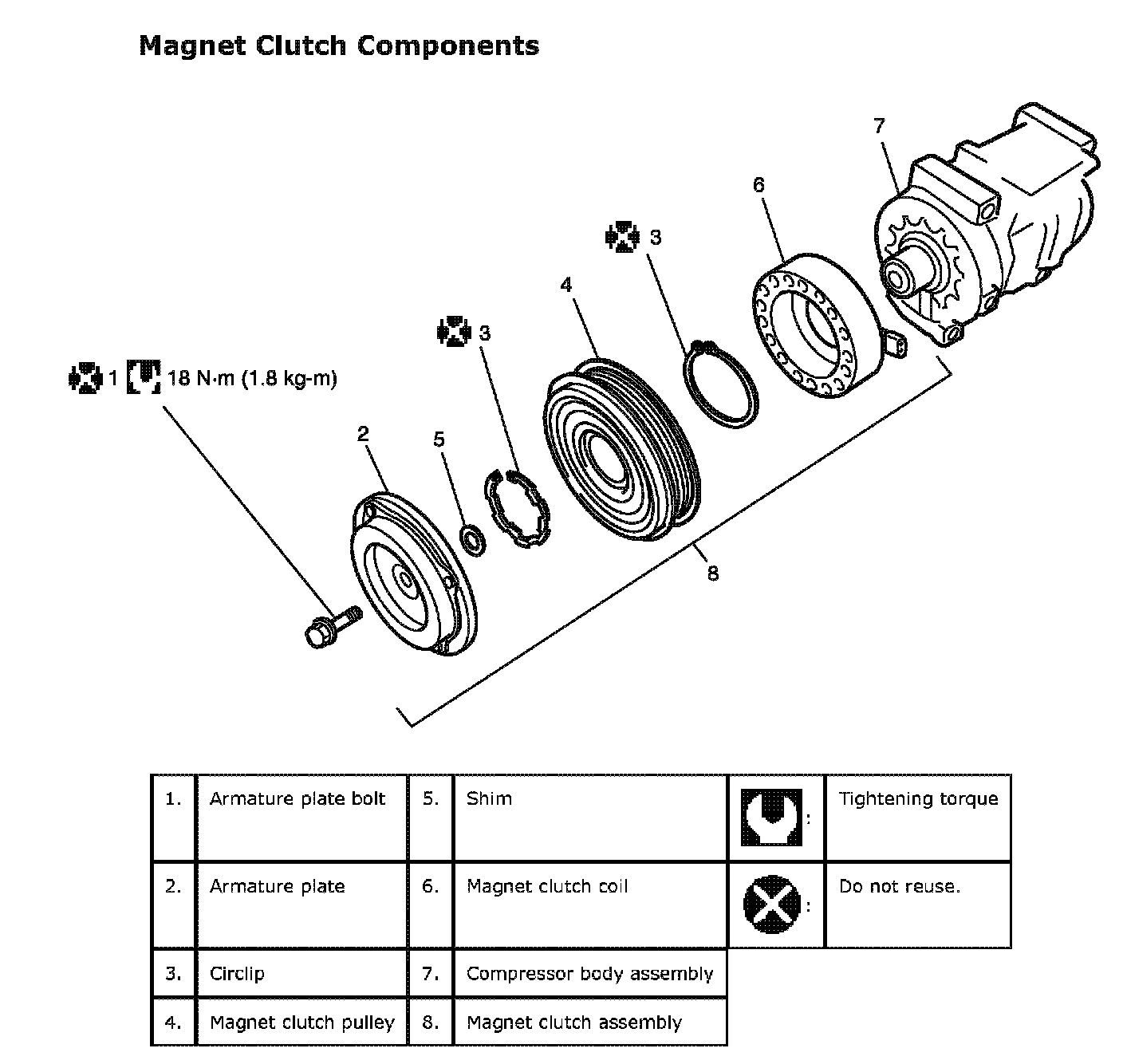

Magnet Clutch Components

Magnet Clutch Components:

CAUTION: Never disassemble compressor body assembly. Disassembly will affect original performance of A/C system.
