ECM

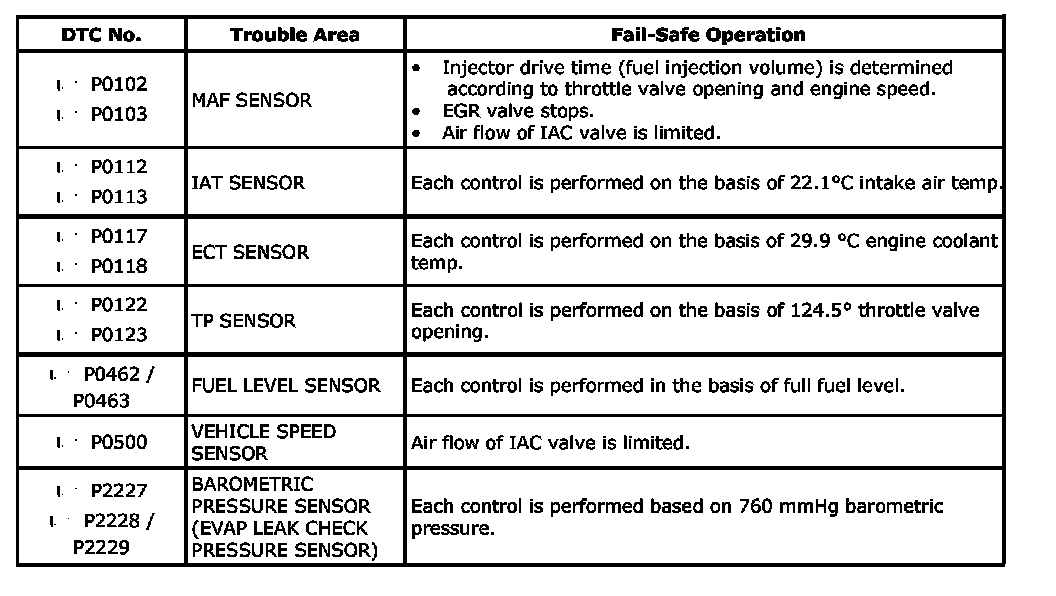

Fail-Safe Table

P0102 - P2229:




When any of the DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
