Home >> Suzuki >> 2006 >> Verona L6-2.5L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

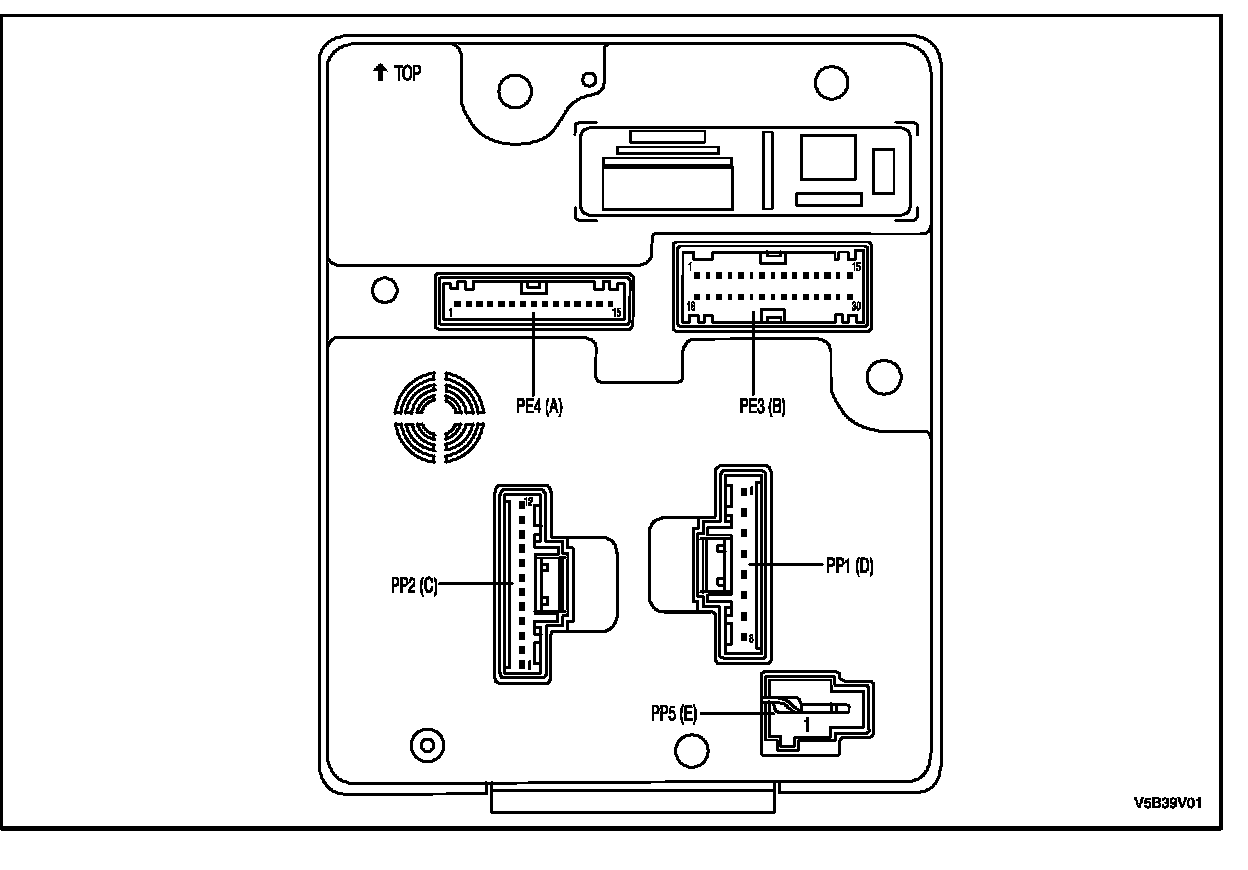

Body Control Systems: Locations

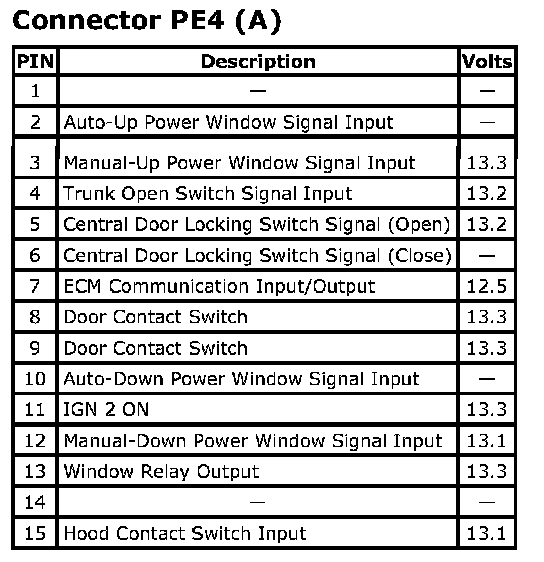

Pin 1 - 15:

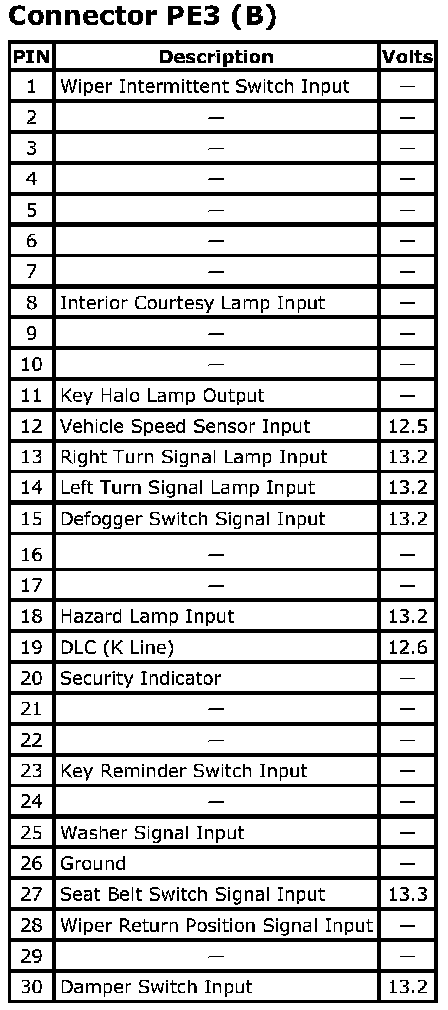

Pin 1 - 30:

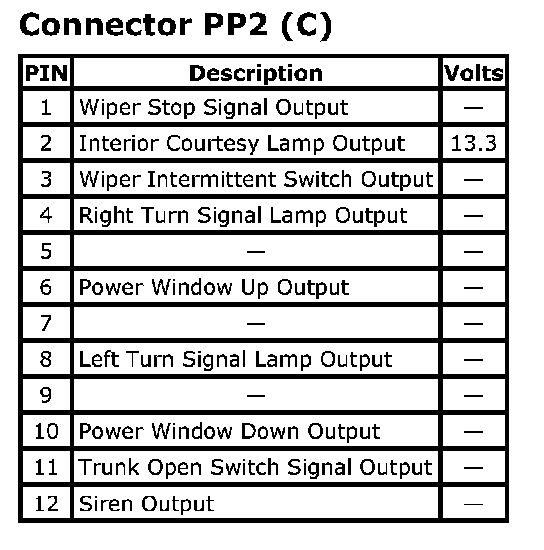

Pin 1 - 12:

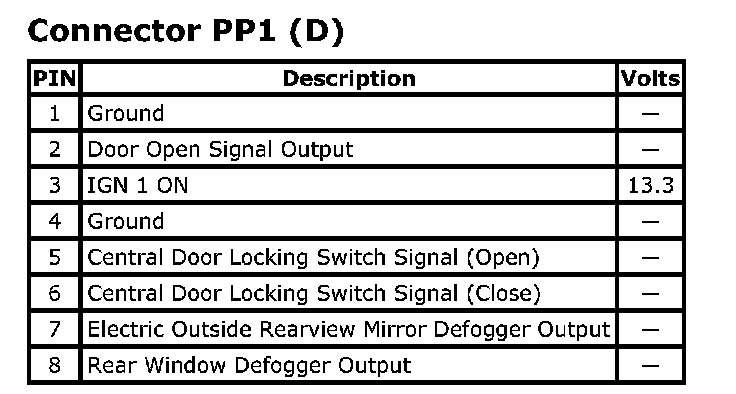

Pin 1 - 8:
