Home >> Suzuki >> 2005 >> Aerio L4-2.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations

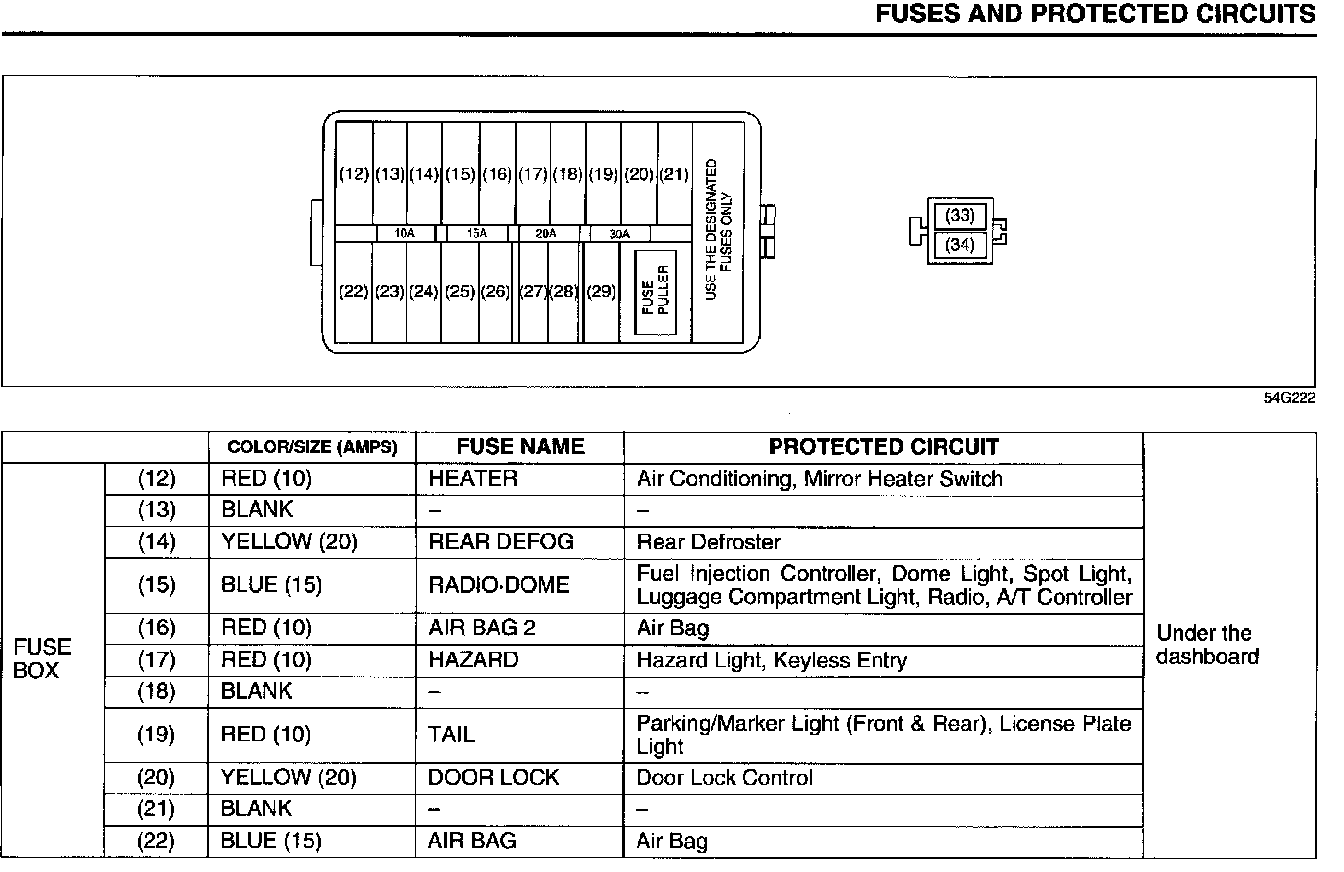

Under Dash Board:

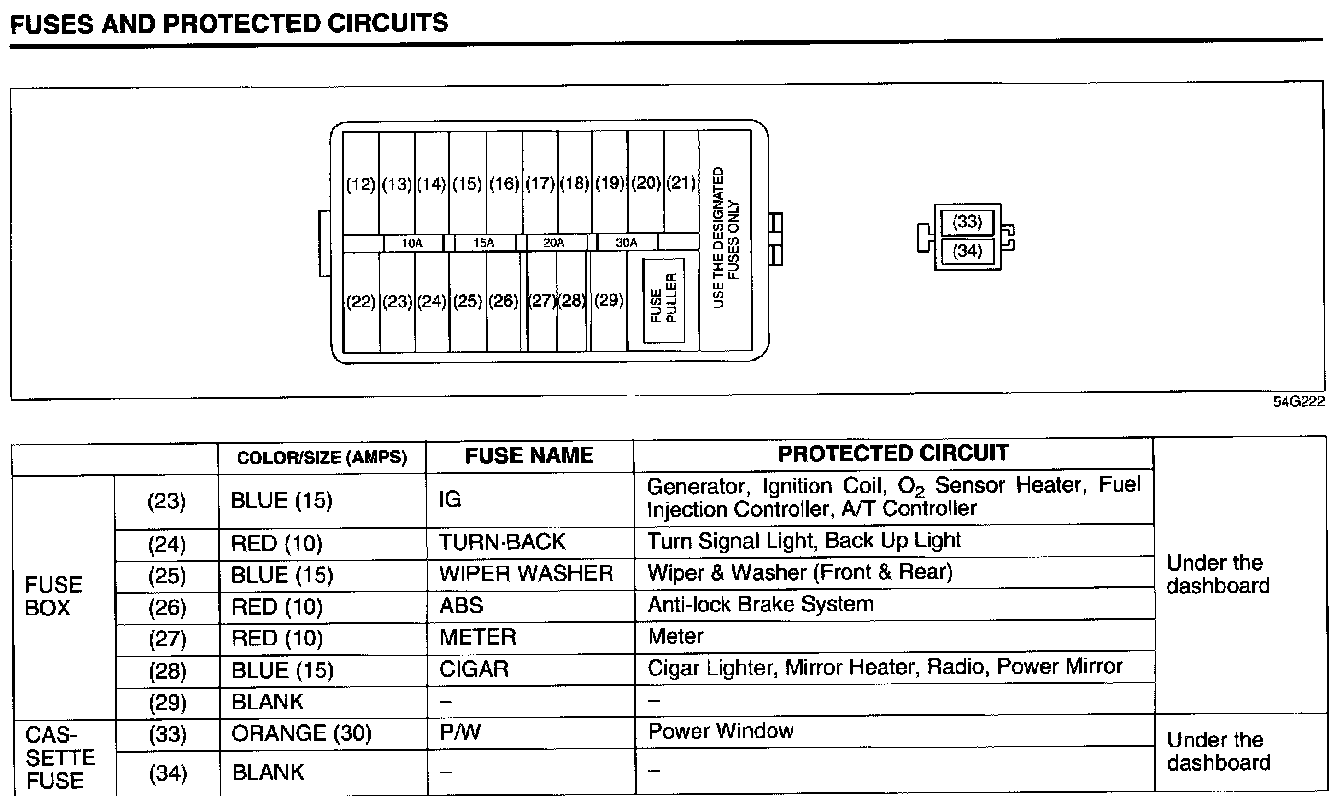

Under Dash Board:

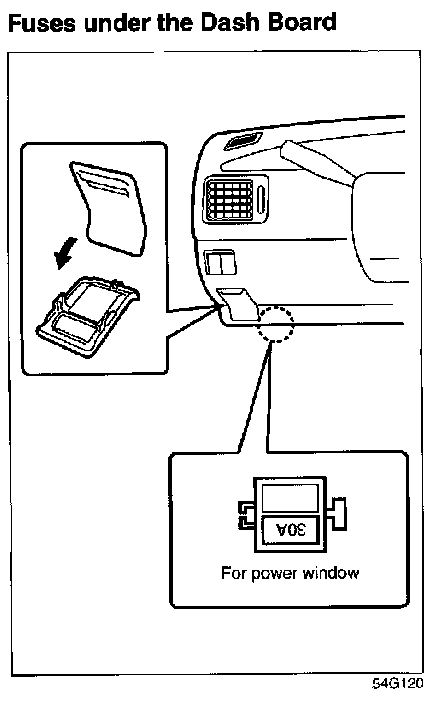

Under Dash Board:




Under Dash Board Fuse Block

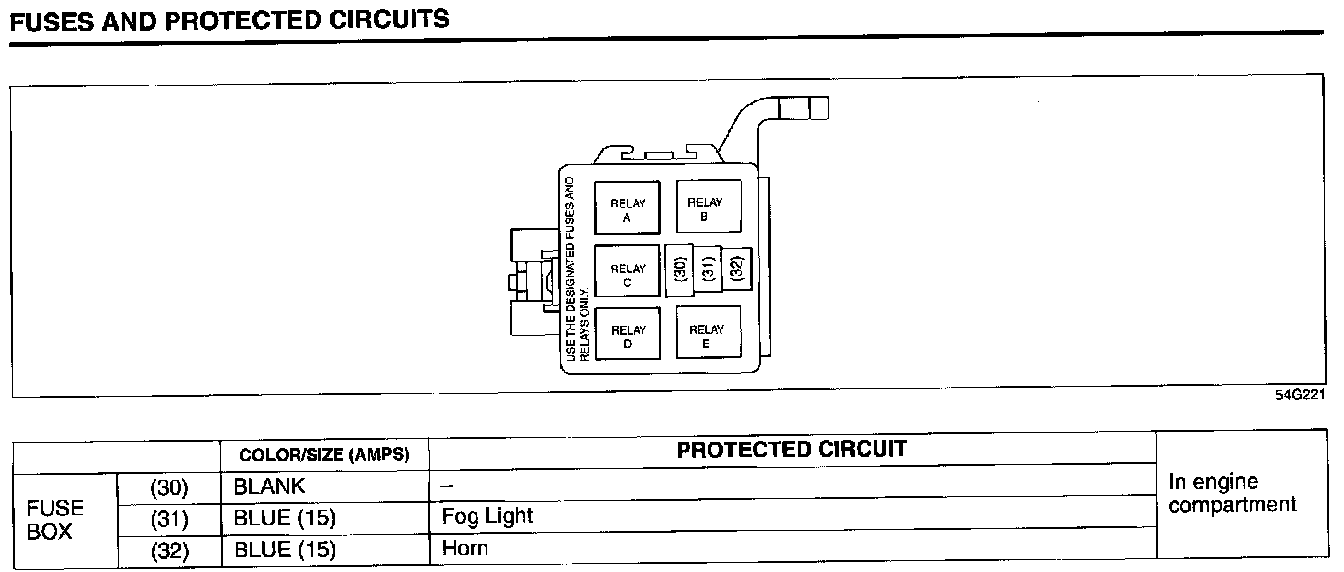

Engine Compartment:

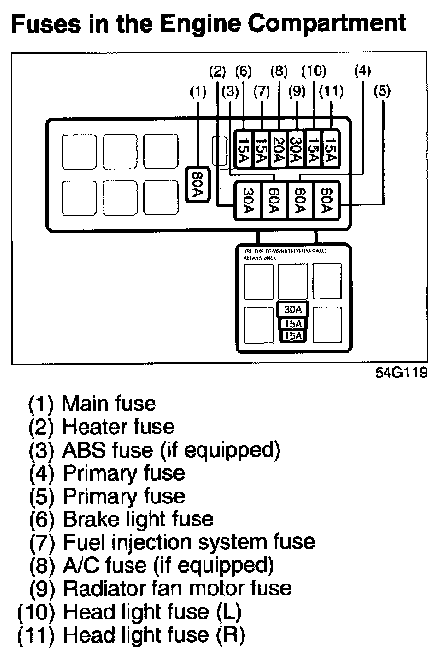

Engine Compartment 1 Of 3:




Engine Compartment:

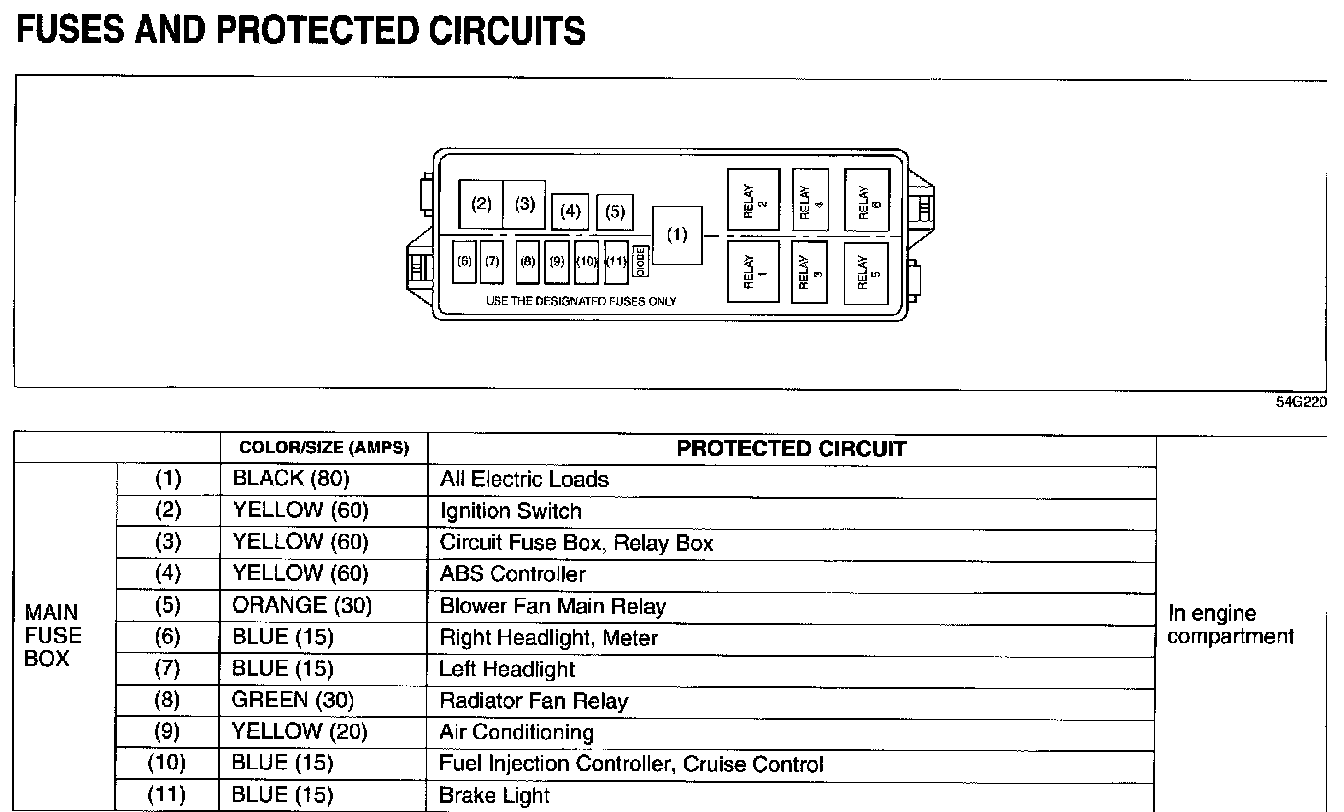

Engine Compartment Fuse Block
