Compressor Clutch: Specifications

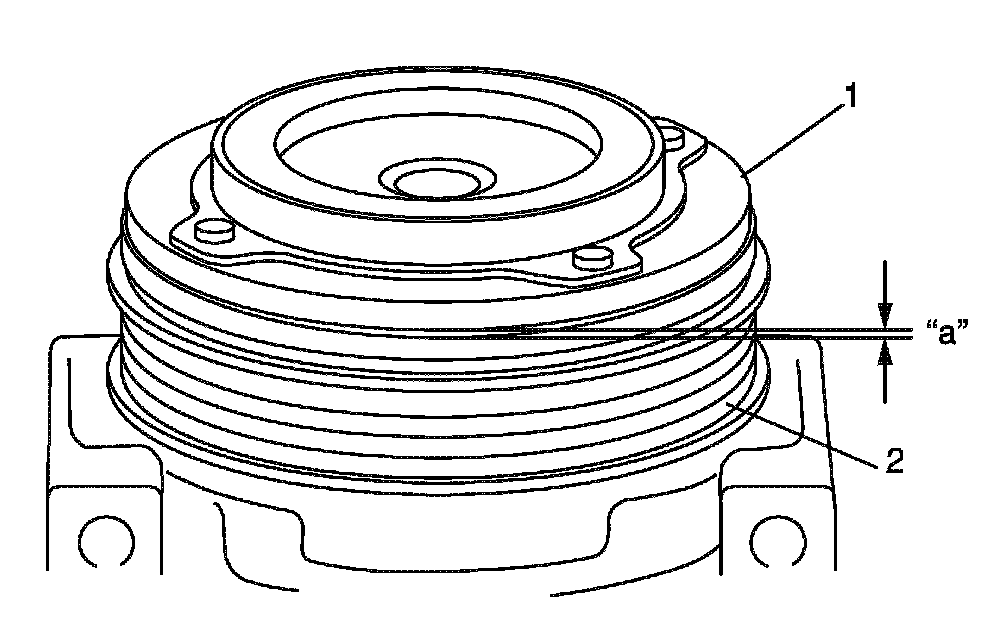

- Adjust clearance between armature plate (1) and magnet clutch pulley (2) by putting shim(s) on compressor shaft.

Standard clearance between armature plate and magnet clutch pulley "a": 0.35 - 0.6 mm (0.014 - 0.023 in.)
