Home >> Suzuki >> 2004 >> Forenza L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Chart

Fuse Chart

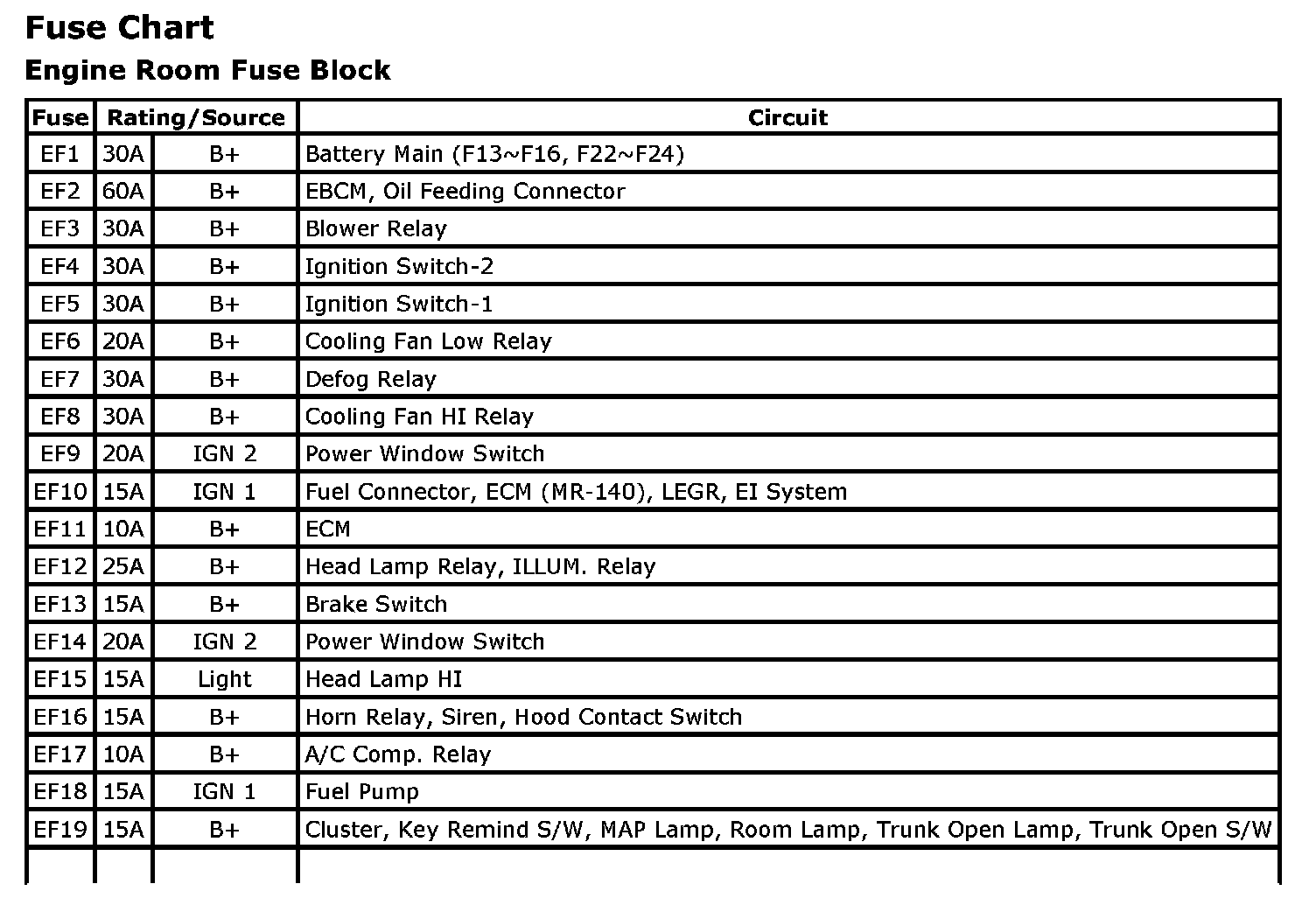

Fuse Chart Part 1:

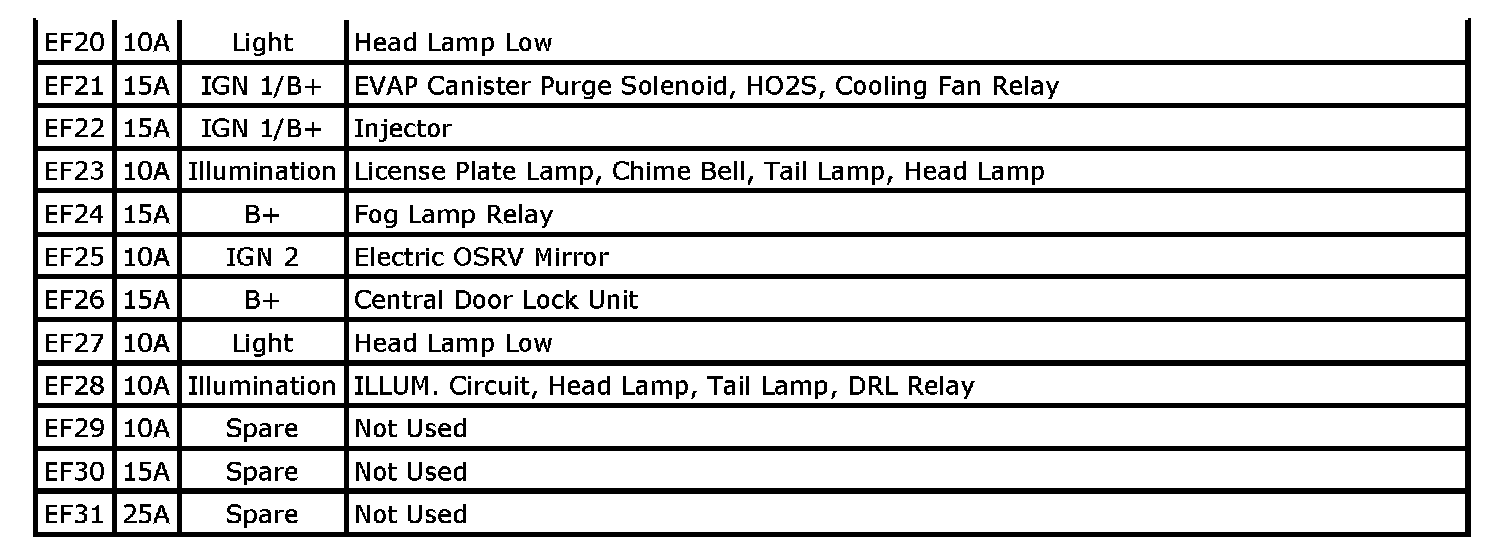

Fuse Chart Part 2:
