Connector Locations
Connector Locations

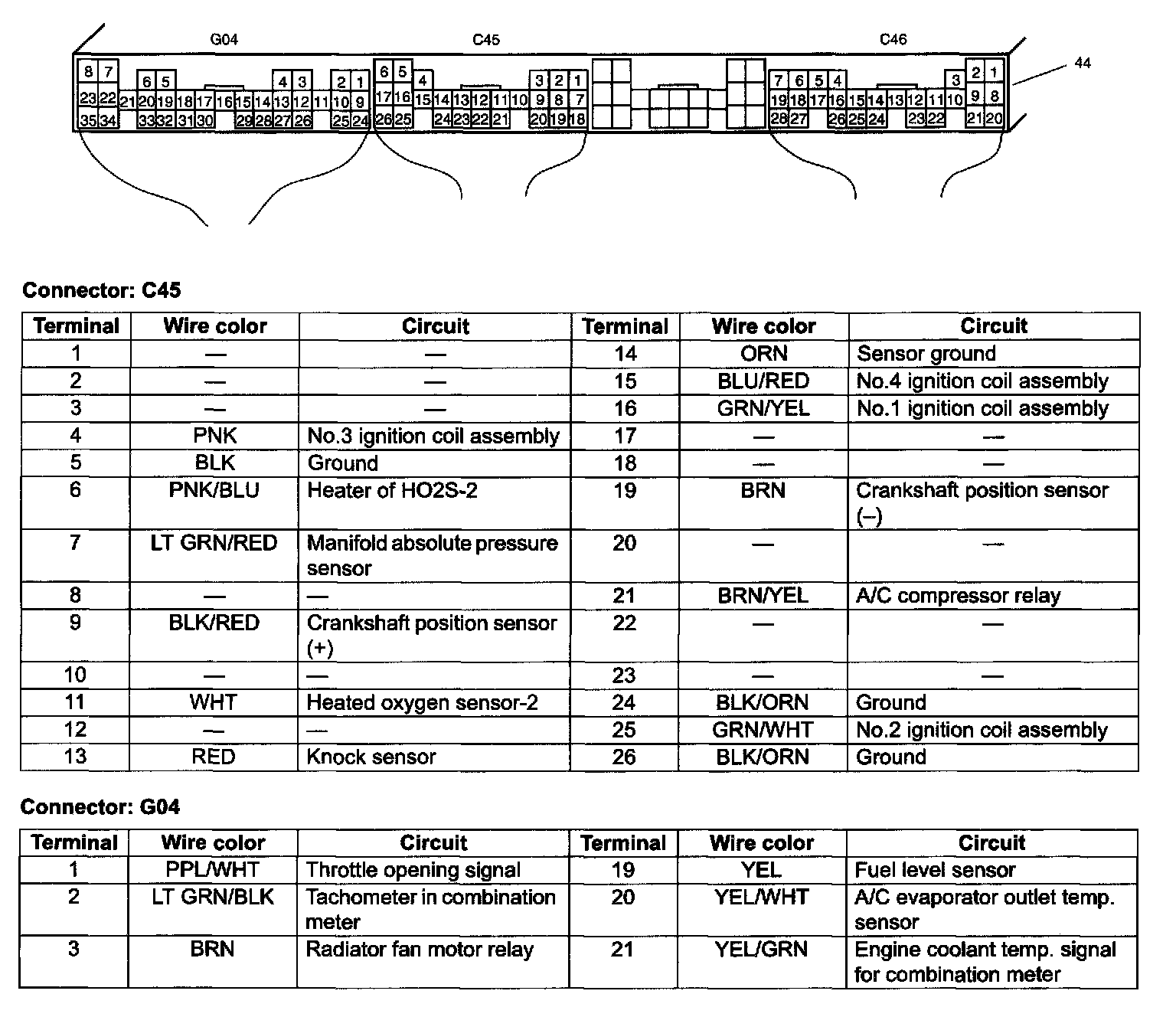

Terminal Arrangement Of ECM Coupler (Viewed From Harness Side) Part 1:

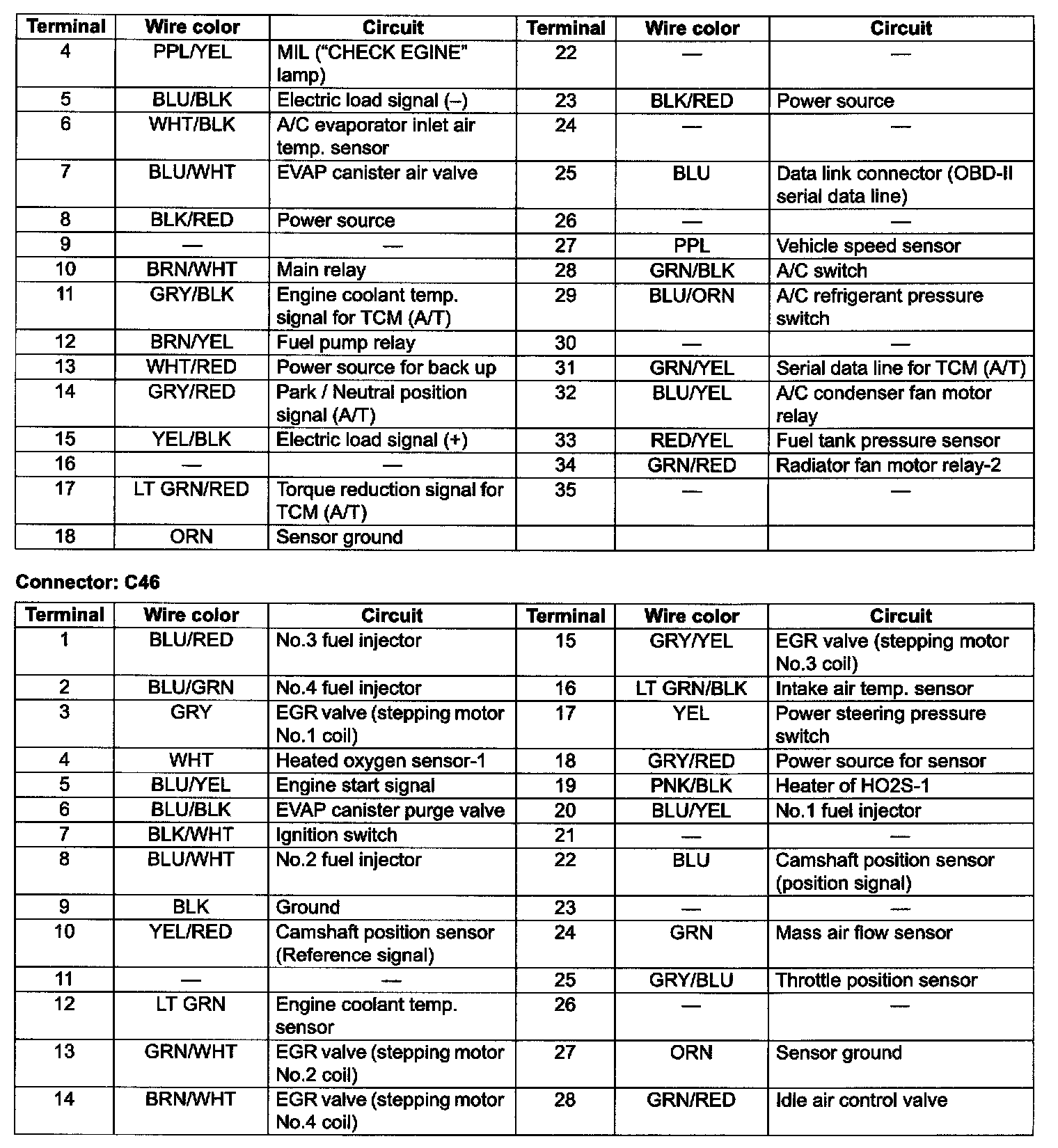

Terminal Arrangement Of ECM Coupler (Viewed From Harness Side) Part 2:
