Brake Master Cylinder
Brake Master Cylinder

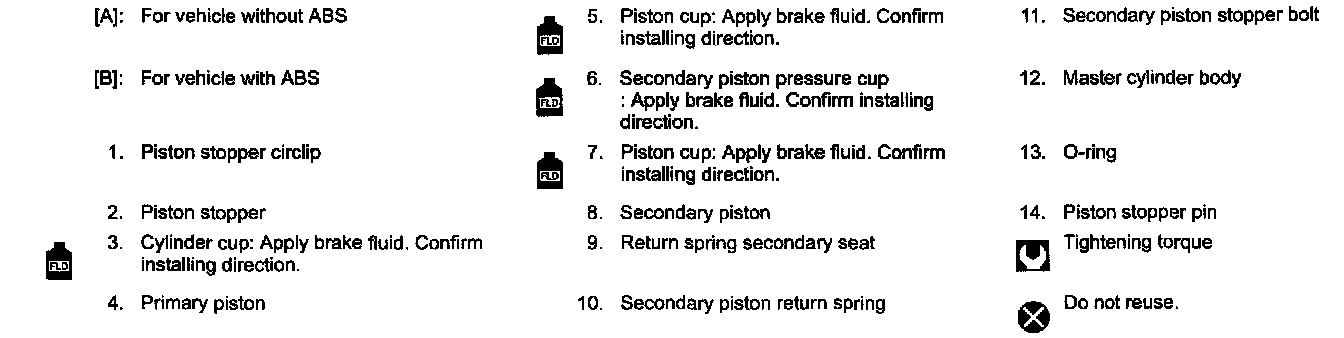

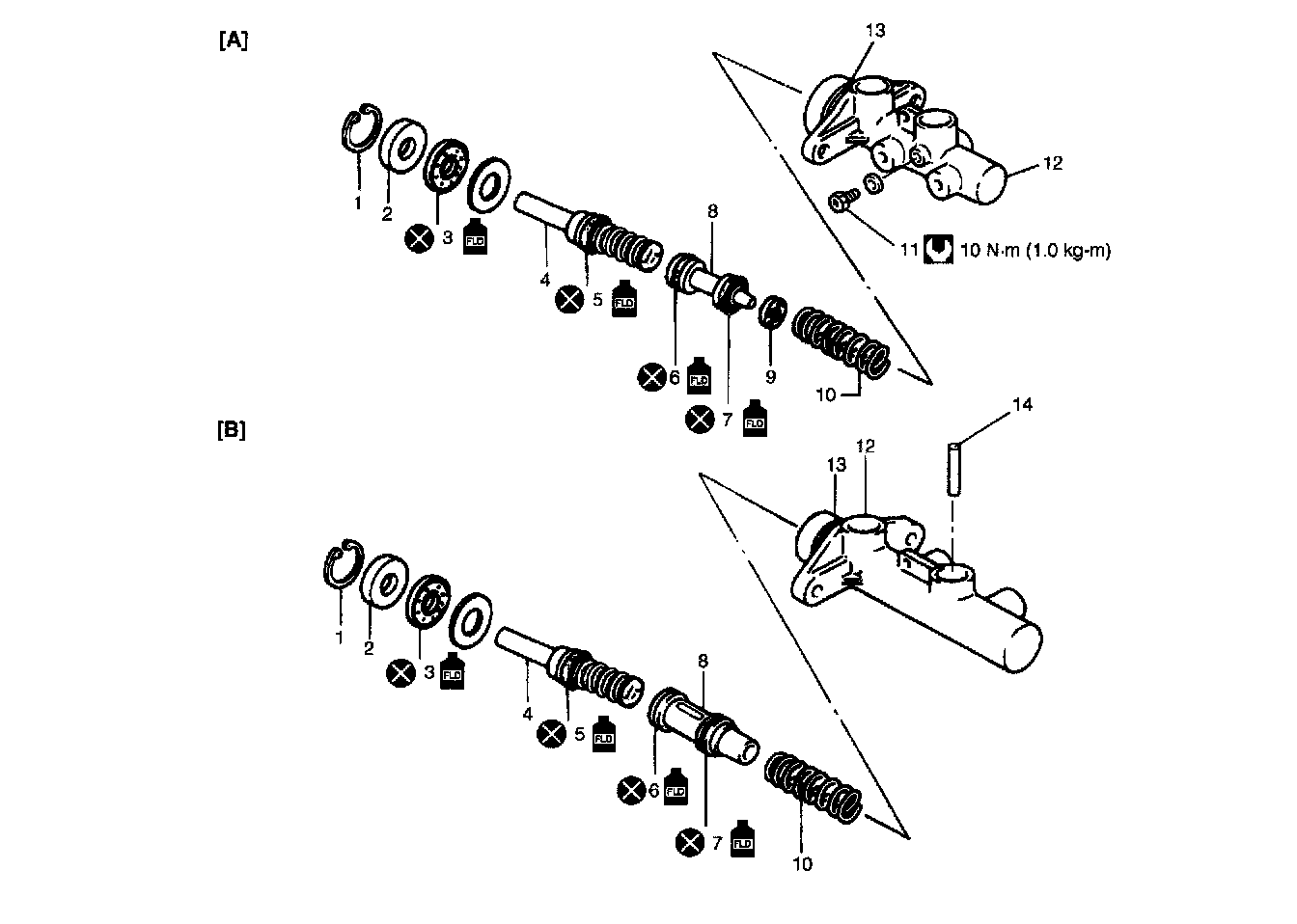

Master Cylinder Components W/ Related Components
Part 1 of 2
Part 2 of 2
