Type 2

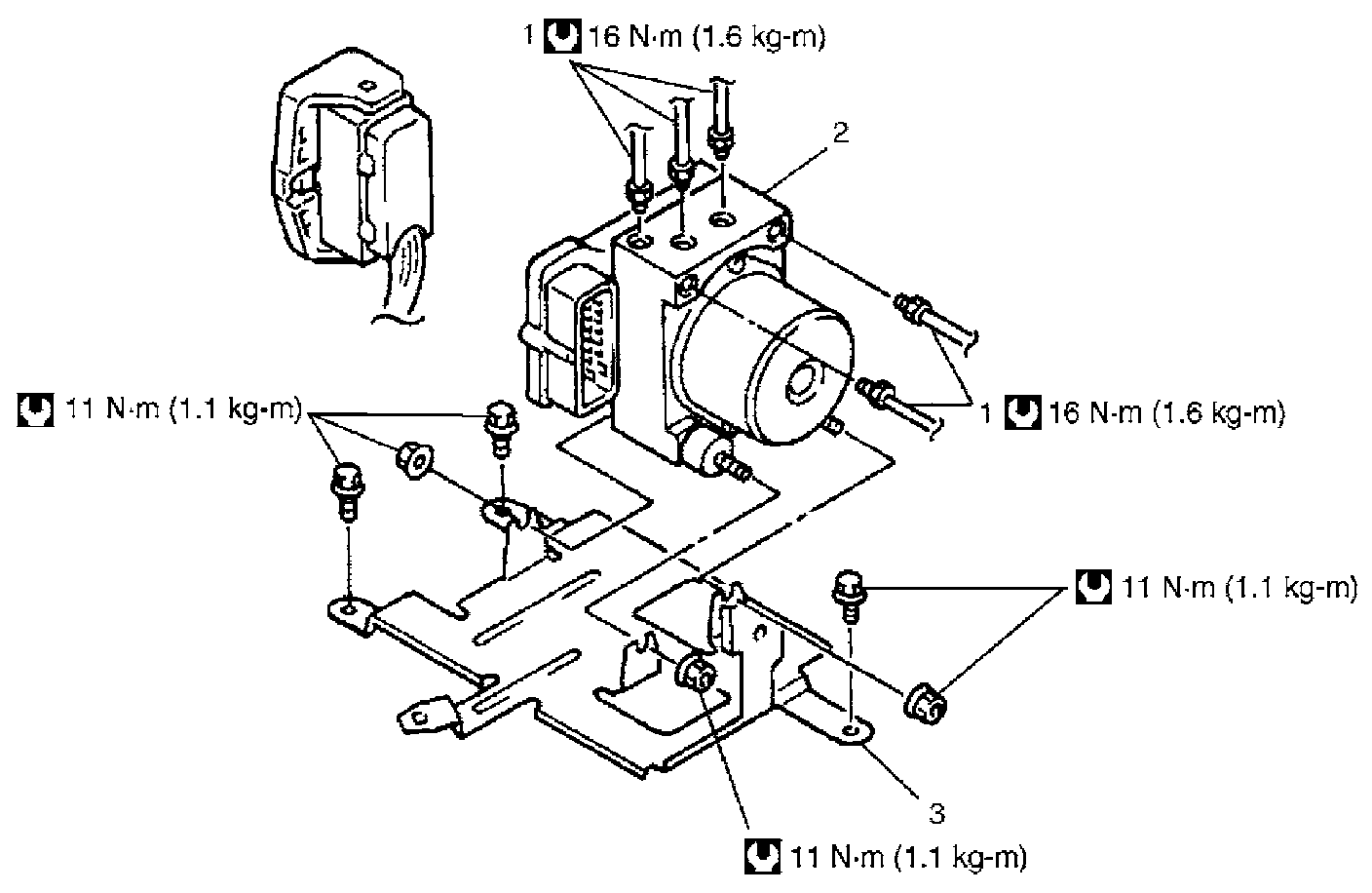

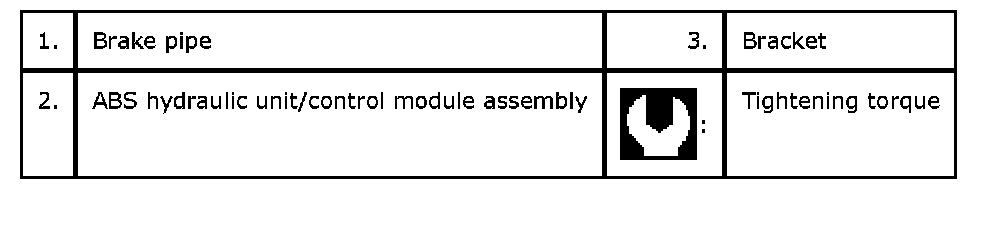

ABS Hydraulic Unit/Control Module Assembly Components








CAUTION: Never disassemble ABS hydraulic unit/control module assembly, loosen blind plug or remove motor.

Performing any of these prohibited services will affect original performance of ABS hydraulic unit/control module assembly.
