Heater Mode Control Switch

Mode Control Switch

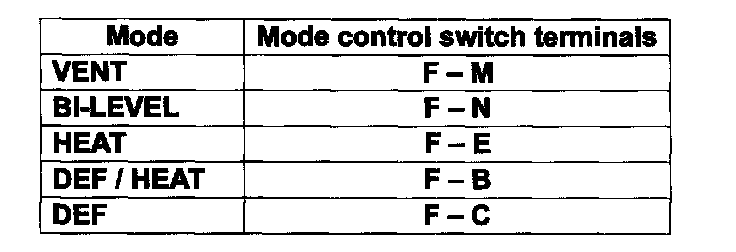

- Check if continuity exists between each pair of terminals listed below when mode control button is pressed.

Mode Control Switch Specification:

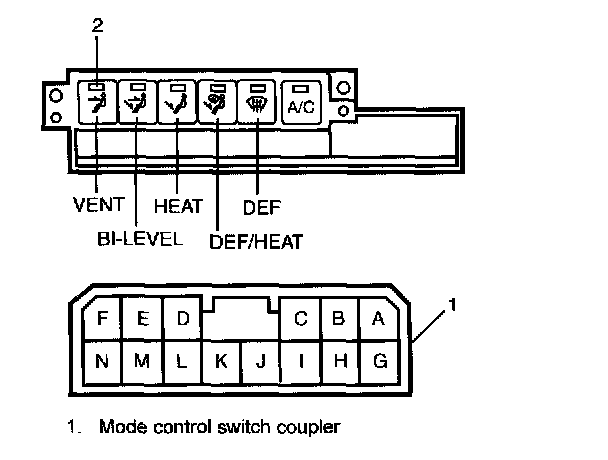

- With battery voltage (+) connected to terminal "I" and (-) to terminal "F", press each mode control button and check if indicator lamp (2) lights.
- With battery voltage (+) connected to terminal "A" and (-) to terminal "H", check if illumination lamp (2) lights.
