Automatic Transmission/Transaxle
>>

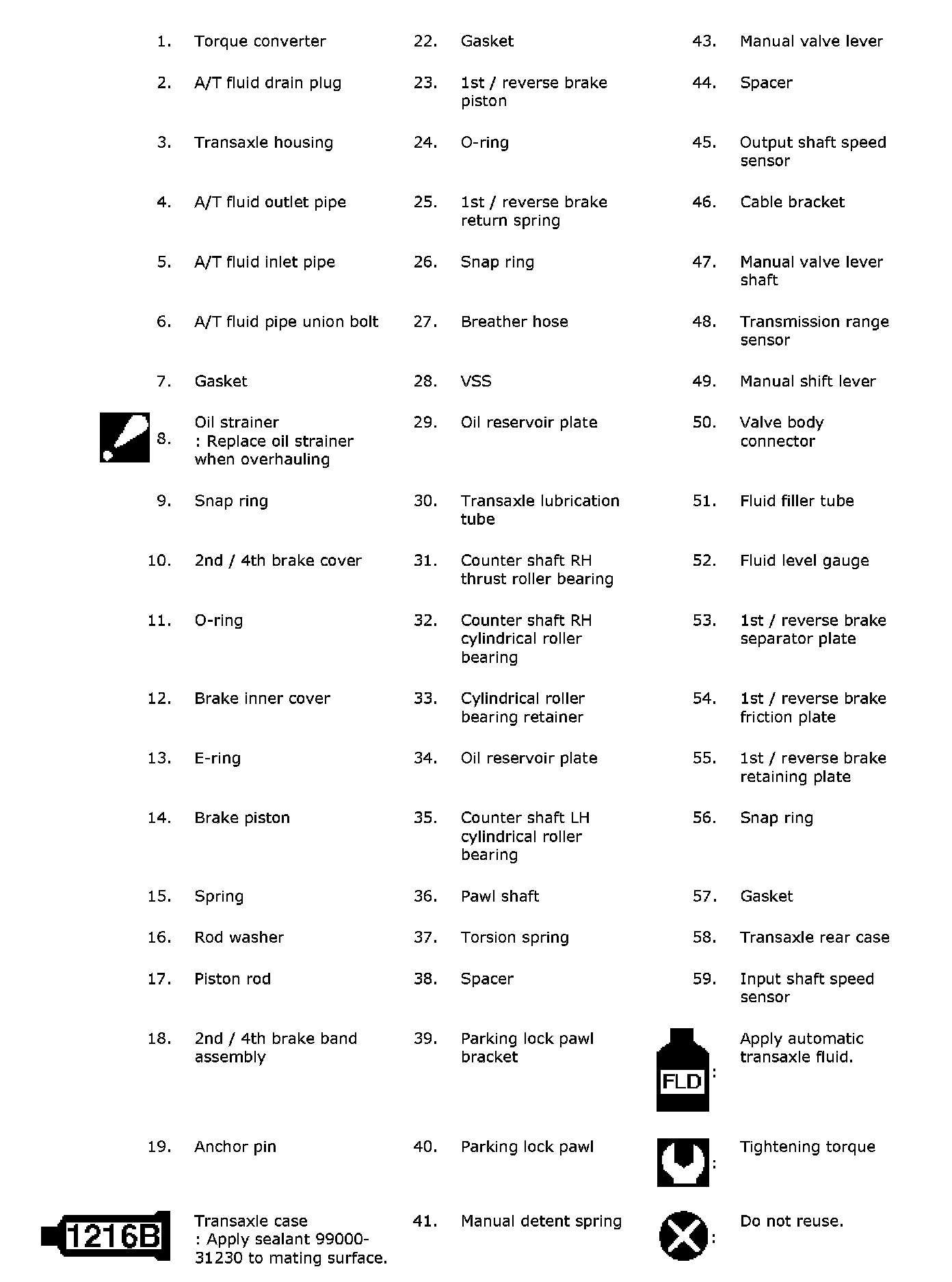

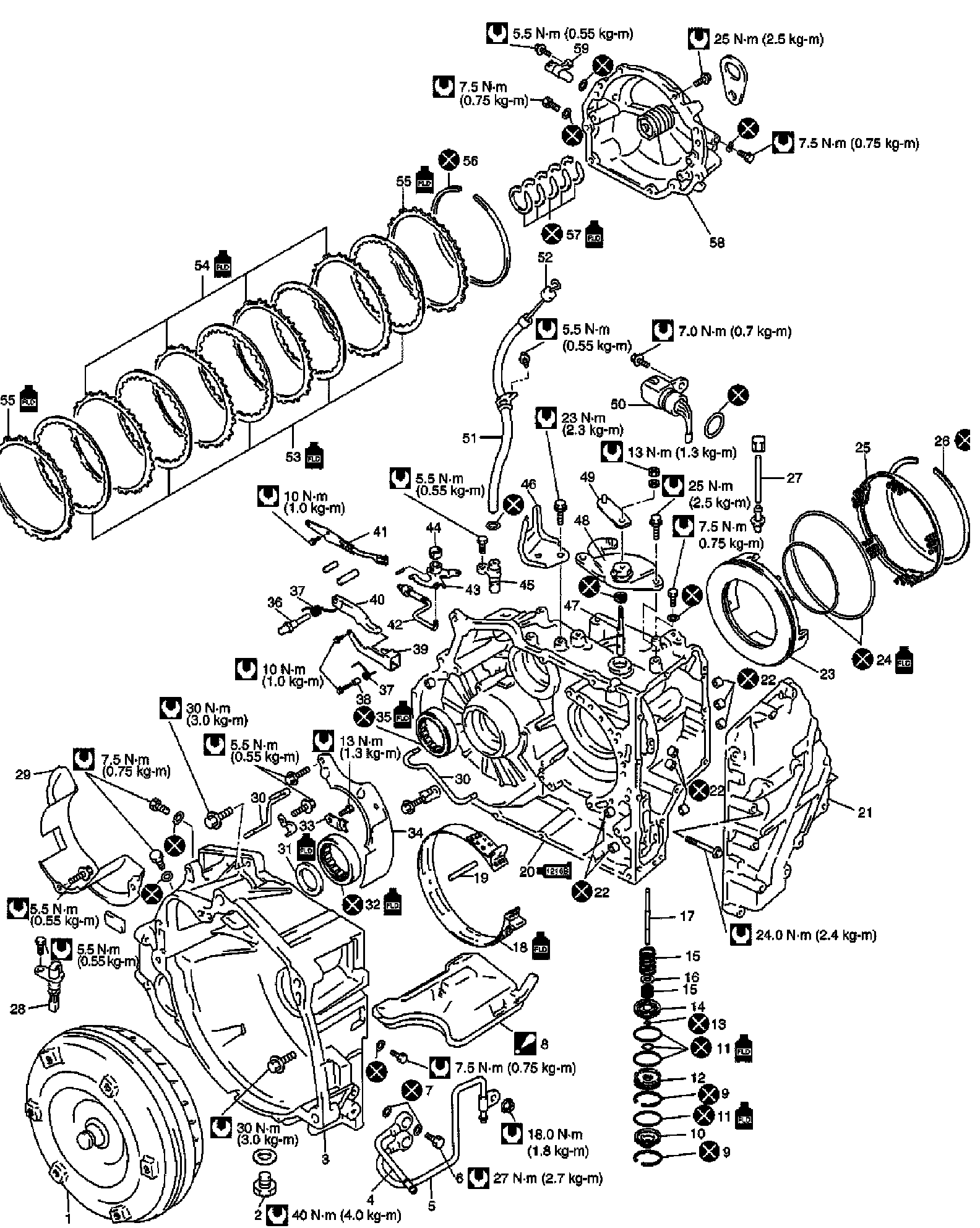

Automatic Transaxle Assembly Components
Automatic Transaxle Assembly Components
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
Automatic Transaxle Assembly Components
