Vehicle Speed Sensor: Service and Repair

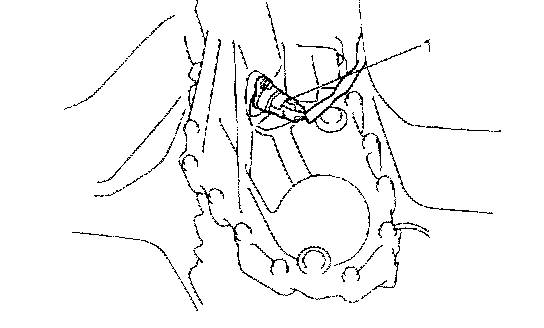

Removal
1. Hoist vehicle.
2. Disconnect coupler from VSS (1).
3. Remove VSS (1).




Installation
Reverse removal procedure for installation.

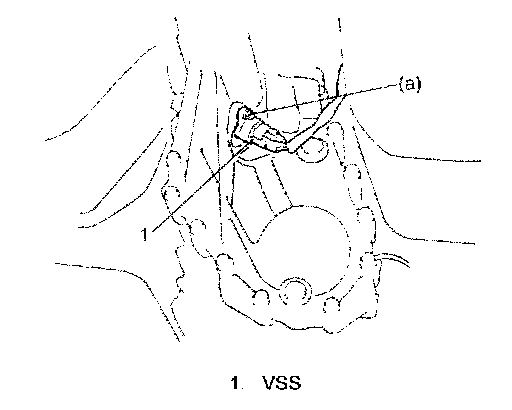

Tightening torque:
Vehicle speed sensor bolt (a): 5.5 N.m (0.55 kg-m, 4.0 lb-ft)
