Control Module HVAC: Service and Repair

A/C CONTROLLER

REMOVAL




1. Disconnect negative (-) cable at battery.
2. Disable air bag system.
Refer to "DISABLING AIR BAG SYSTEM".
3. Open glove box, then remove screw.
4. Remove glove box.

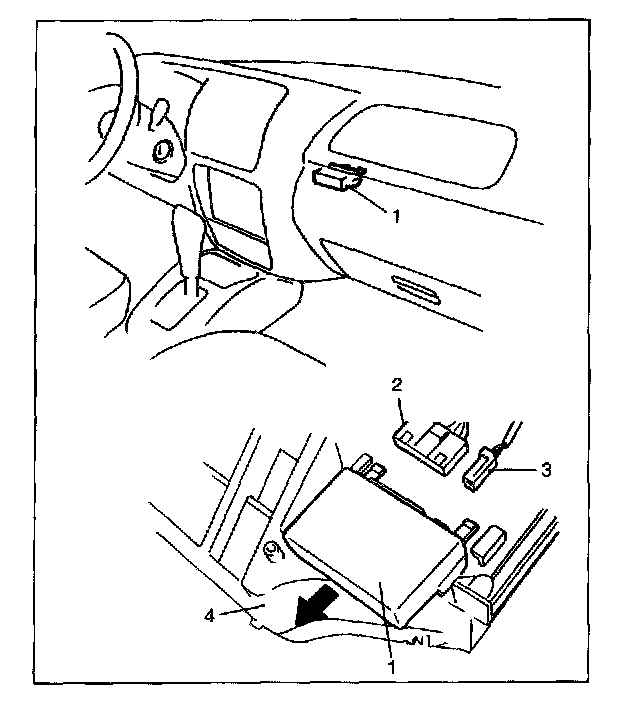

5. Disconnect A/C controller coupler (2), evaporator thermistor coupler (3).
6. Remove A/C controller (1) from heater unit (4).

INSTALLATION
1. Install in reverse order of removal procedure.
2. Enable air bag system. Refer to "ENABLING AIR BAG SYSTEM".
