Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor

REMOVAL




1. Hoist vehicle.

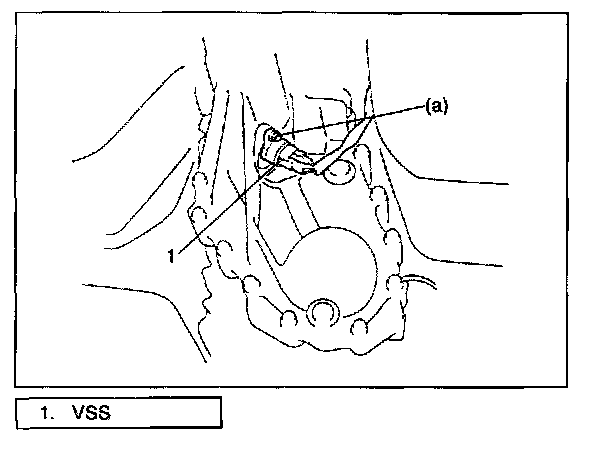

2. Disconnect coupler from VSS (1).

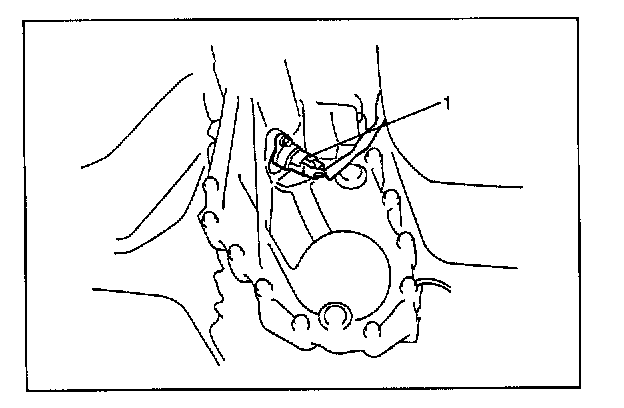

3. Remove speed sensor.

INSTALLATION




Reverse removal procedure for installation.

Tightening torque (a):
5.5 N.m (0.55 kg-m, 4.0 lb-ft)
