Engine Control Module

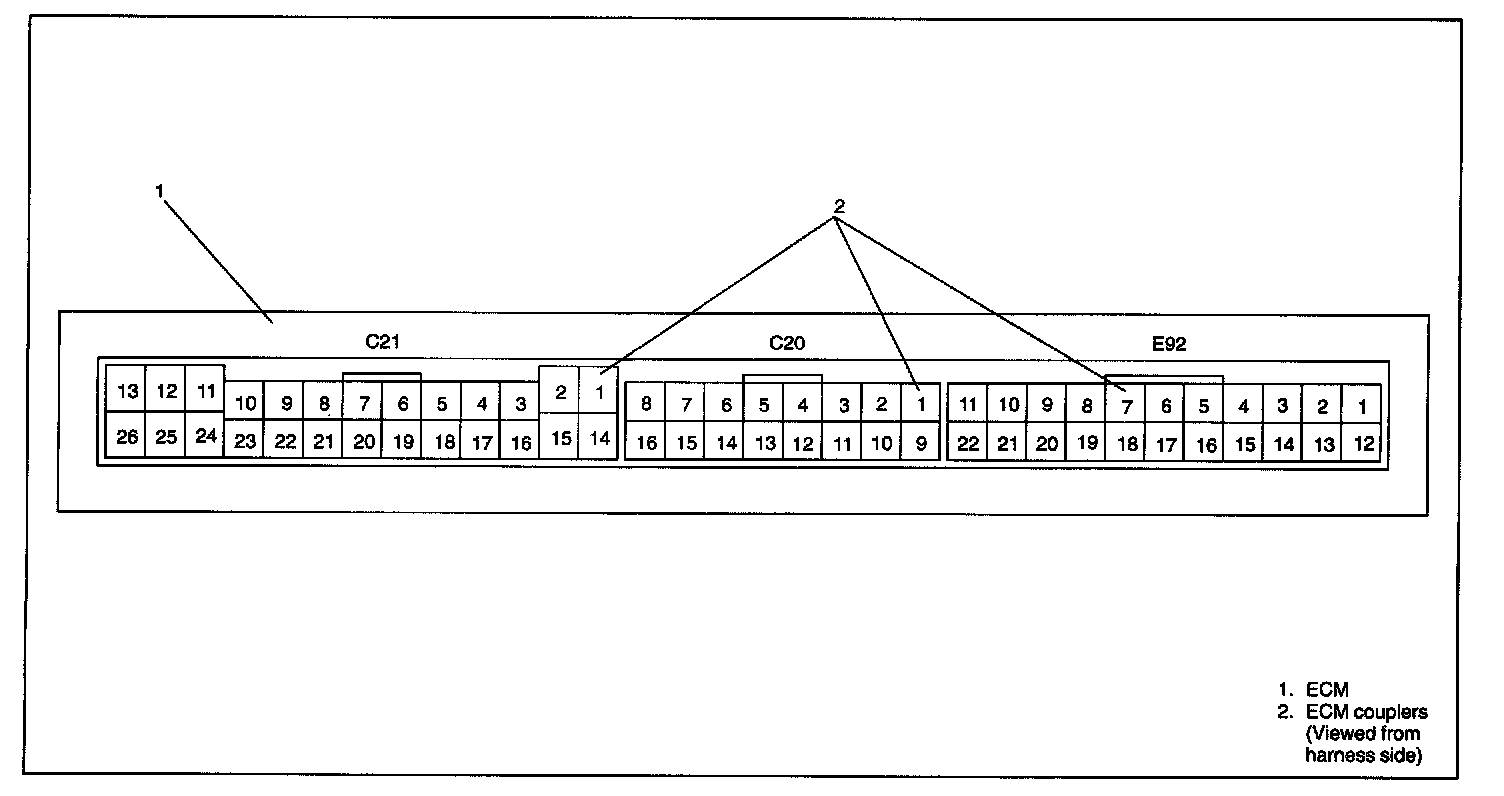

Views - Connector (C21, C20, E92):

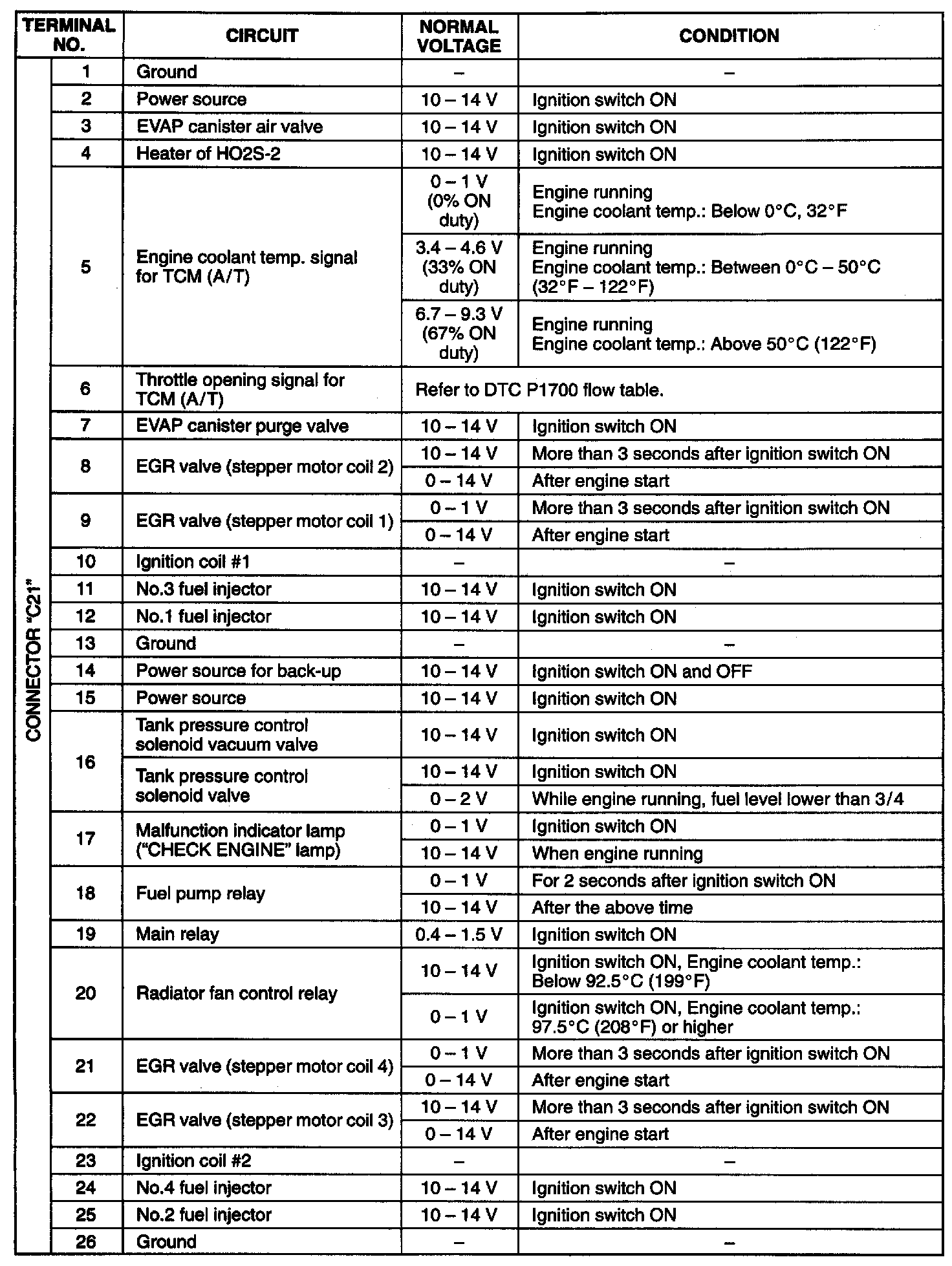

Connector C21 (Terminals 1 - 26):

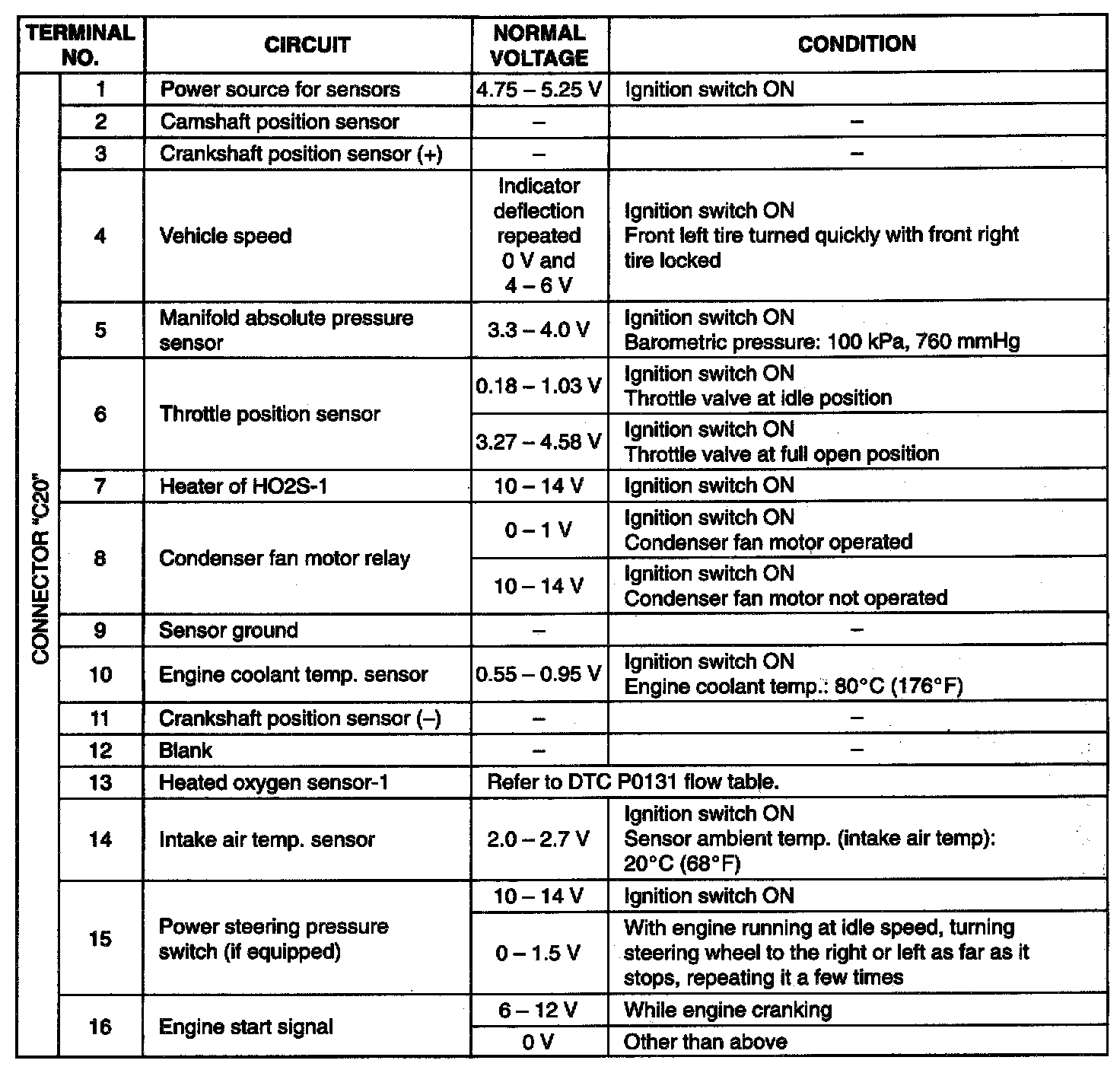

Connector C20 (Terminals 1 - 16):

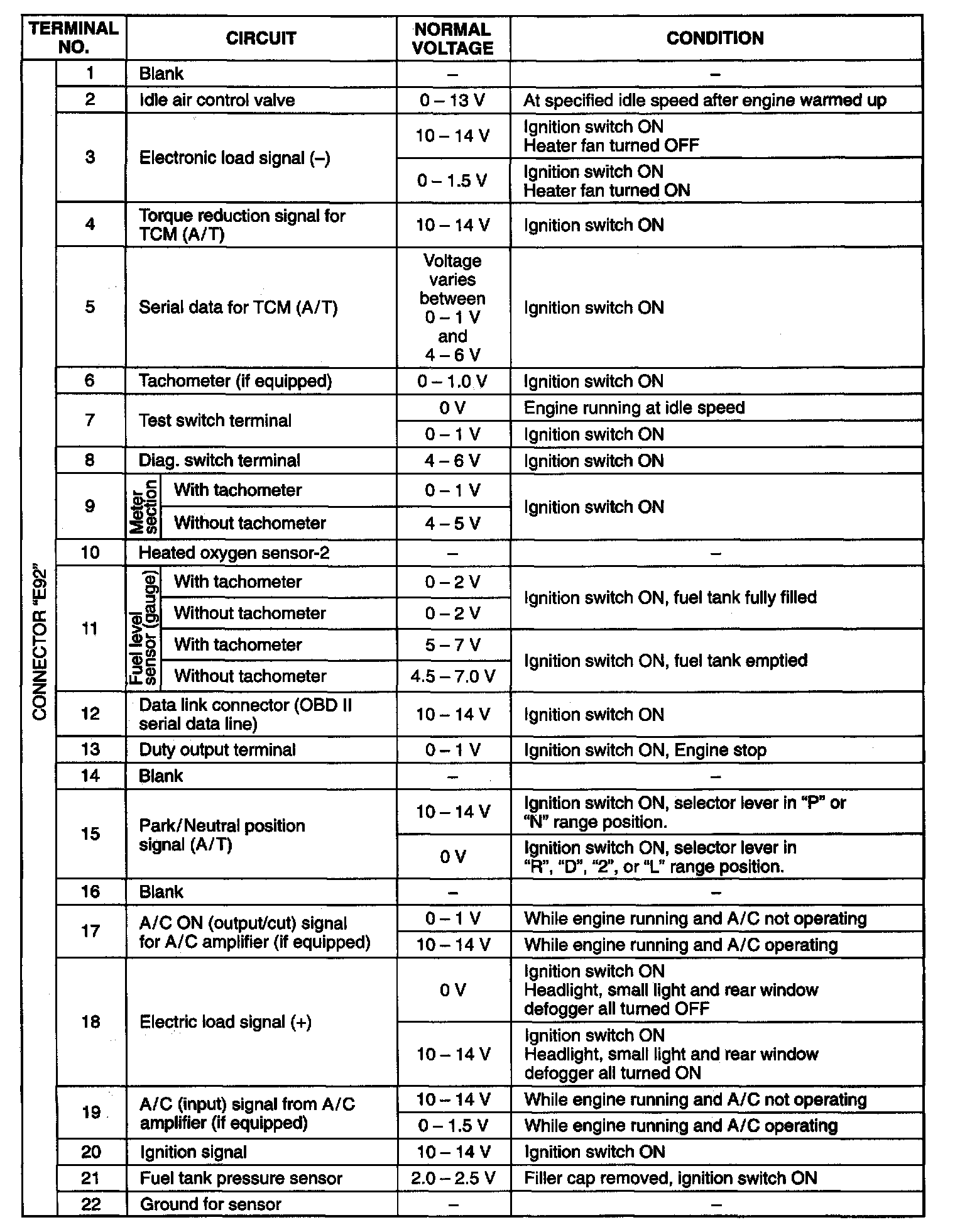

Connector E92 (Terminals 1 - 22):
