Control Module: Locations

WIRE HARNESS AND CONNECTORS

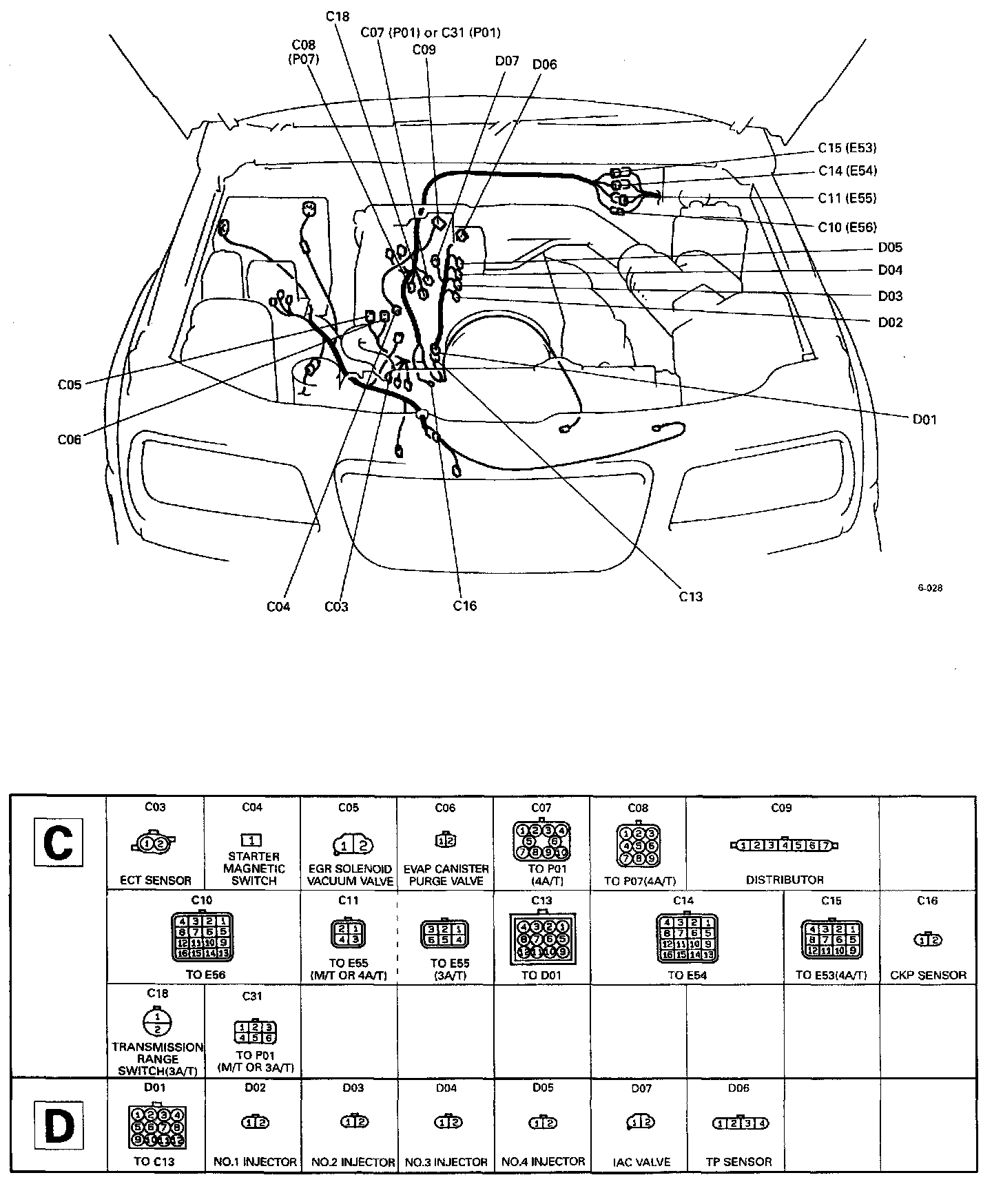

ENGINE ROOM C&D

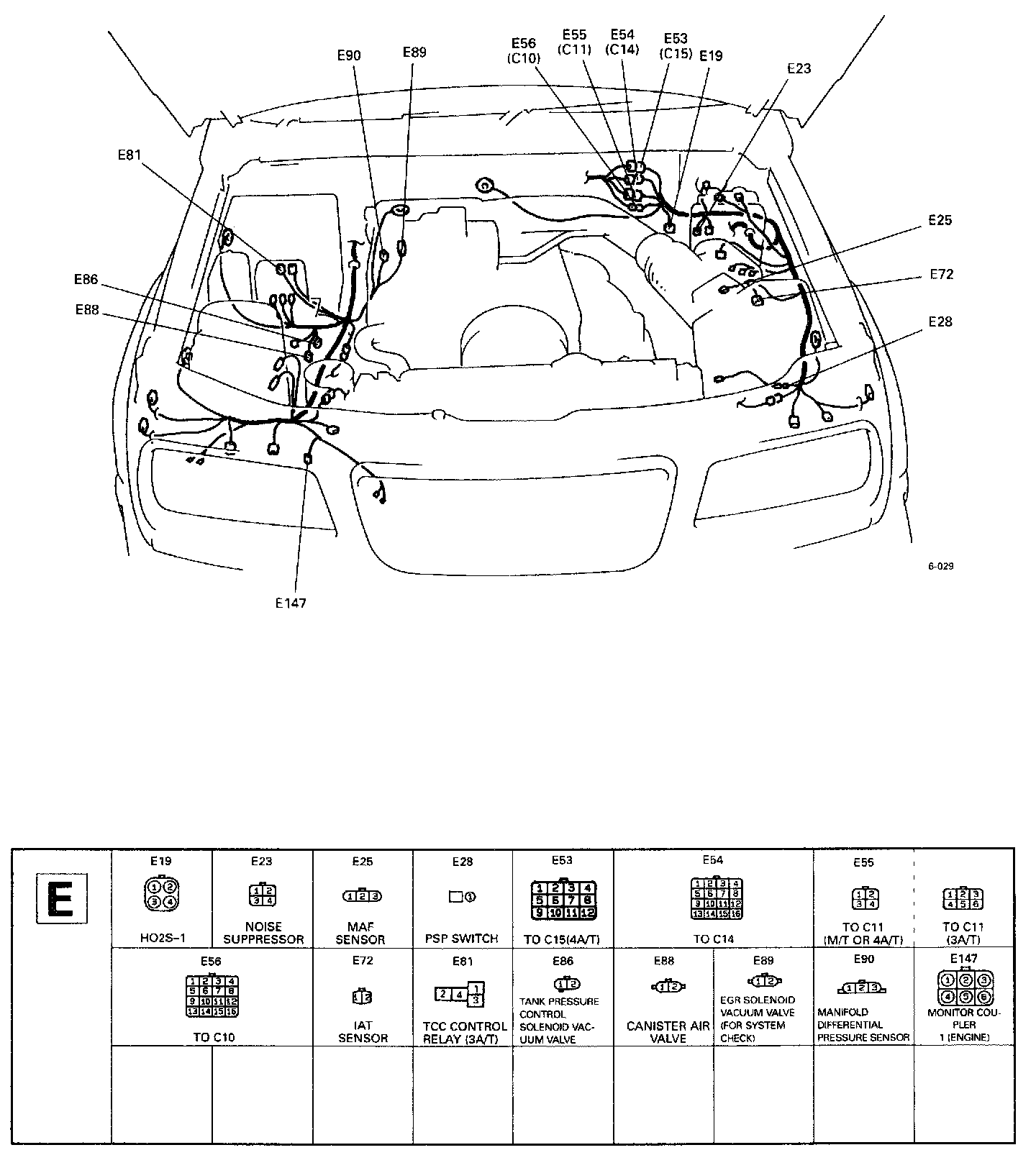

ENGINE ROOM E

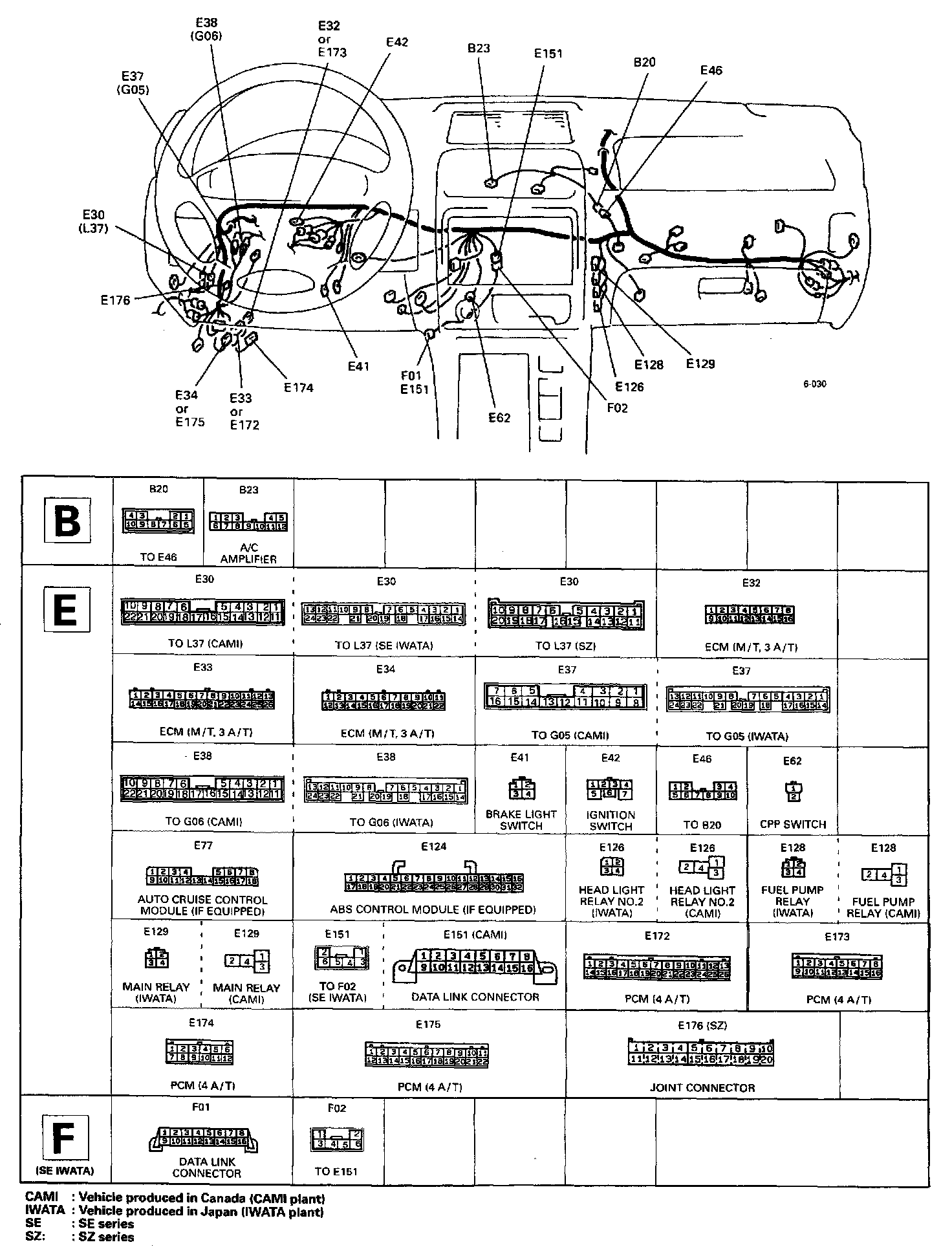

INSTRUMENT PANEL B,E&F

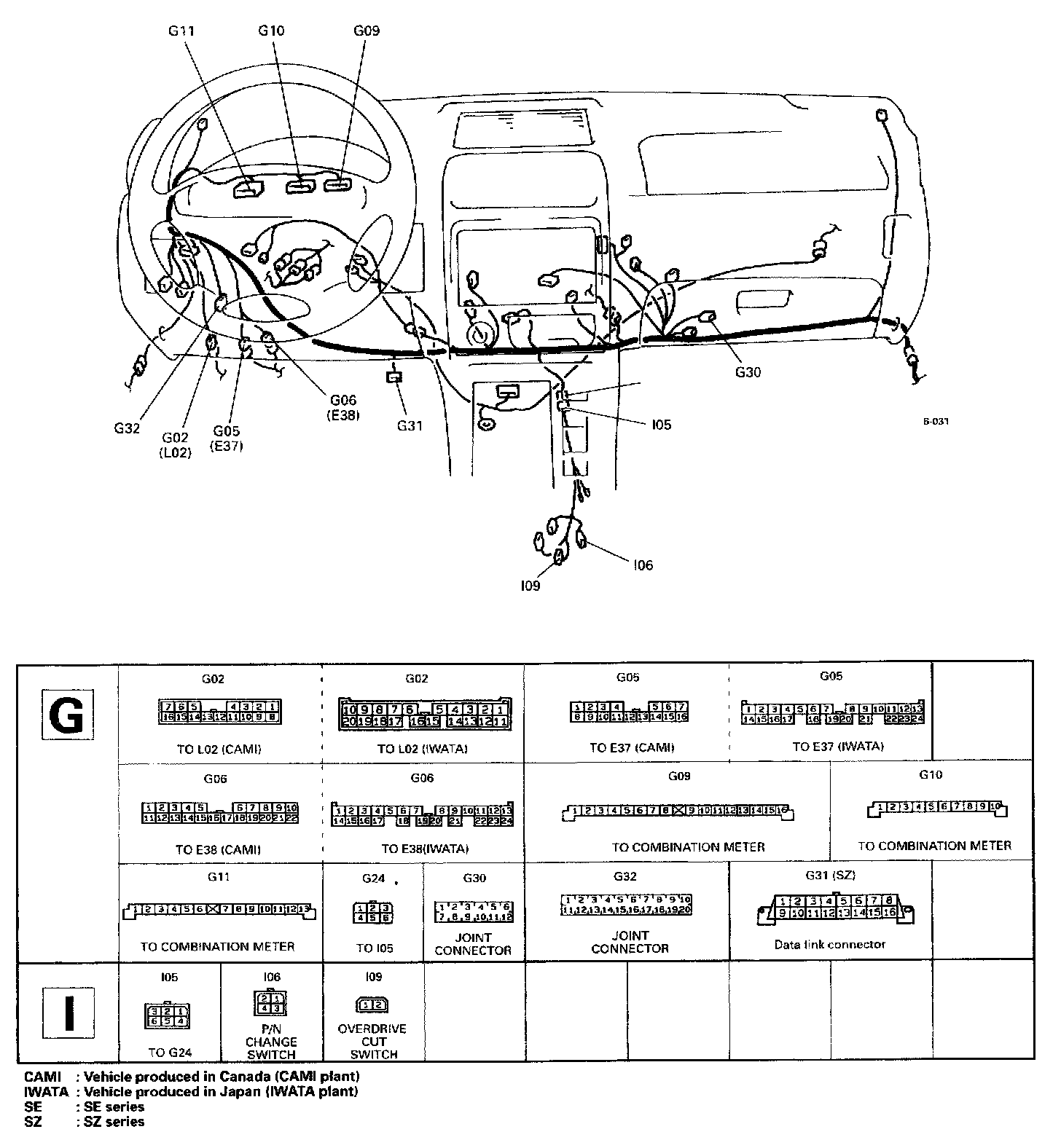

INSTRUMENT PANEL G,H&I

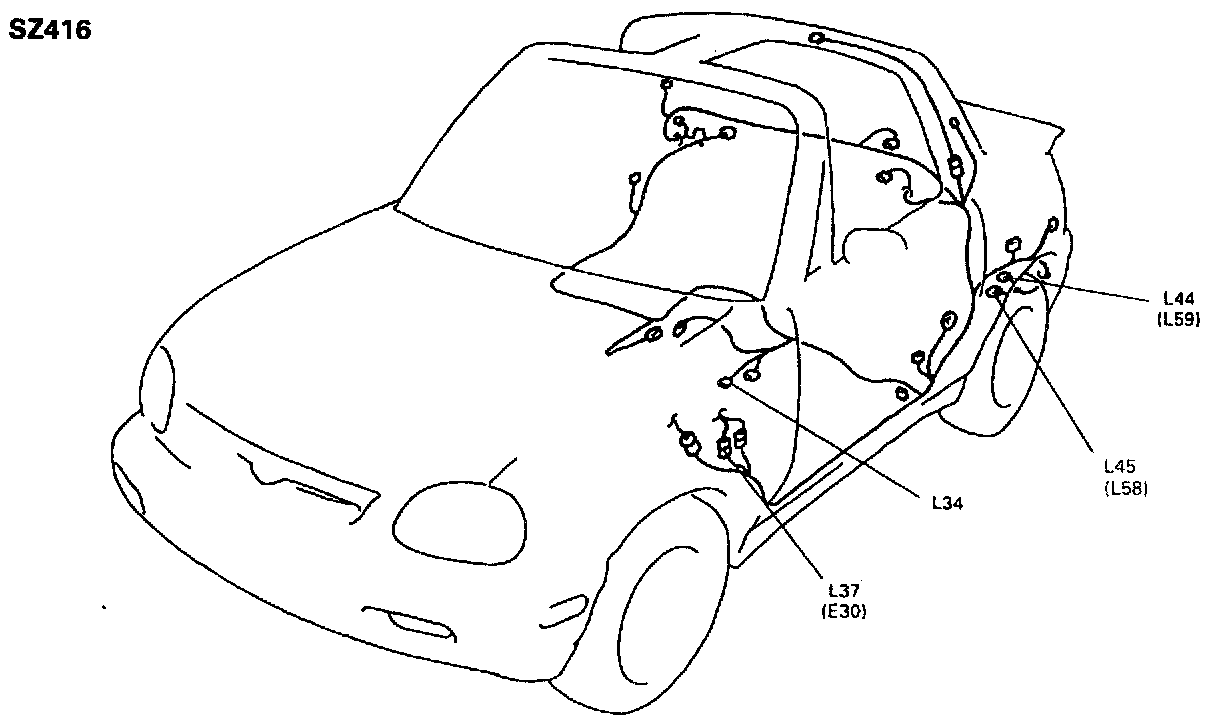

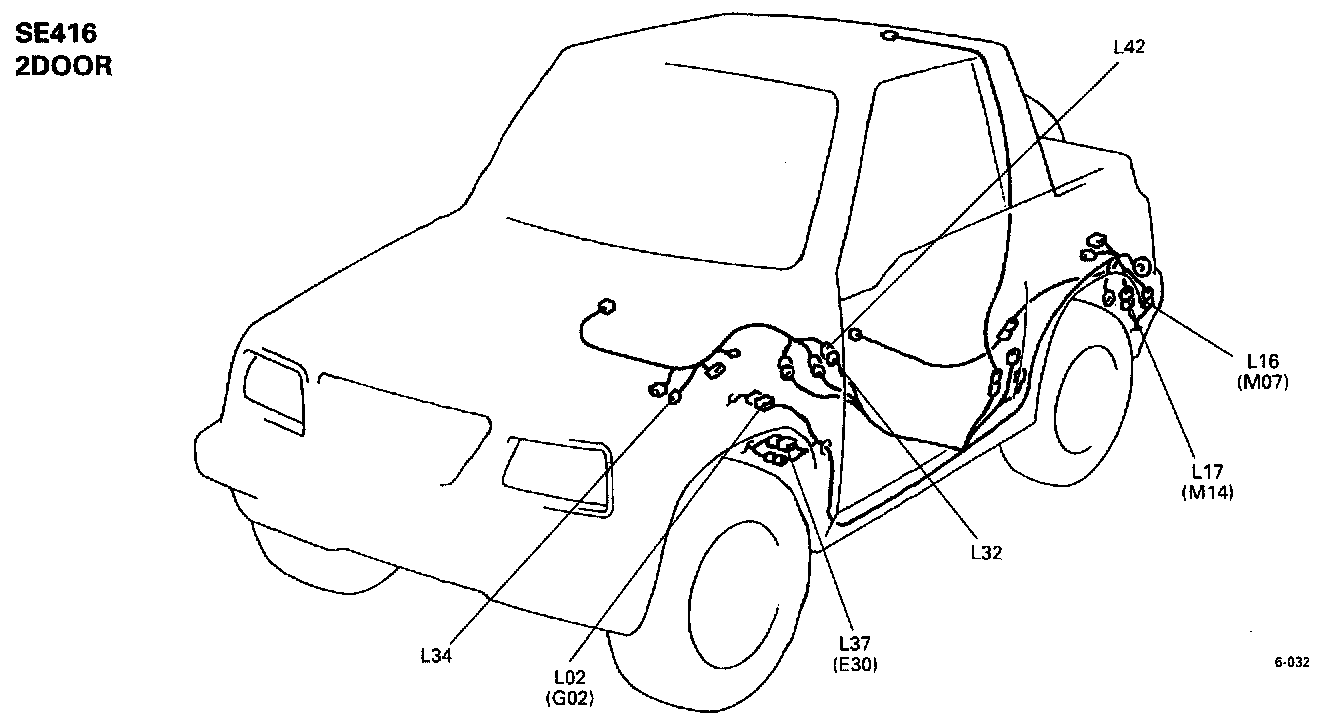

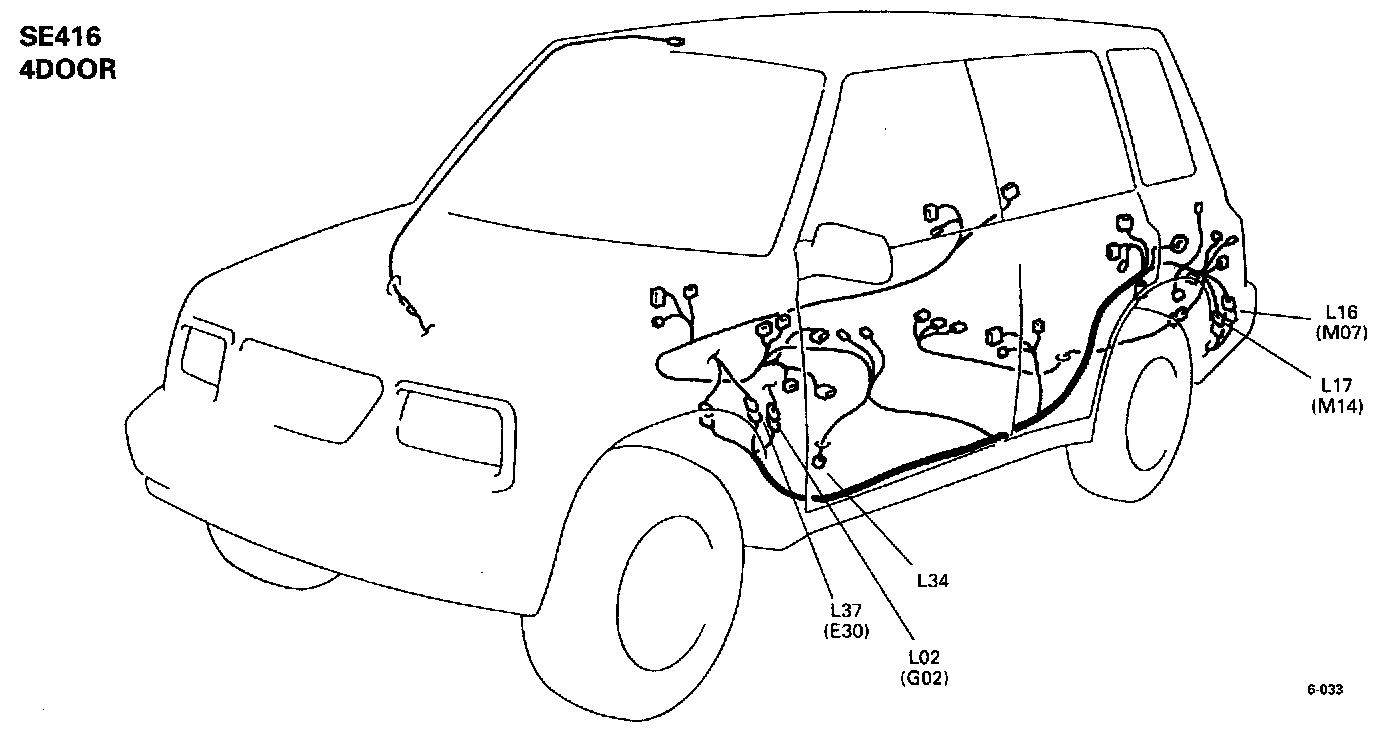

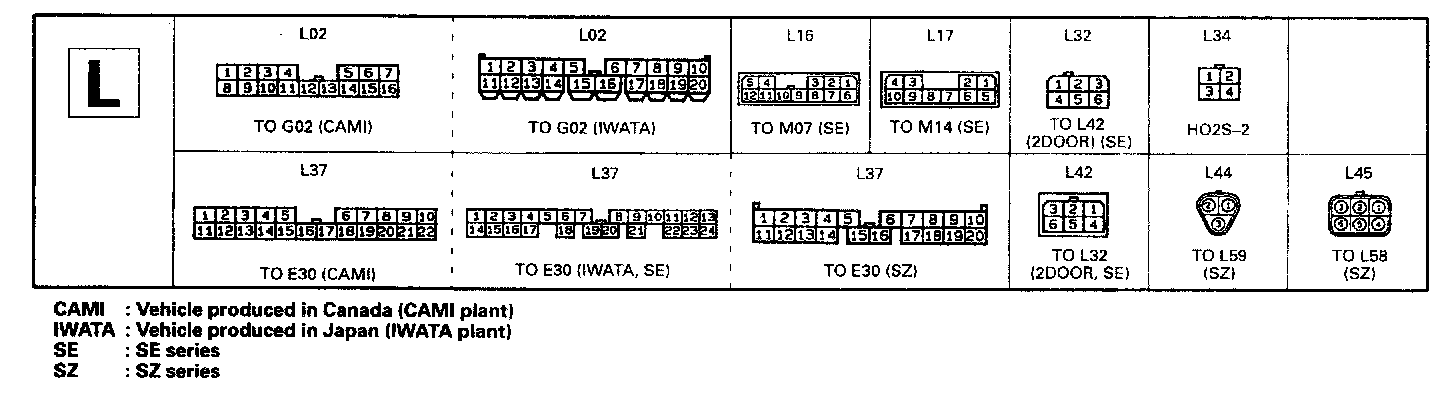

FLOOR L

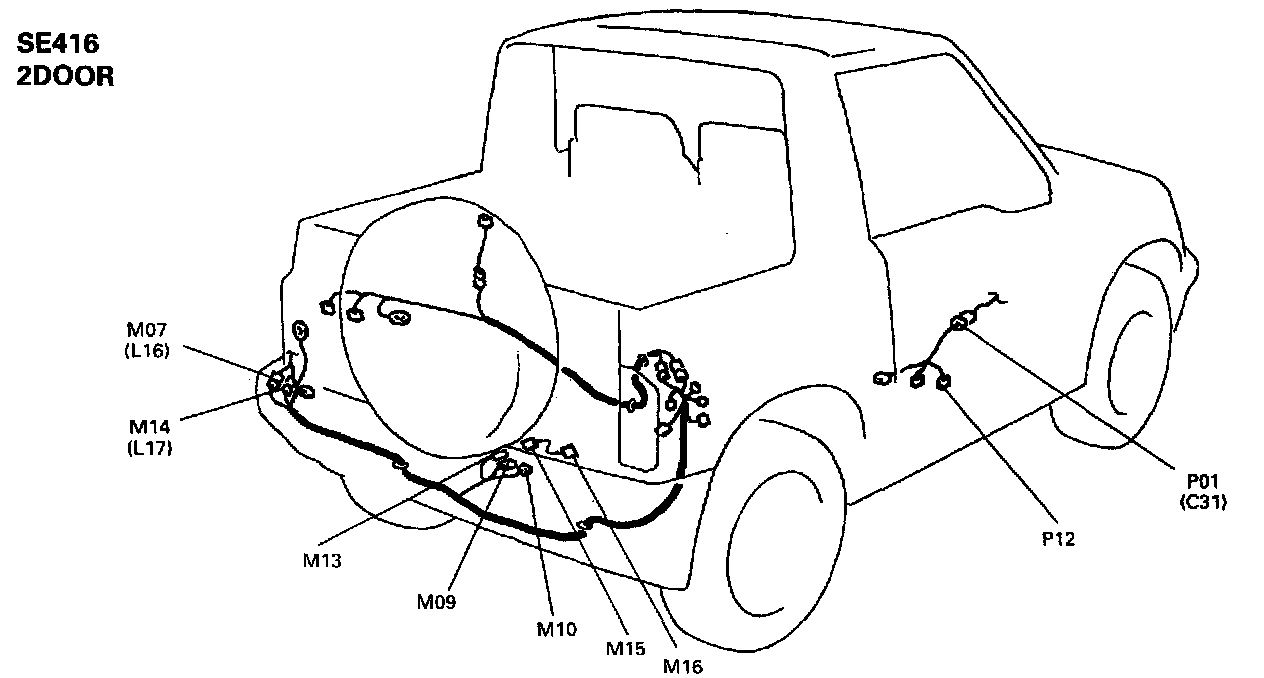

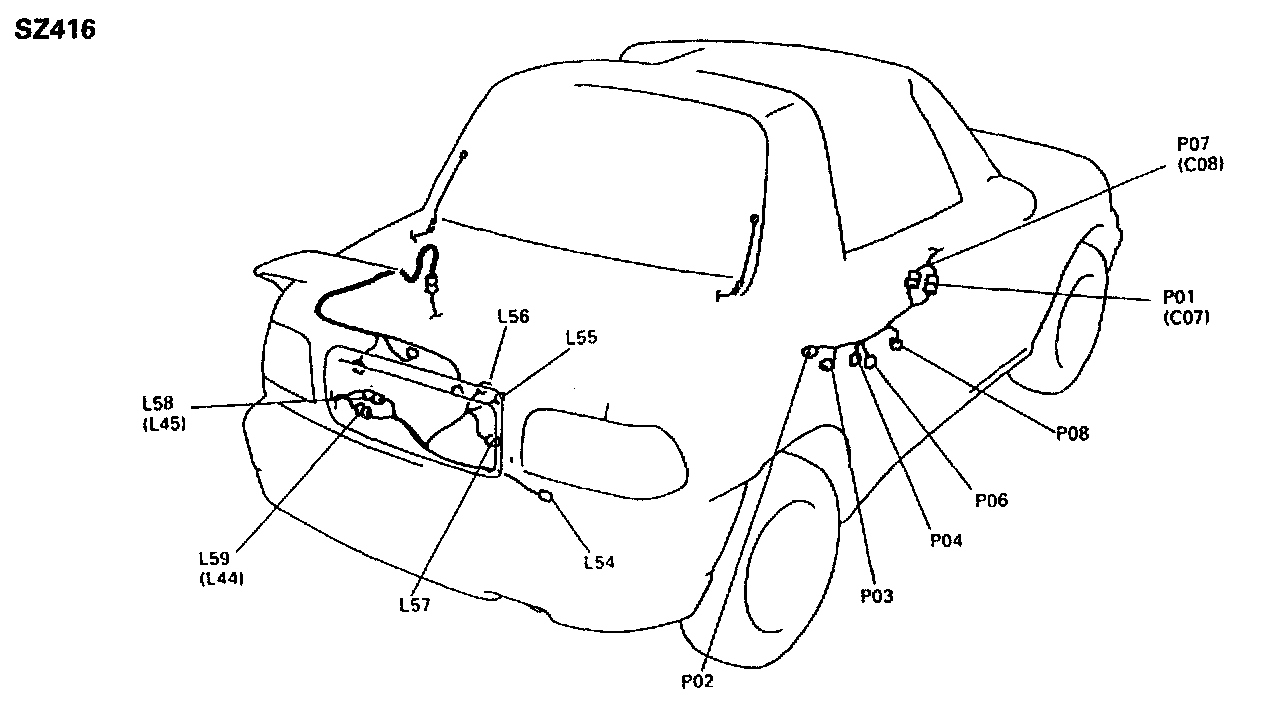

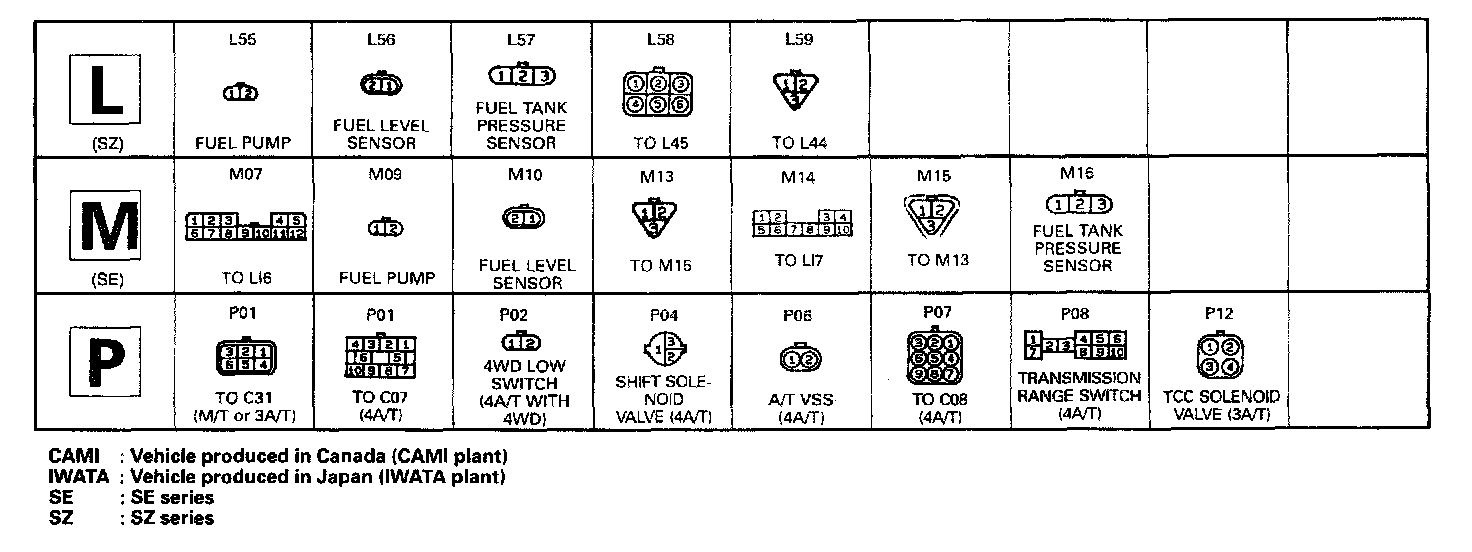

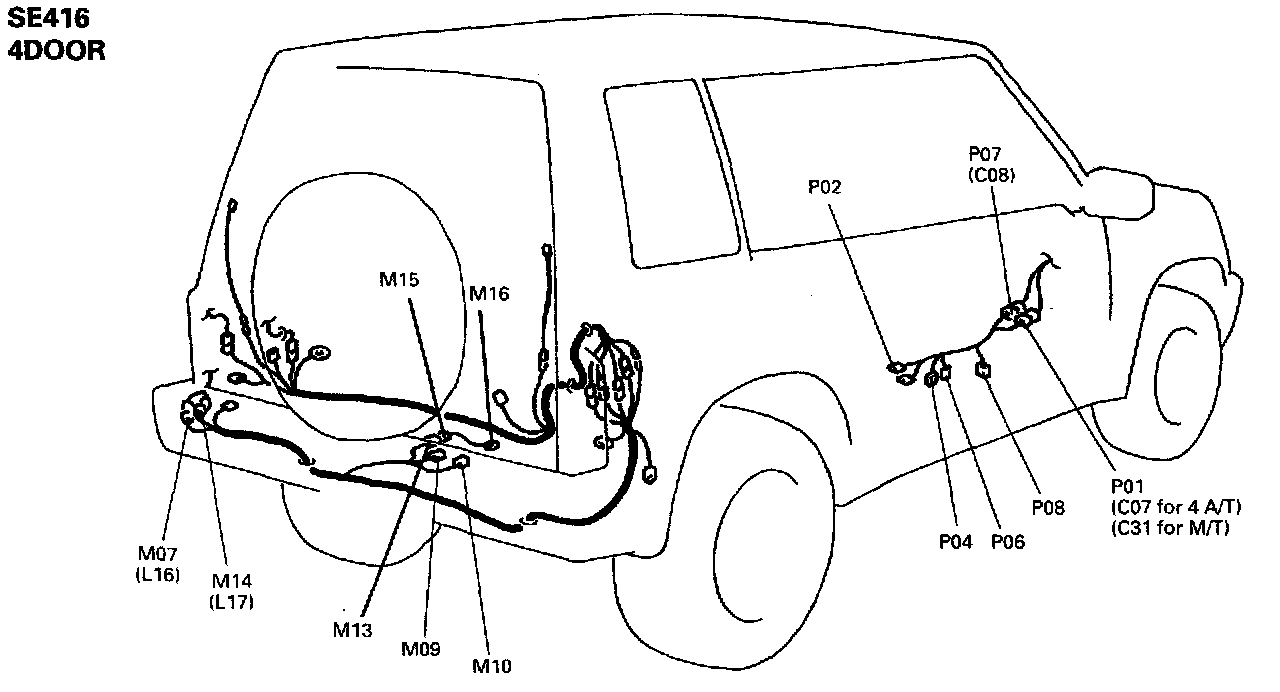

FLOOR TRANSMISSION REAR L,M & P
