TCM

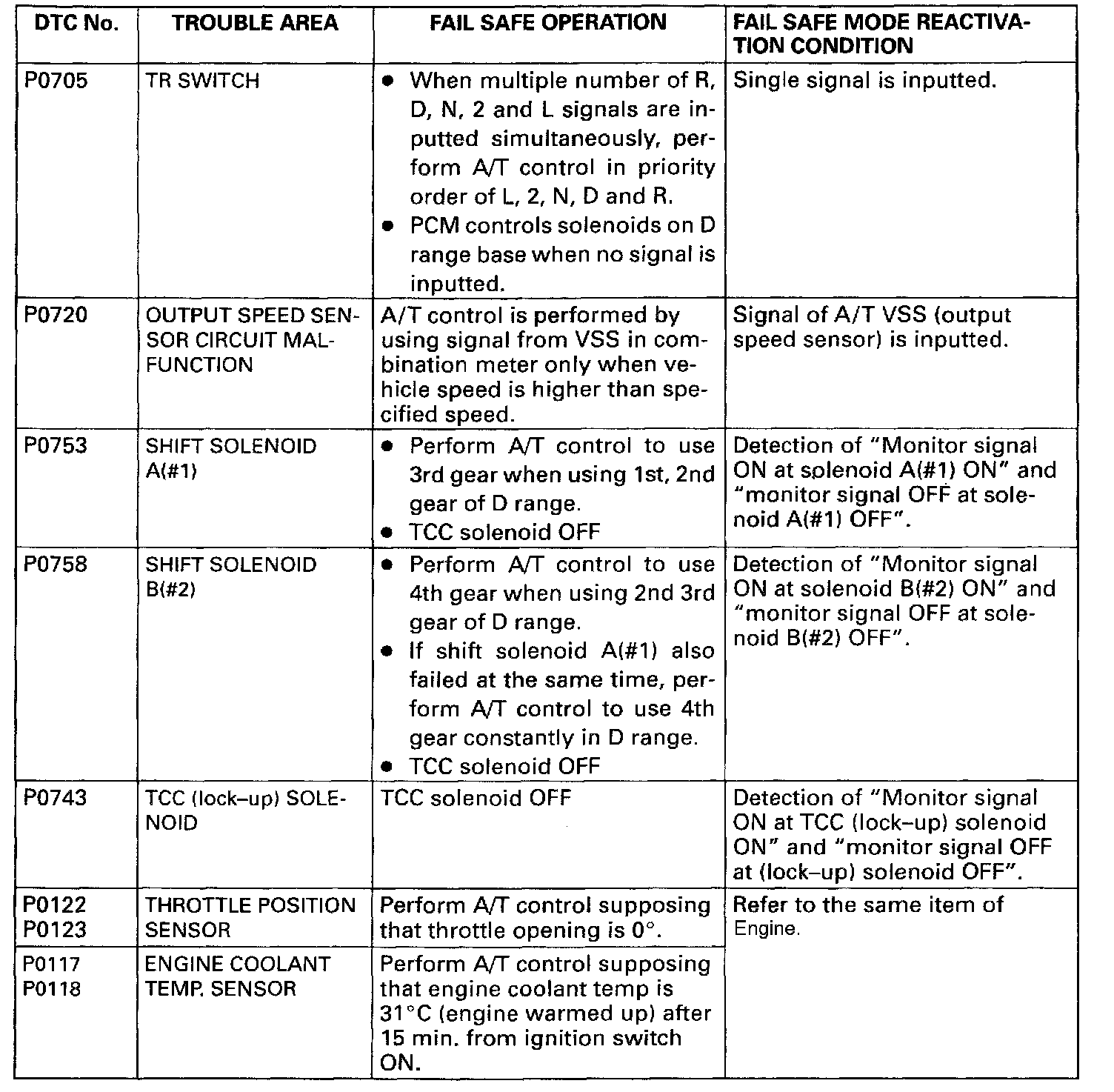

FAIL SAFE TABLE
When any of the following DTCs is detected, PCM (ECM) enters failsafe mode as long as malfunction continues to exist but that mode is canceled when PCM detects normal condition after that.
